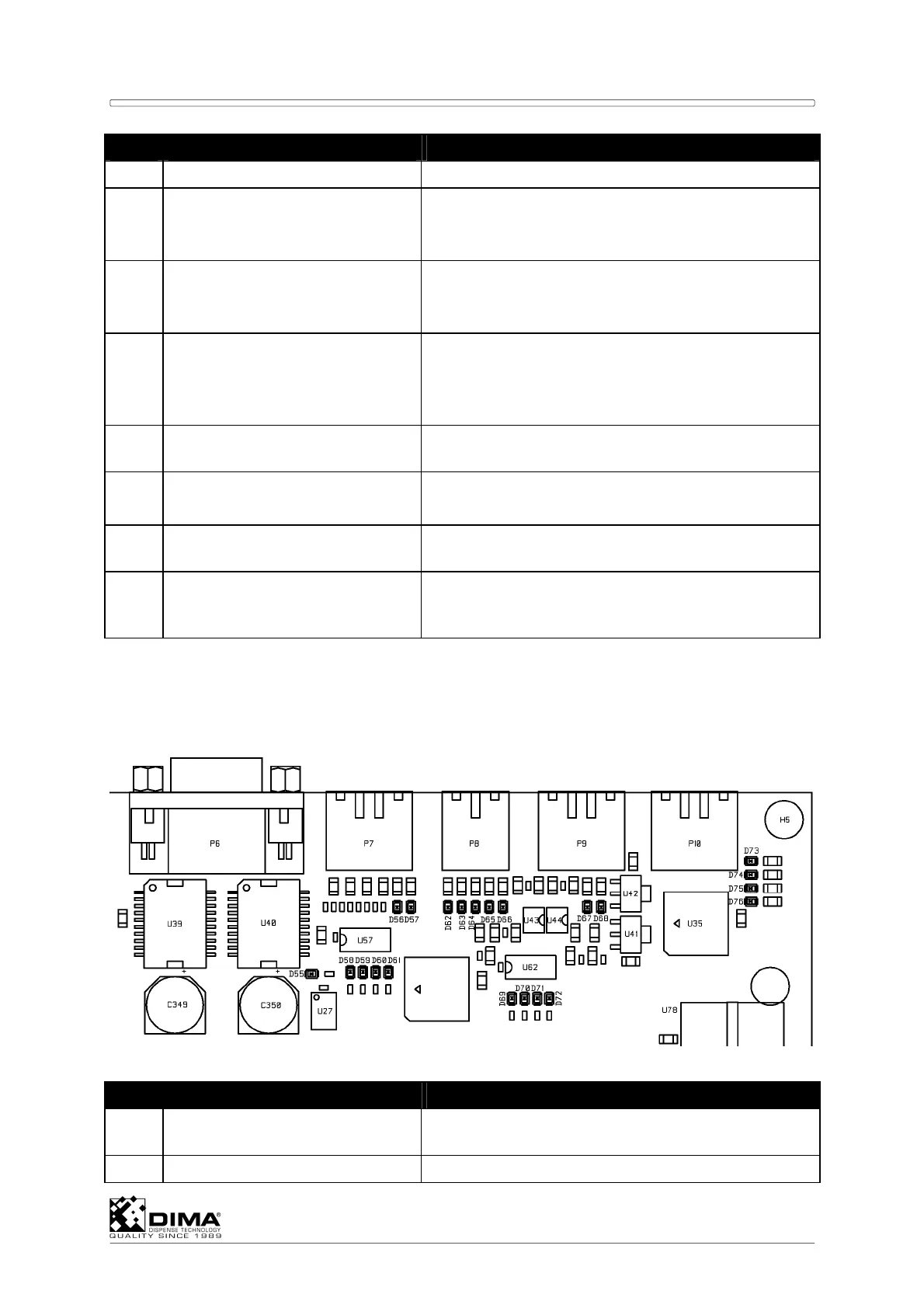

DIMA HC-200 - Leds on Upper Right Side of the EL-04873

HYBRID Coater Service Manual ver1.1 Chapter 8
59
LED Used for State
Off = Vane is interrupted (head in right X limit).
D45 Input for left limit of Y movement On = Vane is not interrupted (head not in front Y
limit).
Off = Vane is interrupted (head in front Y limit).
D46 Input for right limit of Y
movement
On = Vane is not interrupted (head not in back Y
limit).
Off = Vane is interrupted (head in back Y limit).
D47 Input for upper limit of Z-
movement
On = Sensor detects the ring on the ØZ-axis (head
in upper position).
Off = Sensor doesn’t detect the ring on the ØZ-axis
(head not in upper position).
D48 Input for bottom limit of Z-
movement.
Input is not used at this moment.
D49 Input for limit of Ø-movement On = Vane is not interrupted (head not in Ø limit).
Off = Vane is interrupted (head in Ø limit).
D50 Input for 2nd limit of Ø-
movement
Input is not used at this moment.
D51
till
D54
Inputs for conveyor limits Inputs are not used at this moment.
8.2.4 LED’s on Upper Right Side of the EL-04873
LED Used for State
D55 Feedback signal of illumination
driver.
Normally this LED is On.
D56 Output door lock front LOCK On = Coil of door lock front activated (LOCK).
