HYBRID Coater Service Manual ver1.1 Chapter 8
63
LED Used for State
D106

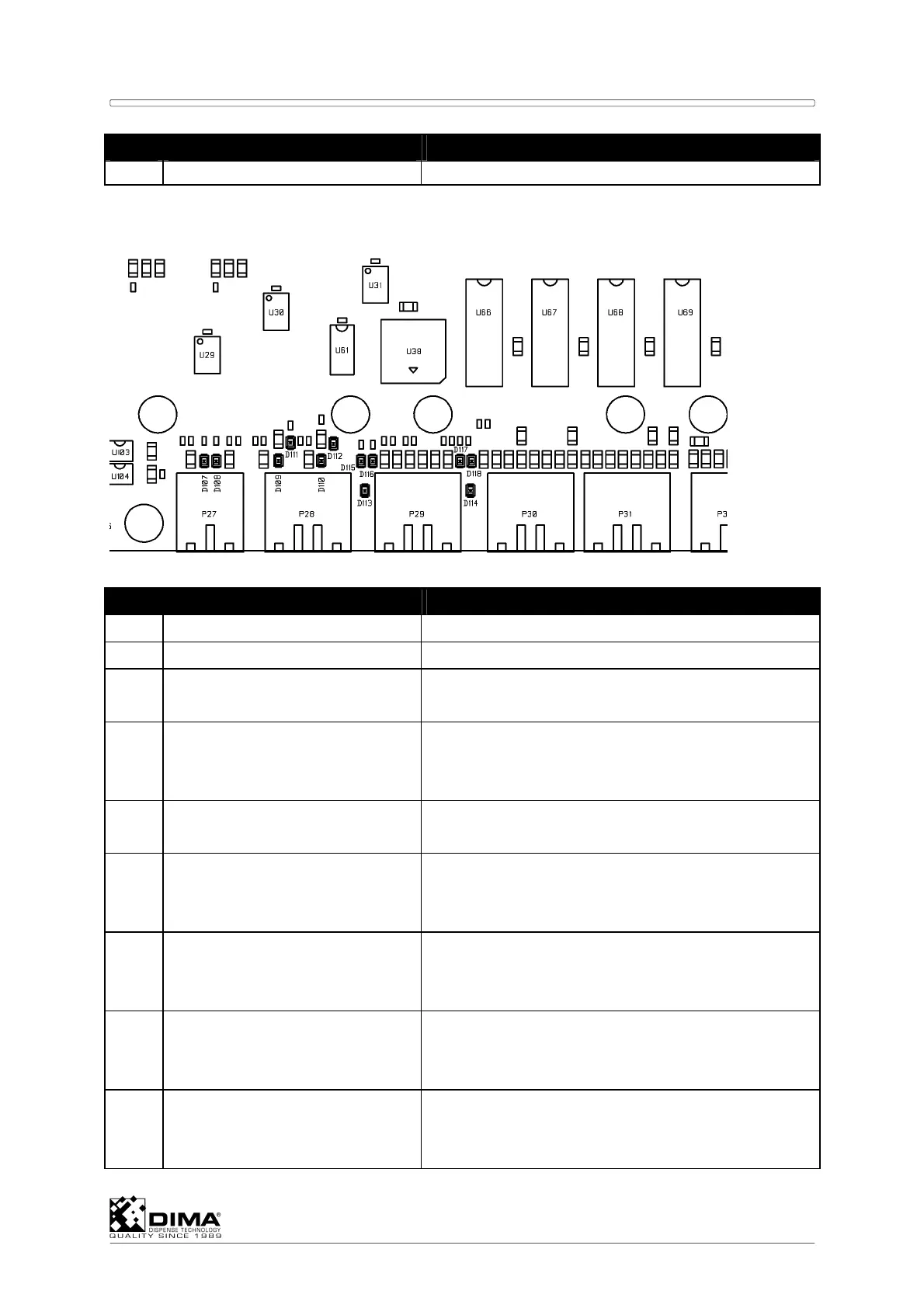

8.2.7 LED’s near Connectors P27 till P29 on the EL-04873
LED Used for State
D107 Input alignment sensor 1 Input is not used at this moment.
D108 Input alignment sensor 2 Input is not used at this moment.
D109 Output push button 1 light On = Light in push button 1 on.
Off = Light in push button 1 off.
D110 Output push button 2 light On = Light in push button 1 on.
Off = Light in push button 1 off.
Output is not used at this moment.
D111 Input push button 1 pressed On = Button 1 pressed.
Off = Button 1 not pressed.
D112 Input push button 2 pressed On = Button 2 pressed.
Off = Button 2 not pressed.
Input is not used at this moment.
D113 Output door lock 3 LOCK On = Coil of door lock 3 is activated (LOCK).
Off = Coil of door lock 3 is not activated (FREE).
Output is not used at this moment.
D114 Output door lock 4 LOCK On = Coil of door lock 4 is activated (LOCK).
Off = Coil of door lock 4 is not activated (FREE).
Output is not used at this moment.
D115 Input CLOSED of door lock 3 On = Door lock 3 closed.
Off = Door lock 3 not closed.
Input is not used at this moment.
