9.3 Replacing the Fiducial Camera at a HC-100
NOTE: In order to be able to dismantle the fiducial camera it is better to remove all the
tools.

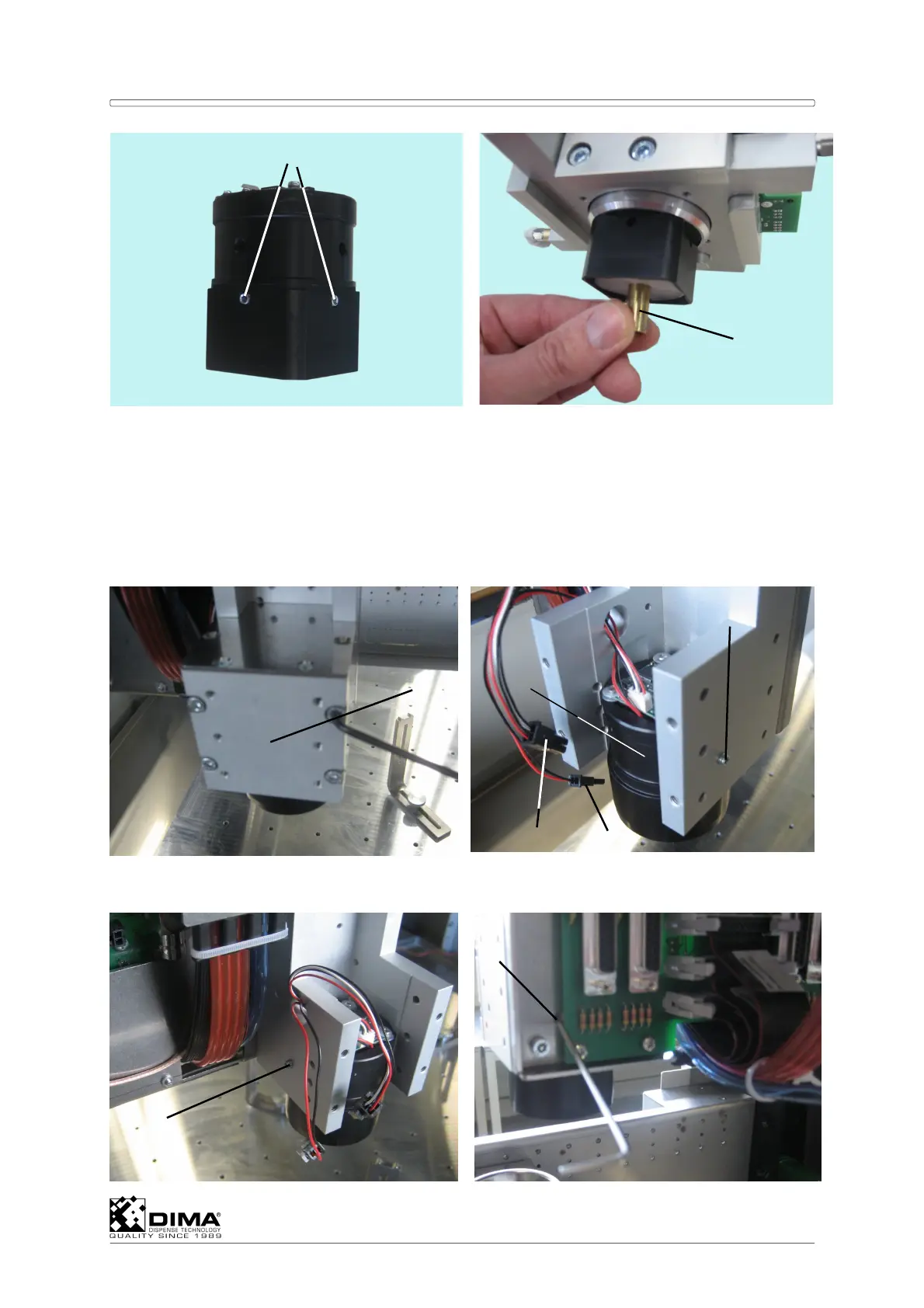

A Remove the cover (#1) of the camera.
B Loosen the locking screw (#2) on the right hand side of the Coating Head and undo both
connectors (# 3 and #4) on the left side of the camera (#5).
C Loosen the locking screw (#5) on the left side of the Coating Head.
D Loosen the locking screw (#6) on the rear of the Coating Head just beside the PCB.
1
2
3
4
5
5
6
1
2
