DIMA HC-200 - Electrical Compartment in Front

HYBRID Coater Service Manual ver1.1 Chapter 3
15
= Electrical Wires
3.5 Electrical Compartment in Front
This compartment contains:
 Opening through which the hose for external air supply enters the machine. This hose is
connected to a pressure controller and air filter/ water separator unit.

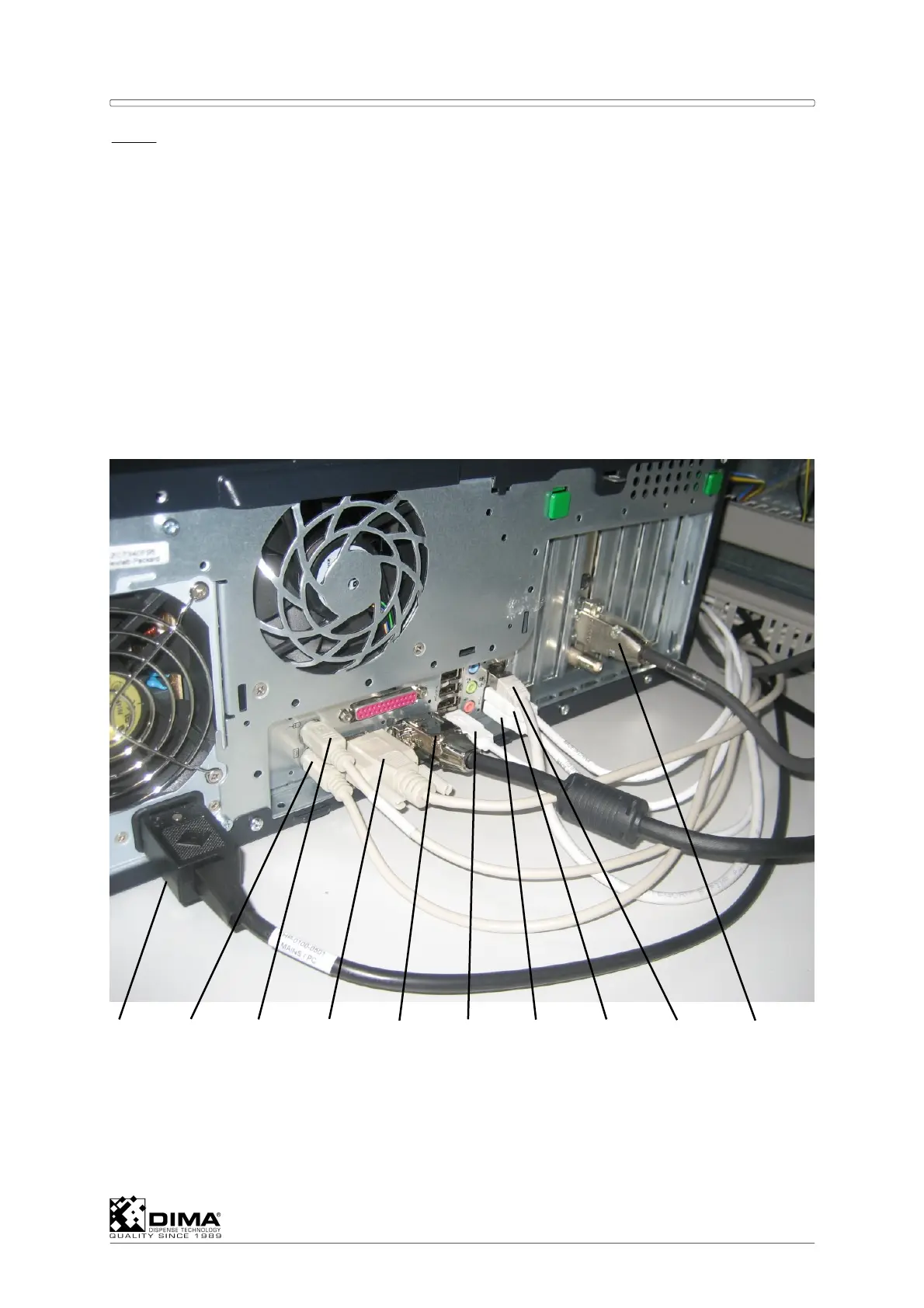

 Personal Computer with frame grabber, USB and/or RS232 interface to EL-04873
controller, display, keyboard and trackball.
 Electro panel with 230VAC circuit and power supplies for 24Volt and 48Volt. Also a
24VAC transformer is present feeding the control circuit with On-Off switches and
Emergency Stops (See wiring diagrams HC-0200-0115 and HC-0200-0215).
 Flow detection switch on the air exhaust channel.
For spare parts of this part see wiring diagrams.
1 2 3 4 5 6 7 8 9 10
