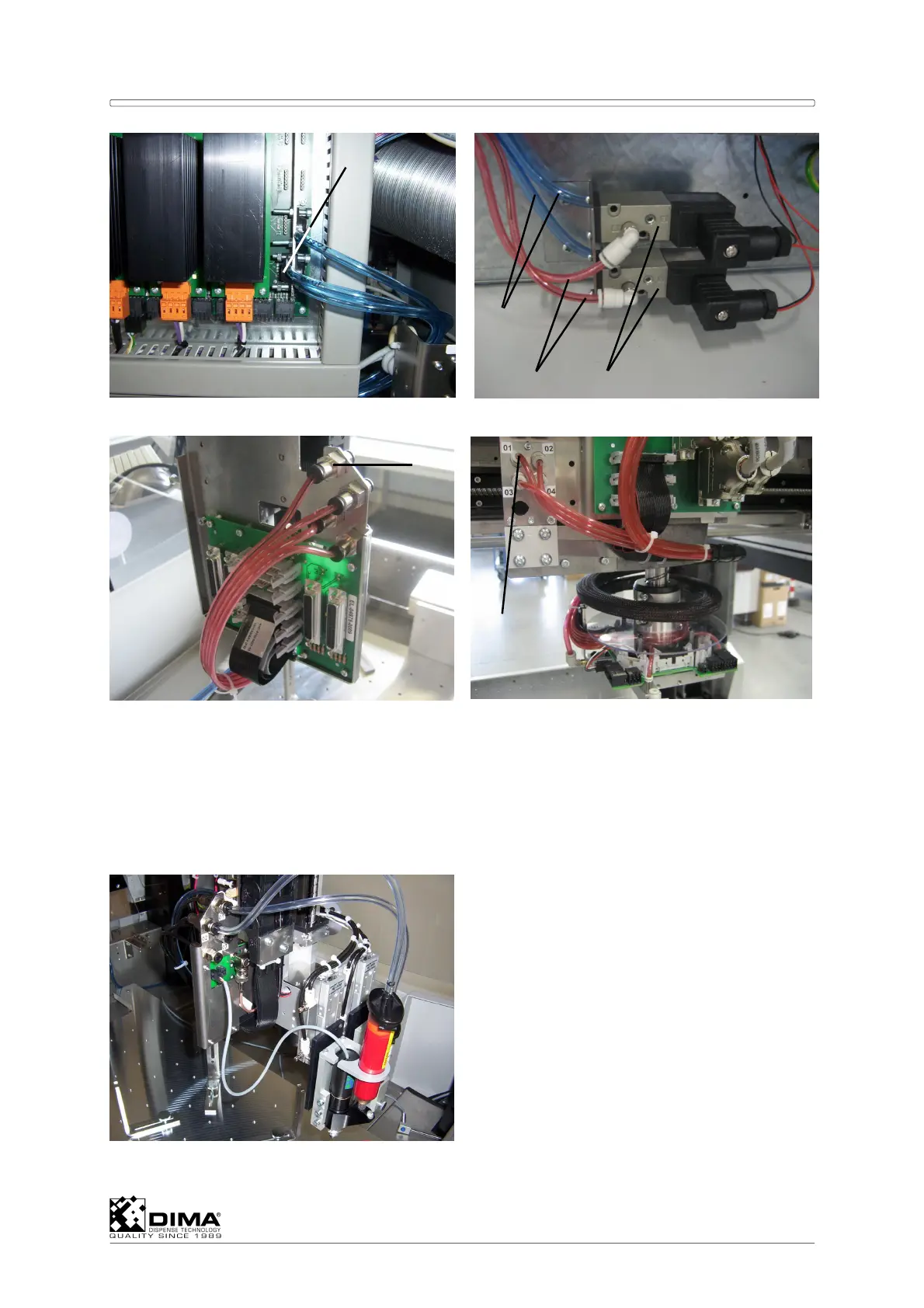

C The short end runs to the inlet (#9) on the back of the solenoid valve (#11).
rear of coating head on HC-100 rear of coating had on HC-200
D The outlet (#10) of this solenoid valve (#11) is connected via one of the air lines in the
fixed duct and the flexible duct all the way to the first interconnection (#12) on the coating
head. Keep the order of these air lines leading from the solenoid valves the same all the
way to the coating head and further to the intended tool! For convenience they are
numbered on the interconnection plate and on the coating head. Till here all is similar
with the HC-100 and the HC-200.
NOTE: The HC-1051 is normally used for
atomizing air and runs through the
smaller air lines to the coating
head. When no atomizing air is
needed it can be used for other
purposes. The HC-1050 is normally
used to pressure a tank or cartridge
and runs from the outlet of the
solenoid valve directly to the tank or
cartridge inside working area.
9
10
12
11
8
12
