Appendix G HYBRID Coater Service Manual ver1.1
162
Some I/O is dedicated for the machine. Other are present for present and future options.
Some of this last I/O is flexible, which means that it can be used as an input which function is
determined by the software running on the Personal Computer. See Appendix I for more
information.

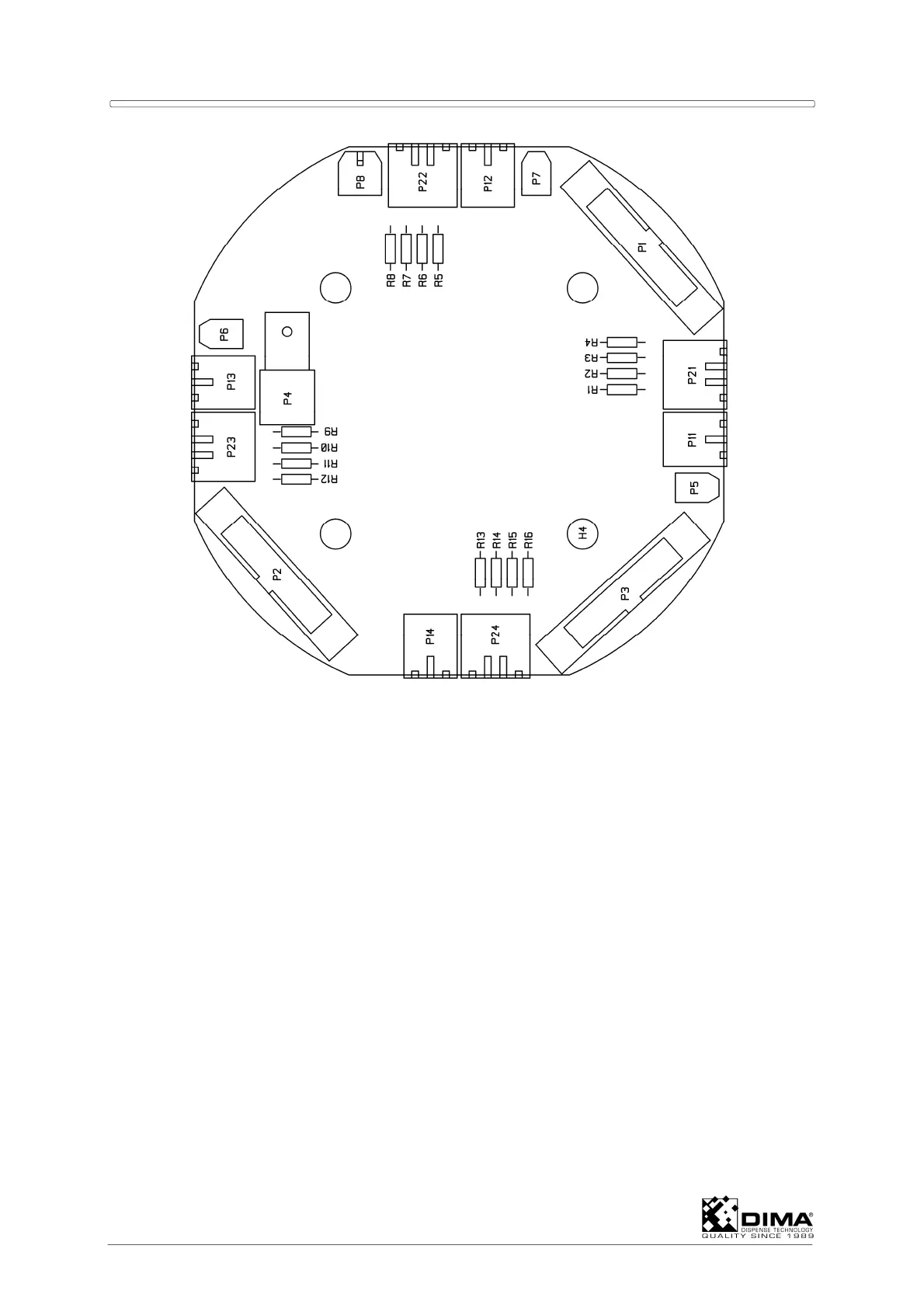

CONNECTORS P1, P2 AND P3 TO CONNECTION PCB’S
These connectors are present to connect signals to the EL-04875 Connection PCB.
See wiring diagrams MHC-0200-0108 for more information.
CONNECTOR P4 FOR THE CAMERA
This connector is used for connecting the video signal of the camera to the EL-04875
Connection PCB.
See wiring diagrams MHC-0200-0108 for more information.
CONNECTORS P5 AND P6 FOR DISPENSE MOTORS OR ROTARY VALVES
These connectors are present for above mentioned option.
