HYBRID Coater Service Manual ver1.1 Chapter 4
29

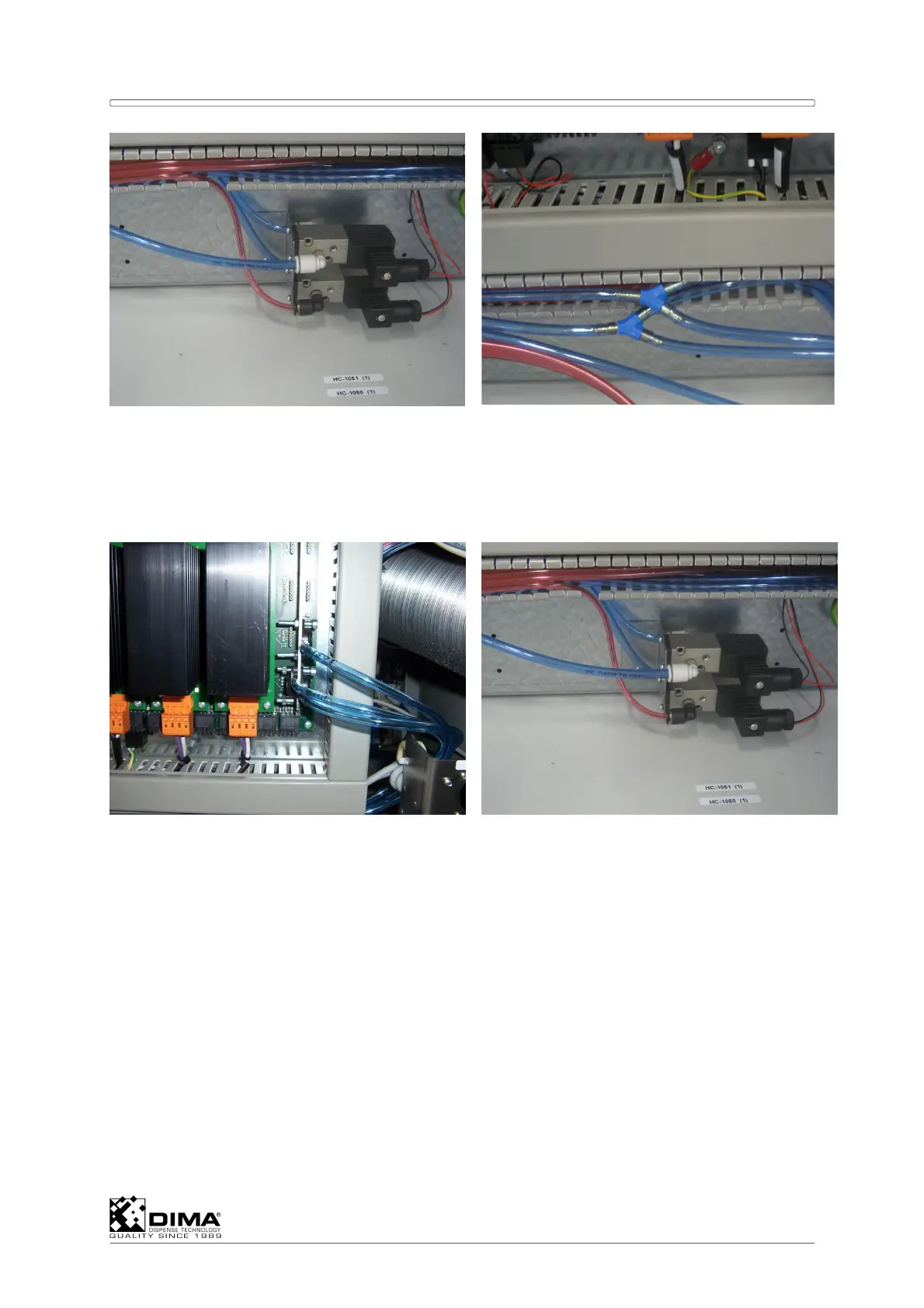

3. Mount the Solenoid Valve with the bracket at the rear in the next free position. If there is
a free spot on an already placed bracket, you can remove the valve from its bracket and
mount in on that bracket.
4. Connect the output air line of the Pressure Reducing Valve to the Y coupling. Connect
the short air line from the Y coupling to the input of the Solenoid Valve (at the back of the
valve).
5. Mount the Pressure Sensor (Transducer) onto the bracket at the right hand side on the
large PCB. On the first free position from the bottom. Use the bolts, rings and nuts
supplied with it. The other air line from the Y coupling goes to this Pressure Sensor.
6. In the cable duct above the Solenoid Valves you will find four red air lines. Take the free
one that is connected to the desired tool on the coating head and connect this to the free
position (outlet on front) on the Solenoid Valve.
