M4000 Insulation Analyzer User Guide
72A-1230 Rev. F 4-39
July 22, 2005
Thermal Profile
The Thermal Profile diagnostic displays internal and external temperatures
measured by the M4100.
NOTE To monitor external parameters the Remote Sensor must be connected to
the M4100.
To run a Thermal Profile:
1. Select Thermal Profile from the Diagnostics pull-down menu.
2. Press F2.
As the profile is running, continuously updated temperature and humidity
values are displayed on the screen, as exemplified in Figure 4.19.

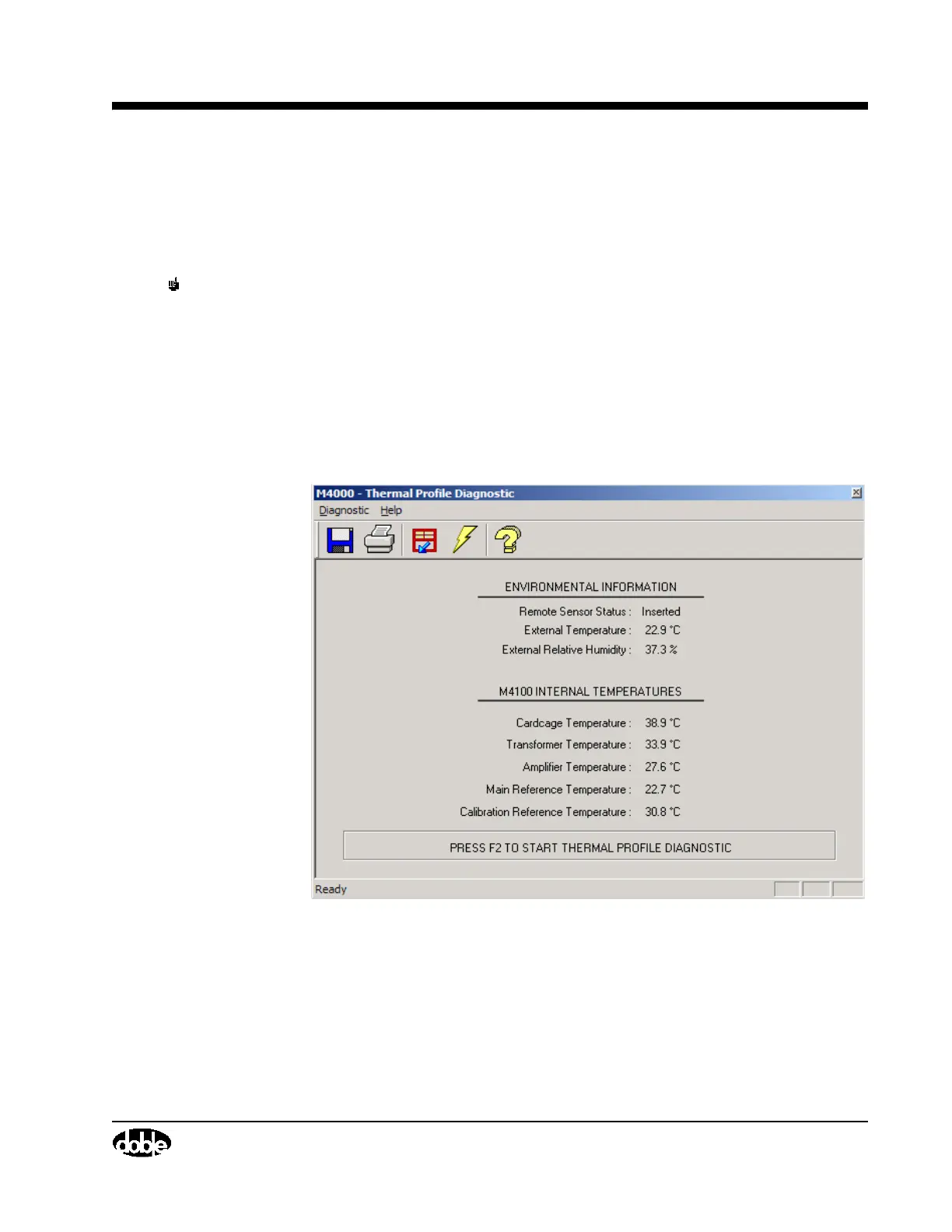

Figure 4.19 Thermal Profile Results
3. Stop the monitoring by pressing F4 or ESC.
Once the update process is stopped, results can be printed or saved to a file via
the File menu.
