M4000 Insulation Analyzer User Guide
72A-1230 Rev. F 1-9
July 22, 2005

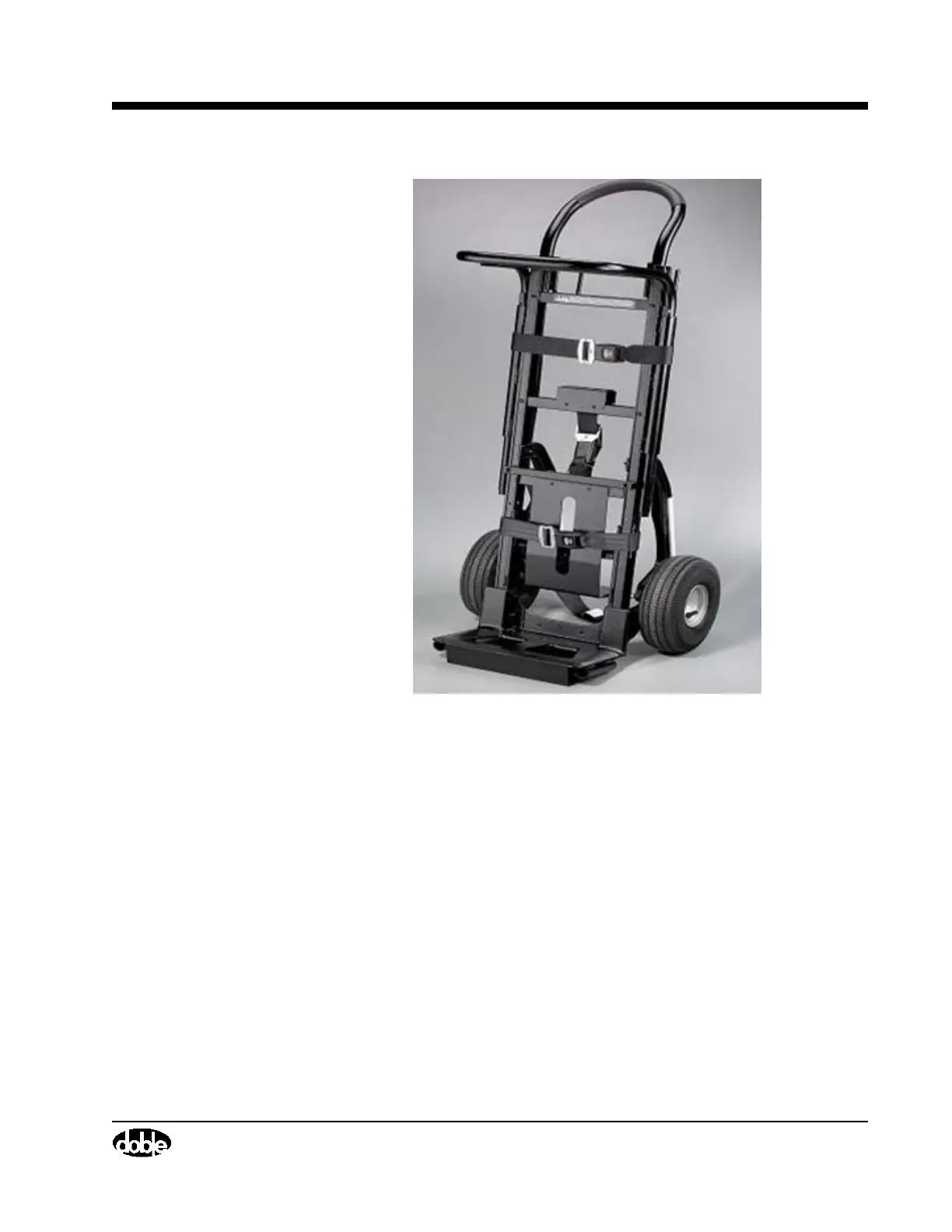

Figure 1.7 M4300 Transport
Doble Test Assistant (DTA) Software
Optional Doble Test Assistant
®
(DTA) software provides standardized
apparatus test procedures and templates, data management, and optional
expert system software for insulation condition assessment. See Chapters 2
and 3 for further details.
M4110 Leakage Reactance Interface
This optional interface contains the circuitry necessary to convert the voltage
and current, measured during a Leakage Reactance test on a transformer, into
a form that can be measured by the M4100 Instrument. It also contains a
variac so that the proper test voltage can be obtained. The Leakage Reactance
test cannot be made without either this Interface or the M4130 Leakage
Reactance Module, and the accompanying software.
