M4000 Insulation Analyzer User Guide
72A-1230 Rev. F 1-7
July 22, 2005
• The M4200c has a built in USB port.
• Data may be stored on an internal hard drive or on a 3 1/2 - inch floppy
disk via the floppy disk drive located in the front of the controller.
Third-Party Controller
Certain PC’s using a Windows-based operating system available from other
suppliers can be used as a system controller in lieu of the M4200c controller.
These alternative machines can be used to control M4000 operations.
M4000 Software
Software provided with the M4200c or available to be loaded onto a Third-
Party Controller includes a program to run the M4000 Insulation Analyzer,
and if desired, the optional Leakage Reactance Test, External Reference Test,
and Doble Test Assistant (DTA) programs. For more information, refer to
Chapter 2.
Optional M4150 And M4151 Field Calibration References
The purpose of the M4150 and M4151 Field Calibration References are to
provide a means of obtaining System Status, Calibration Verification, and
Field Recalibration Tests of the M4100 instrument in the field. (For an
explanation of these tests, refer to ”Running Diagnostics” on page 4-21). The
Field Calibration Reference is mounted in the front panel of the M4100
instrument.

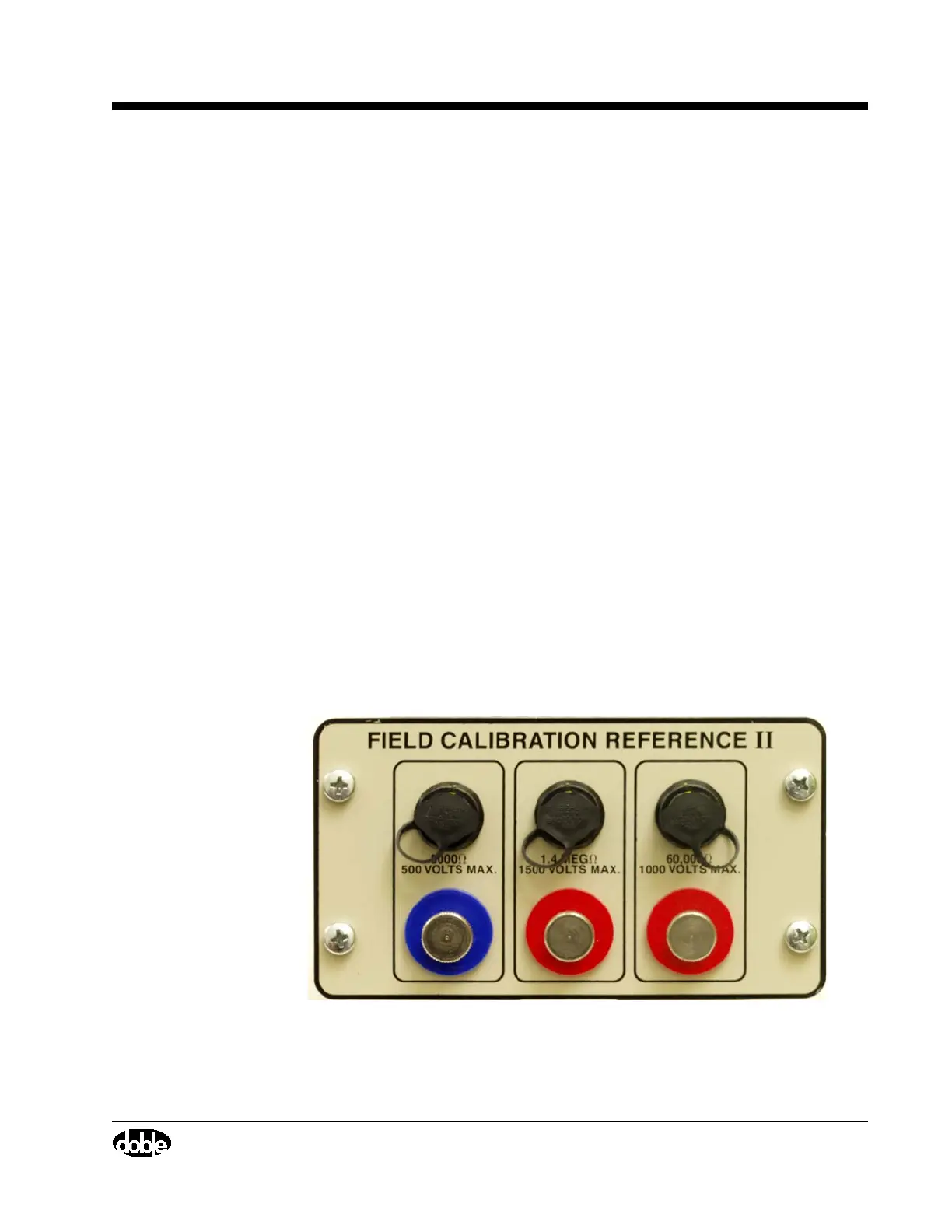

Figure 1.5 M4151 Field Calibration Reference
