M4200c Controller
1-6 72A-1230 Rev. F
July 22, 2005
• The keyboard is a standard notebook-type keyboard with a flexible
skin around the keys to prevent dirt and moisture from contaminating
the internal electronics and causing failure of the keyboard. An
external keyboard may be used in place of this keyboard. Access to the
external keyboard connector is to the right of the video connector
behind the access door on the left hand side of the M4200c Controller.

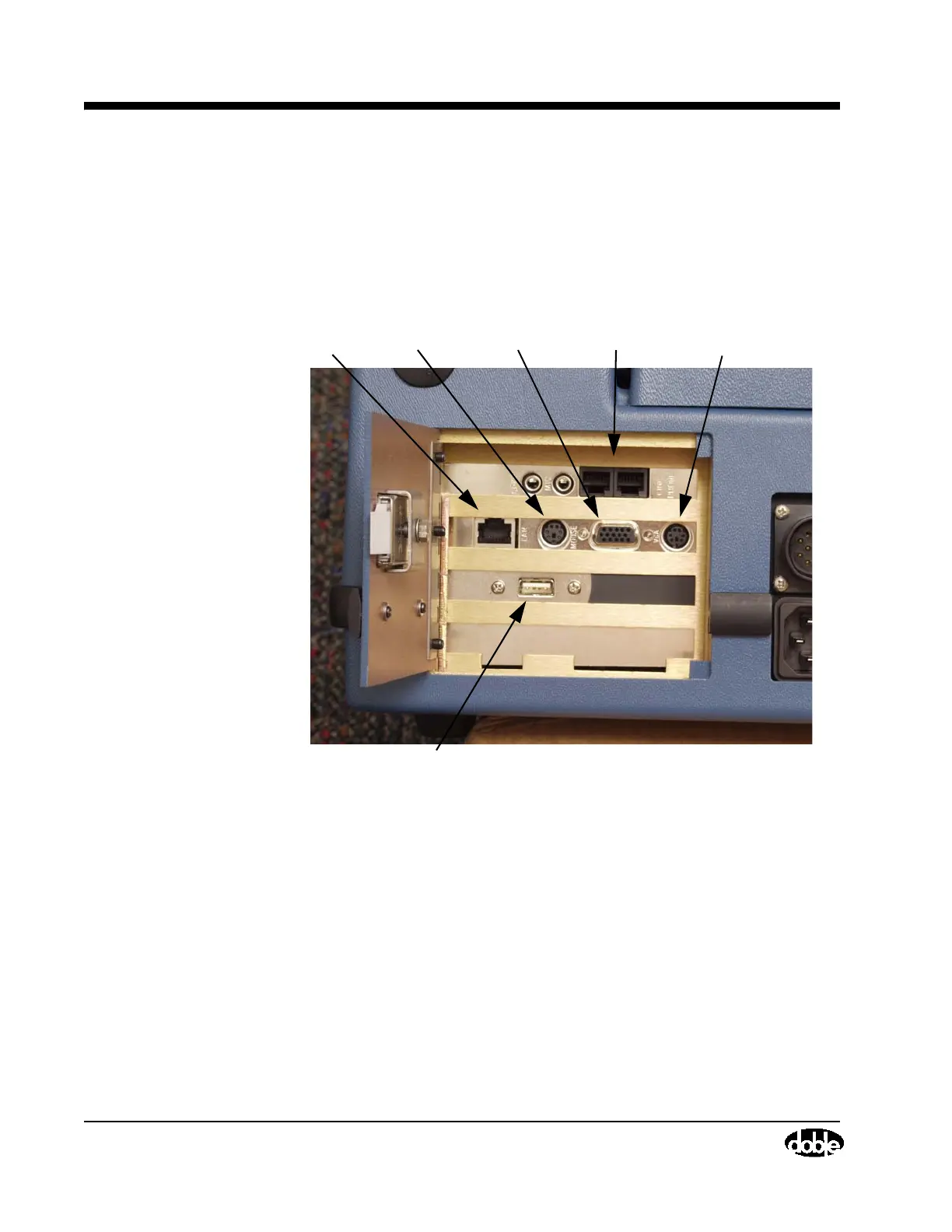

Figure 1.4 M4200c Controller External Connections
• The M4200c has a pointer device installed below the keyboard on the
front panel to allow for the use of mouse control of the display cursor.
A port on the left-hand side of the M4200c allows for the use of an
external, serial mouse.
• The M4200c has a built-in 200 dot per inch (dpi) graphic printer/
plotter. Paper for the printer/plotter is an uncoated thermal FAX paper
provided by Doble.
• The M4200c is equipped with an internal FAX/Modem board that may
be used to transfer data when used with the optional Doble Test
Assistant (DTA) program.
• The M4200c has a built in ethernet connection.
LAN Ext. Mouse Ext. Monitor Modem Ext. Keyboard
USB
