Storage and Moving Mode
1-10 72A-1230 Rev. F
July 22, 2005
When using this interface, the standard M4000 safety switch and safety strobe
are used. The necessary current and voltage cables are provided for connection
to the transformer, along with the necessary software, so that this becomes a
self-contained kit for this test. The user is only limited by the size of the variac
provided.

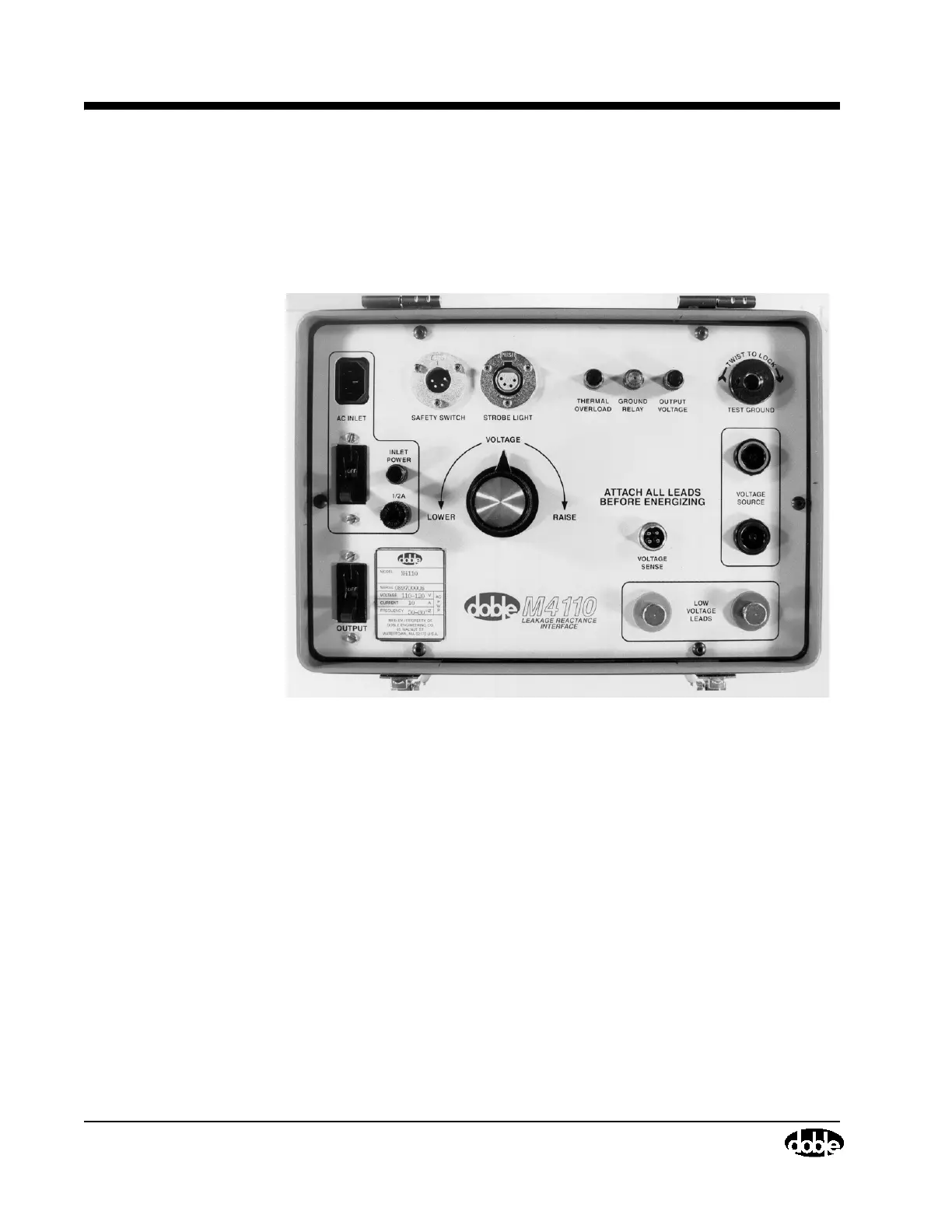

Figure 1.8 M4110 Leakage Reactance Interface
Operating with the M4300 Transport
The M4000 Insulation Analyzer is designed to be assembled on the M4300
Transport for storage, moving, and testing. When the M4000 is used with the
M4300 Transport, it can be set up in the following modes:
• Storage and Moving Mode
• Testing Mode
Storage and Moving Mode
The storage and moving mode will allow the user to transport and store the
M4000
Insulation Analyzer. The M4300 Transport is designed so that all the
components of the M4000 fit in a single, packaged unit (Figure 1.9).
