M4000 Insulation Analyzer User Guide
72A-1230 Rev. F 1-11
July 22, 2005

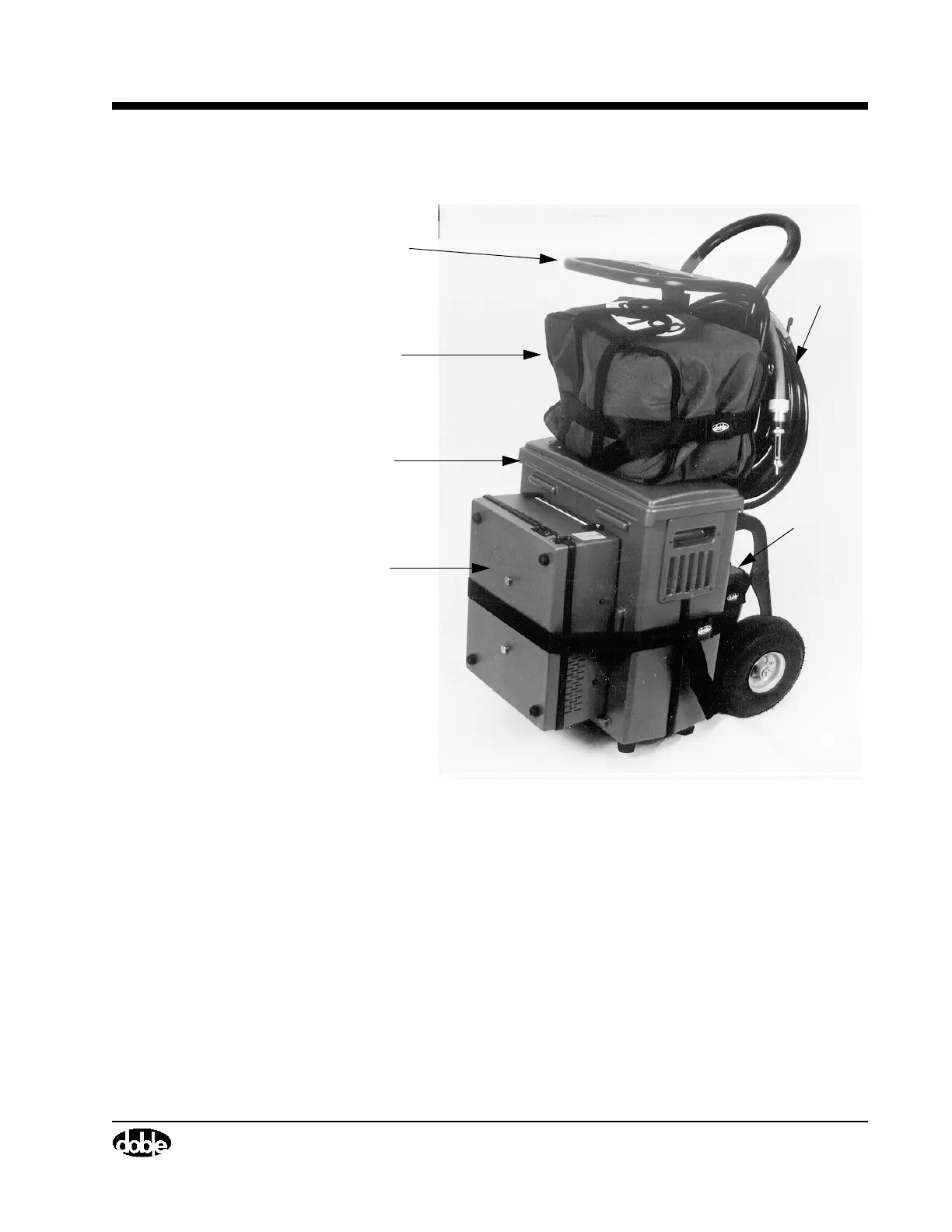

Figure 1.9 M4000 Insulation Analyzer in Storage Mode
The recommended assembly steps for the Storage and Moving Mode is as
follows:
1. Remove the M4200c Controller Support frame from the M4300 Transport.
Lay the M4300 Transport down on its back, on a level surface so that the
wheels and handle touch the surface.
2. Verify that the cover is installed on the M4100 Instrument front panel.
Position the M4100 Instrument on the M4300 Transport as shown in the
above picture.
Oil Test
Cell
High
Voltage
Cable
Controller
Support Frame
Cable Carry
Bag
M4100
Instrument
M4200c
Controller
To Next Page
