Doble Standard Turns Ratio Capacitor
1-8 72A-1230 Rev. F
July 22, 2005
Doble Standard Turns Ratio Capacitor
This is an optional small portable capacitor that can be energized at 10 kV for
performing turns ratio tests at high voltages with the M4000.

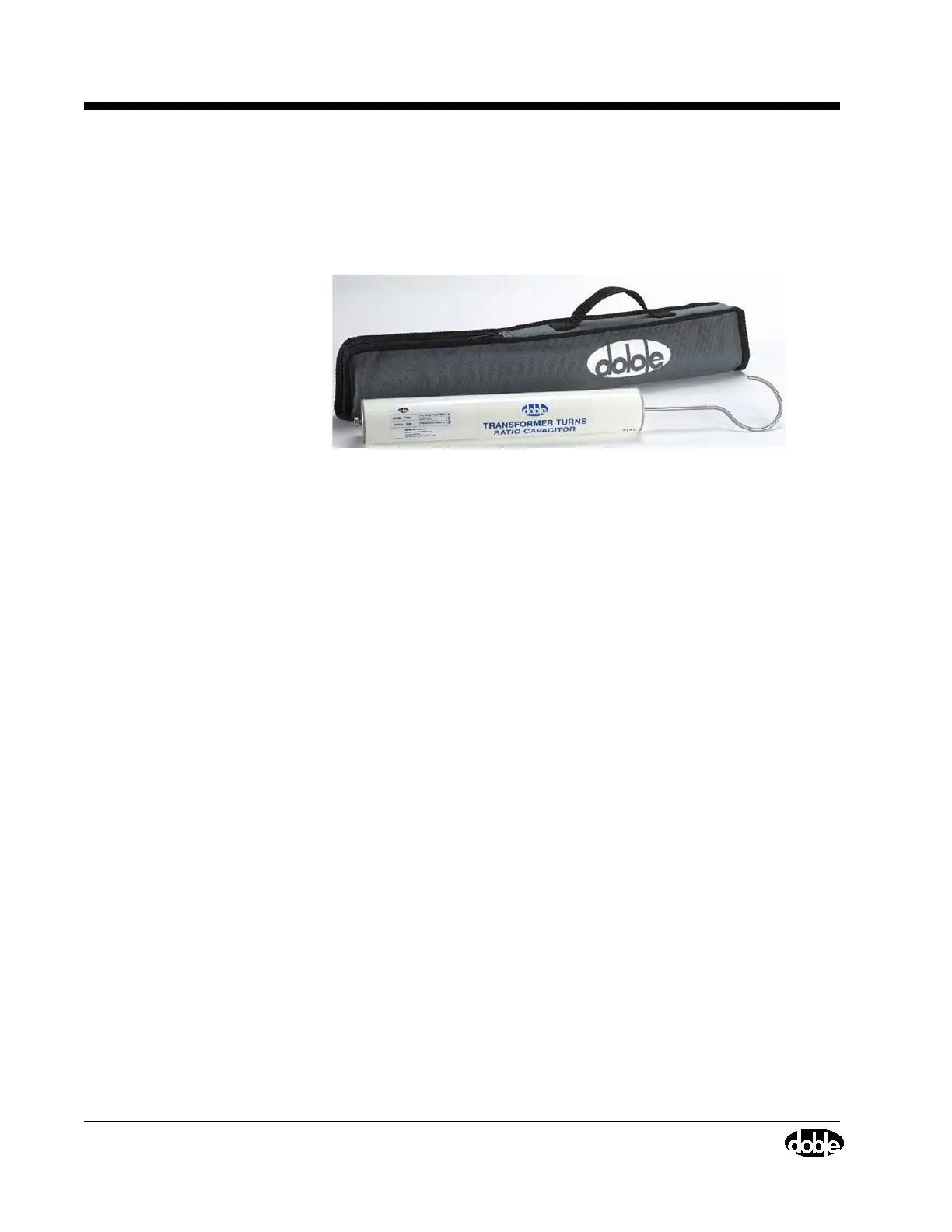

Figure 1.6 Doble Turns Ratio Capacitor
External Reference
This is an optional feature allowing the tester to test apparatus at their full
operating voltage using the M4000, providing a suitable external power source
and reference are provided by the user.
M4300 Transport
The M4300 Transport is an option for the M4000 Insulation Analyzer that
provides a means to move and store the M4000 system. It is also a platform for
the field, from which the M4000 can be easily used and operated. Refer to
”Storage and Moving Mode” on page 1-10 and ”Testing Mode” on page 1-13.
If a PC is to be substituted for the Controller, a support panel to be mounted on
the Controller support frame can be supplied.
