Dover Markem-Imaje 5200 Service Guide

SECTION 6 Field Replaceable Parts
0855855eng 6/08 6–15

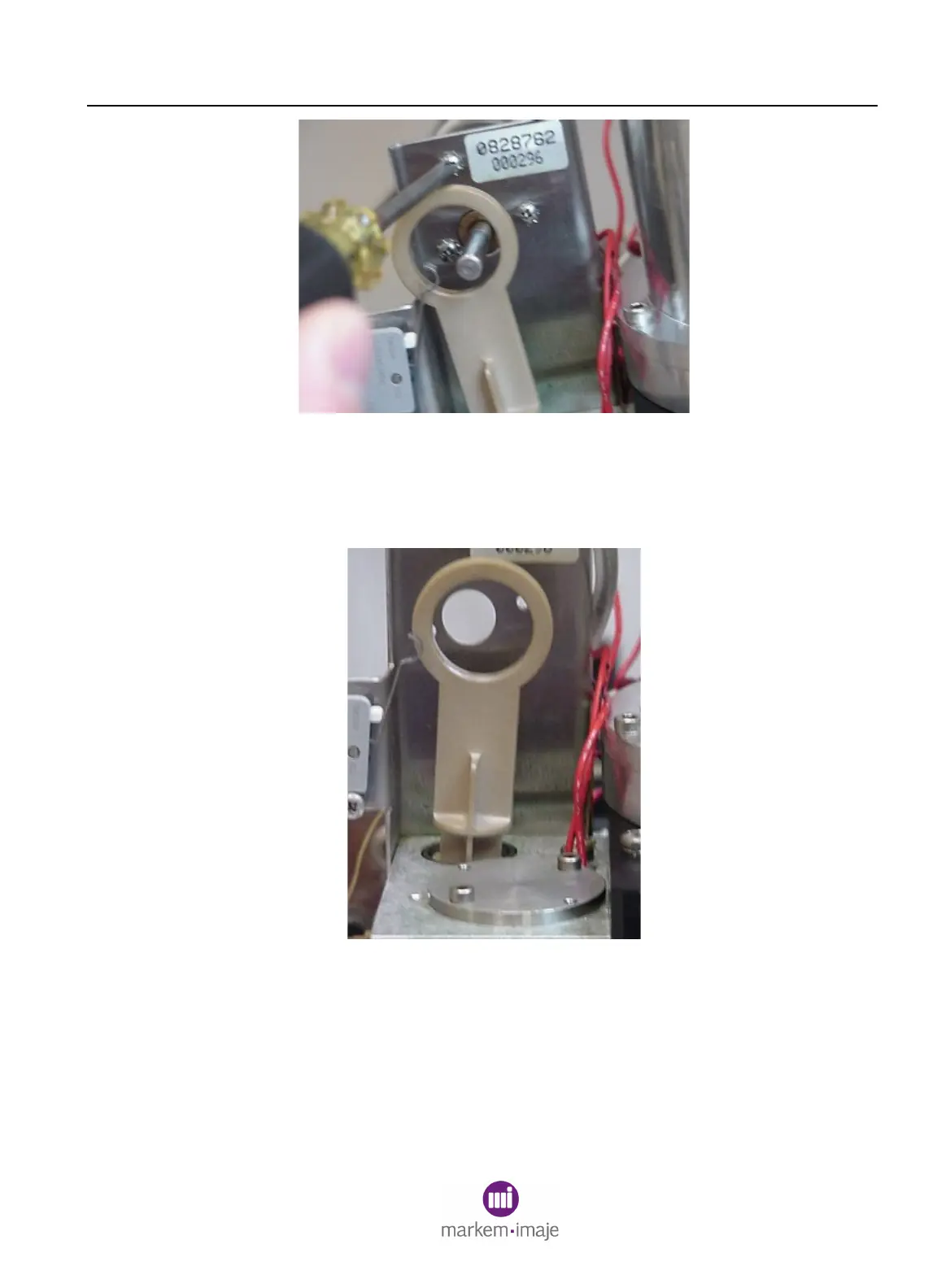

Figure 6–12
3. Carefully cut the wire ties from the wire harness leading to the
connector, and remove the motor (FIgure 6-13).
Figure 6–13
