Duplo DF-850 User Manual

7
Chapter 1 Before Operation
Copyright © 2018 Duplo Corporation All Rights Reserved

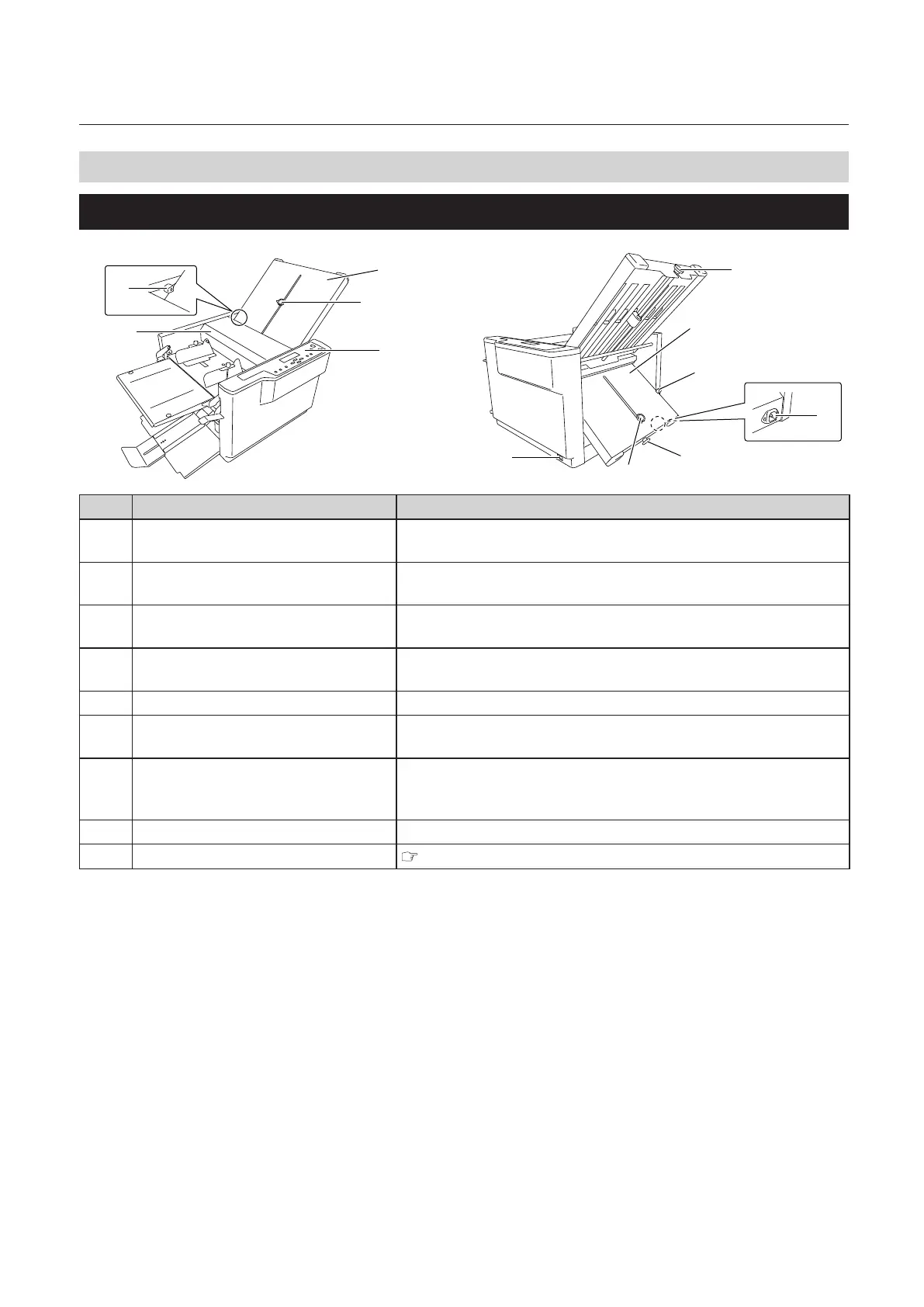

3. Names and functions of components
3-1. External parts
[1]
[2]
[2]
[3]
[6]
[4]
[6]
[5]
[7]
[8]
[9]
[4]
No. Name Function
[1] Top cover Thecoverisformaintainingsafety.Whenthecoverisopen,the
device will not operate.
[2] Lock lever Fixeseachfoldingplateinplace.NotavailableintheDF-850folding
plate 1.
[3] Folding plate 1 Guide plate for deciding a paper folding position. First folding is
made using this plate.
[4] Roughadjustmentknob(*) Determinesthefoldingpositiontomatchthepapersize.Pullupthe
knob, and move it to align with the scale marks.
[5] Control panel Operates the machine.
(p.10)
[6] Fineadjustmentknob(*) Usethispartwhenperformingneadjustmentofthefolding
positionalignedwiththeroughadjustmentknob.
[7] Folding plate 2 Paper that has been folded at the folding plate 1 is sent here, where
the second folding is performed. This plate is not used when folding
paper into two.
[8] Power inlet Connector for the power cord.
[9] Power switch
Chapter2 ”1-2. Turning off power” (p.17)
(*)DF-850only
