• Whenstackingjustafewsheetsofpaperon
the paper feed tray, lower the paper set lever
while pressing the lead edge of the paper
against the guide plate.

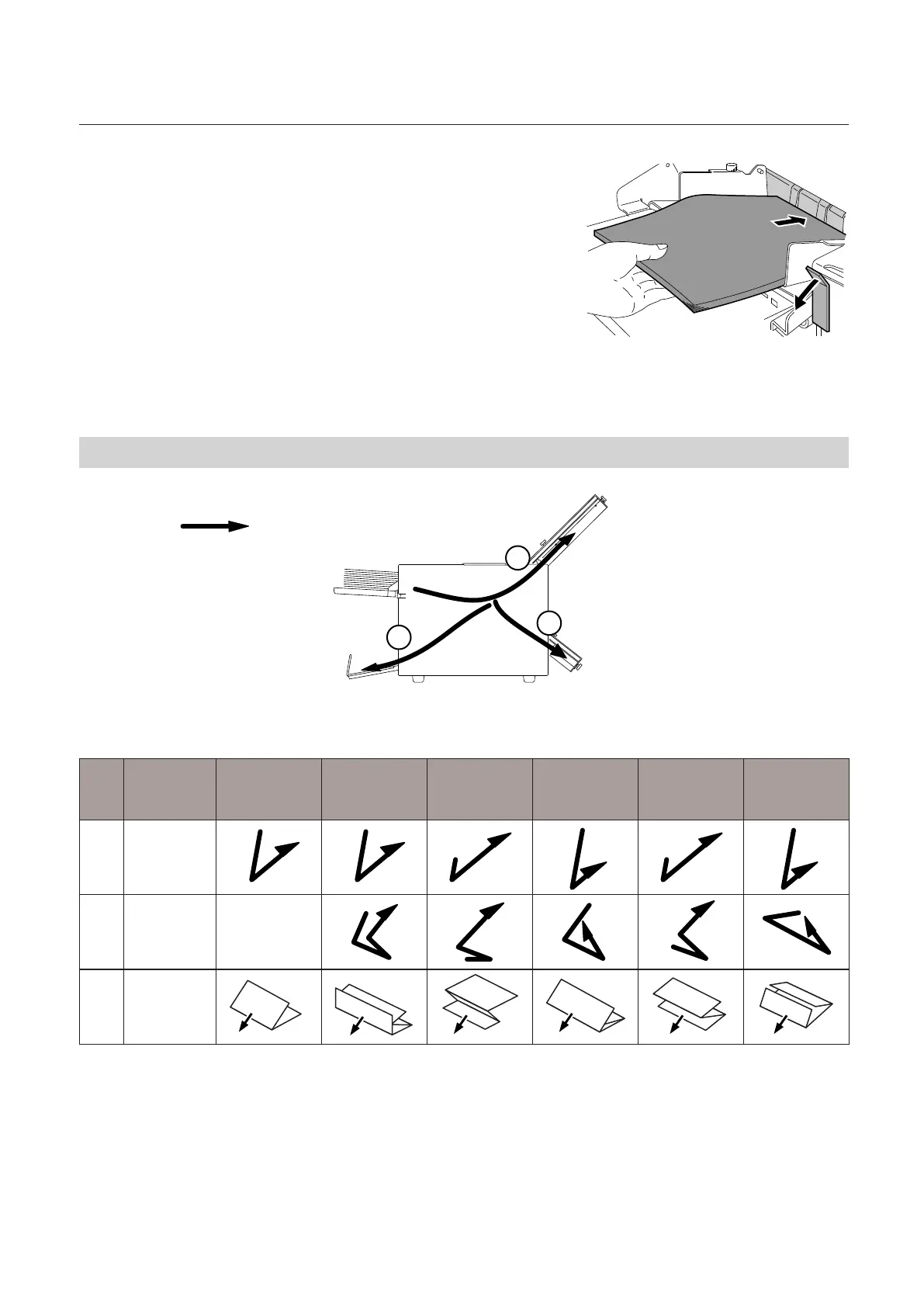

6. Paper flow and operation overview
Paper ow
1
2
3
The"1"to"3"inthisillustrationarethesequenceofpaperbeingtransported.Transportedpapercanbe
folded in each of the foldings shown in the table.
No. Single fold Double fold Irregular
accordion
fold
Letter fold Accordion
fold
Gate fold
(1)
Folding 1
(2)
Folding 2 Notused.
(3)
Finish
