Duplo DF-850 User Manual

3
Chapter 1 Before Operation
Copyright © 2018 Duplo Corporation All Rights Reserved
Chapter 1 Before Operation

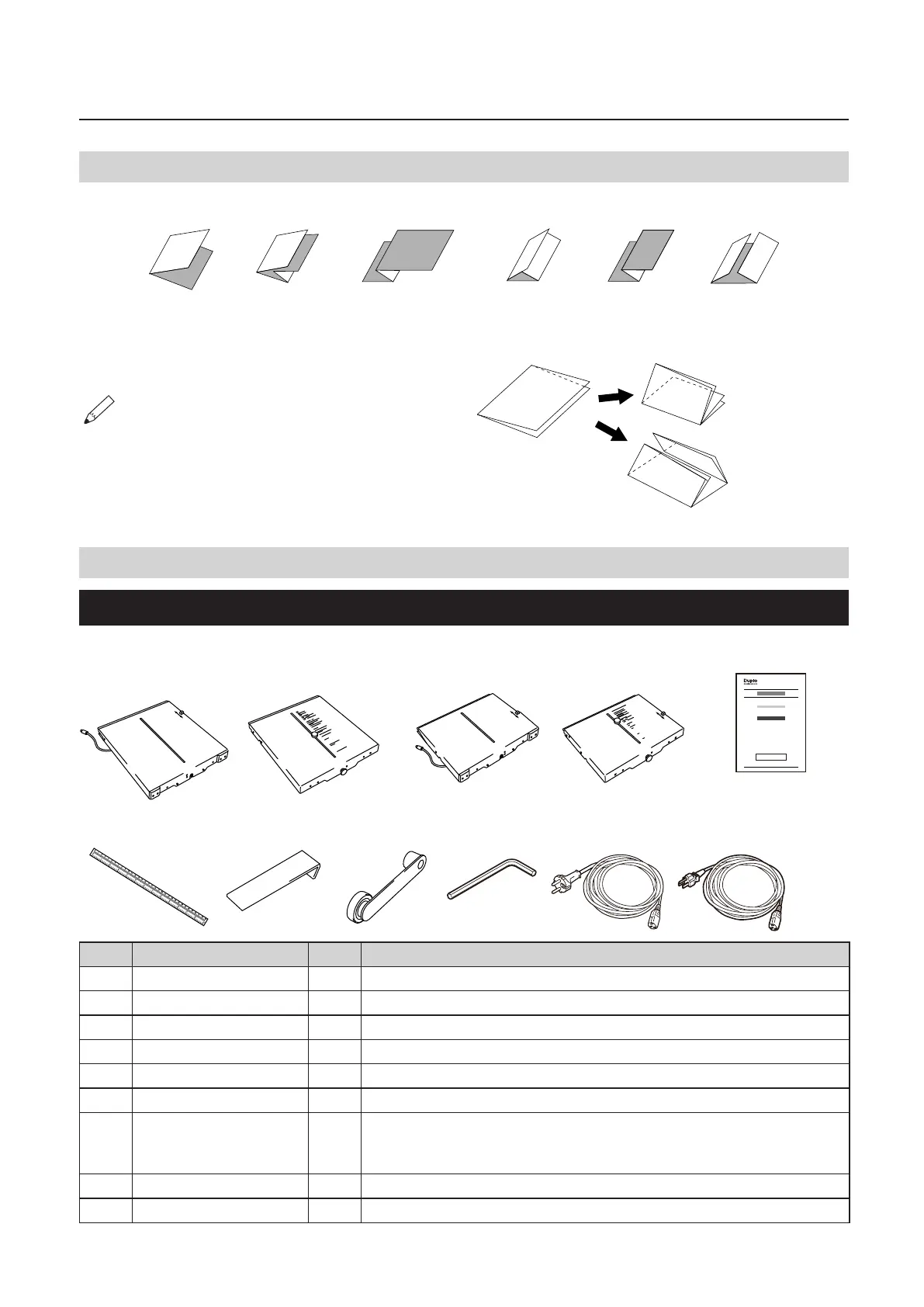

1. Features
• Thisdevicecanbeusedtofoldpaperintothefollowingsixshapes.
Single fold Double fold Irregular accordion
fold-out
Letter fold Accordion fold Gate fold
Cross single fold
Cross letter fold
Single fold
• Byusingthecrossfoldinglever,itispossibleto
create cross single fold and cross letter fold.
Notethatthenishofcrossfoldingisnot
as accurate as that of the six folding modes
mentioned above.
2. Setting Up the Machine
2-1. Accessories
[1]
DF-850
DF-870
DF-850
DF-870
[2]
[3]
[4]
[5]
[6]
[7] [8] [9]
No. Name QTY Use
[1] Folding plate 1 1 Attached to the right upper section on the operator’s side.
[2] Folding plate 2 1 Attached to the right lower section on the operator’s side.
[3] Instruction manual 1 This manual
[4] Scale label 1 Usedtomeasurenon-standardsizepaper.Attachthescale.
[5] Guide plate unit 1 UsedwhenfoldingB6sizenequalitypaperof81.4g/m
2
into four.
[6] Cross folding lever 1 For holding down the folded paper when cross fold.
[7] L-handlehexagonal
wrench
1 Usedwhenmovingtheauxiliarypaperfeedring.DonotusetheL-handle
hexagonal wrench for a purpose other than handling the auxiliary paper
feed ring as instructed in this manual.
[8] Power cord 1 For EU
[9] Power cord 1 ForNA
