Chapter 2 Basic Operation

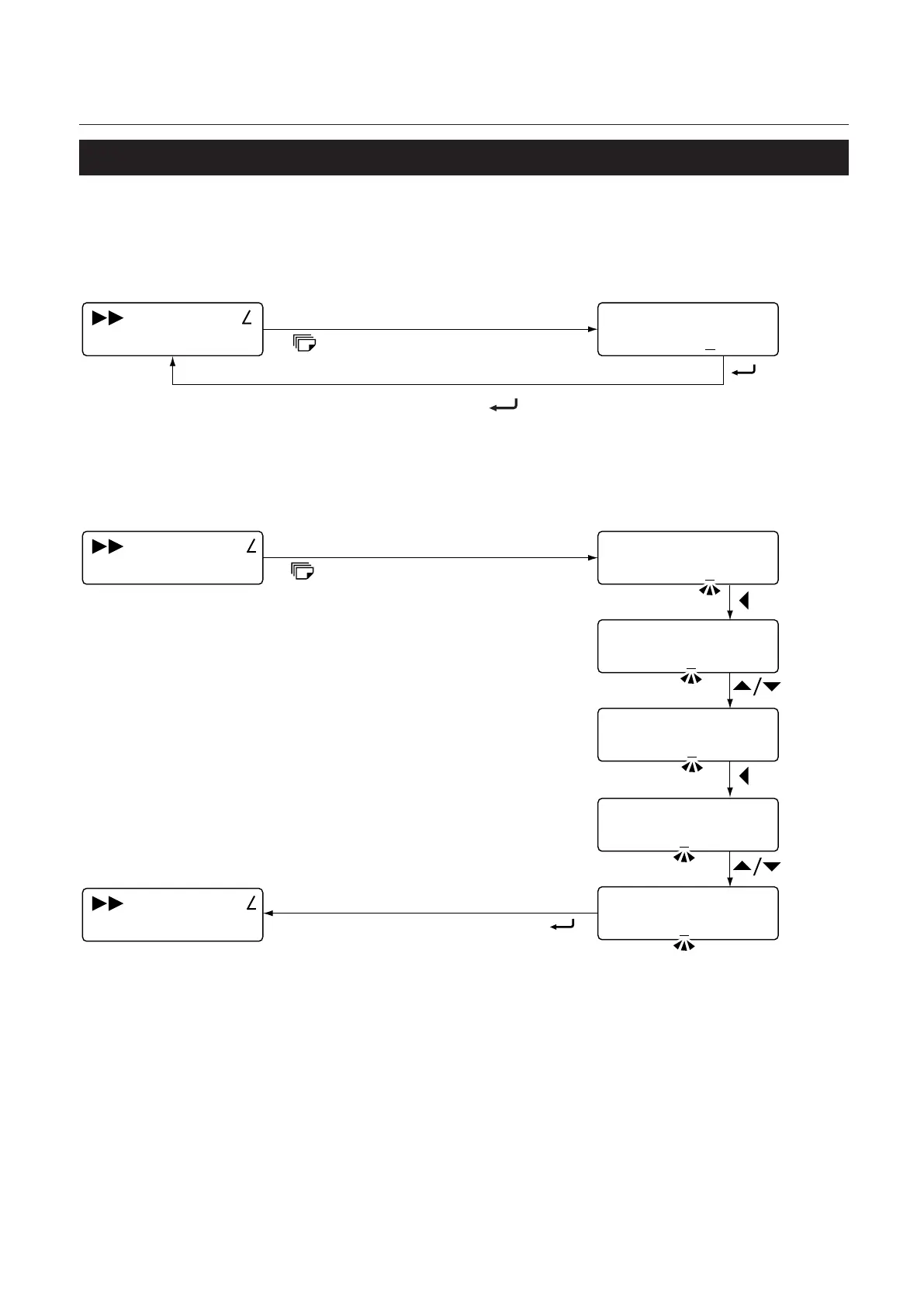

3-7. Setting counter

Iftheoperationmodeis[STD]or[SF](stopperxedmode),thecountermodeatthetimeyouturnonthe

power is the add count mode.

Add count mode

SingleFold

A3 +Count:0000

Counter Settings

0000

Check that the counter value is [0000], and then press the key.

If the value is not [0000], press the C key.

Subtract count mode

Example:Settheprocesssheetnumberto1500sheets

SingleFold

A3 +Count:0000

SingleFold

A3 -1500/1500

Counter Settings

0000

Counter Settings

0000

Counter Settings

0500

Counter Settings

0500

Counter Settings

1500
