Duplo DF-850 - 1-4. Double folding of B6 size paper

30
Chapter3AdvancedOperation
Copyright © 2018 Duplo Corporation All Rights Reserved
10

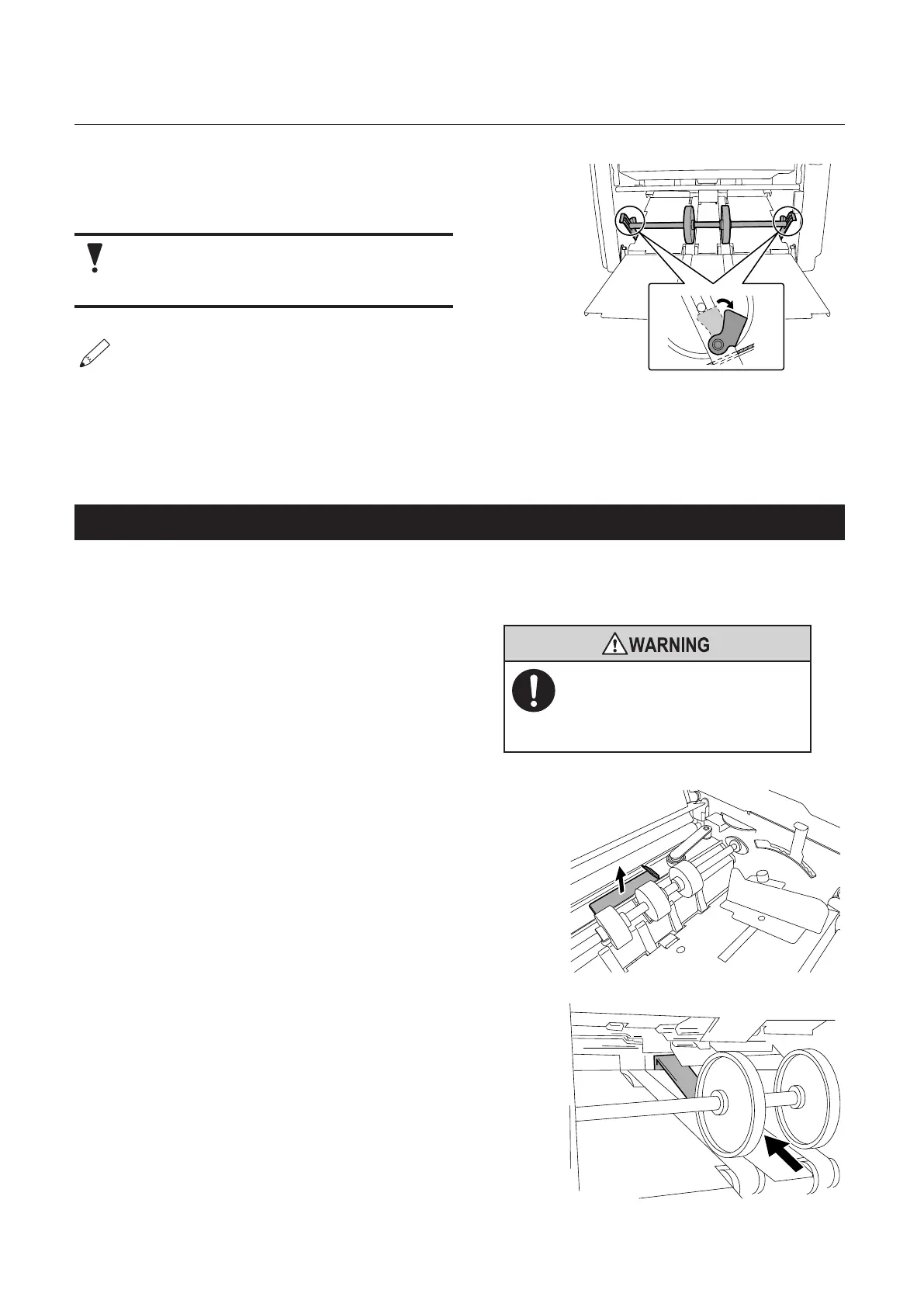

Lower the levers (two locations right
and left) attached to the stacker lever,
in the direction of the arrow.
Leaving the stacker roller in the floating
condition when used for normal paper
could become a source of trouble.
DF-870
Ifthepapersizeorfoldingmodehasbeen
reset,orthepowerswitchhasbeenturnedo,
the stacker roller is returned to the automatic
setting position.
1-4. Double folding of B6 size paper
WhenB6sizepaperat64.0g/m
2
/17.1lbormore,and81.4g/m
2
/21.6lborless,isdouble-folded,paperjams
may occur. In such cases, use the attached guide plate unit.
Open or close the top cover
gently.
Hands or ngers may be caught in the
cover section. Doing so may result in
injury.
1
Open the top cover.
2
Remove the guide plate unit.
3
Attach the guide plate unit in the
position shown in the figure at right.
