Chapter 1 Before Operation
Copyright © 2018 Duplo Corporation All Rights Reserved

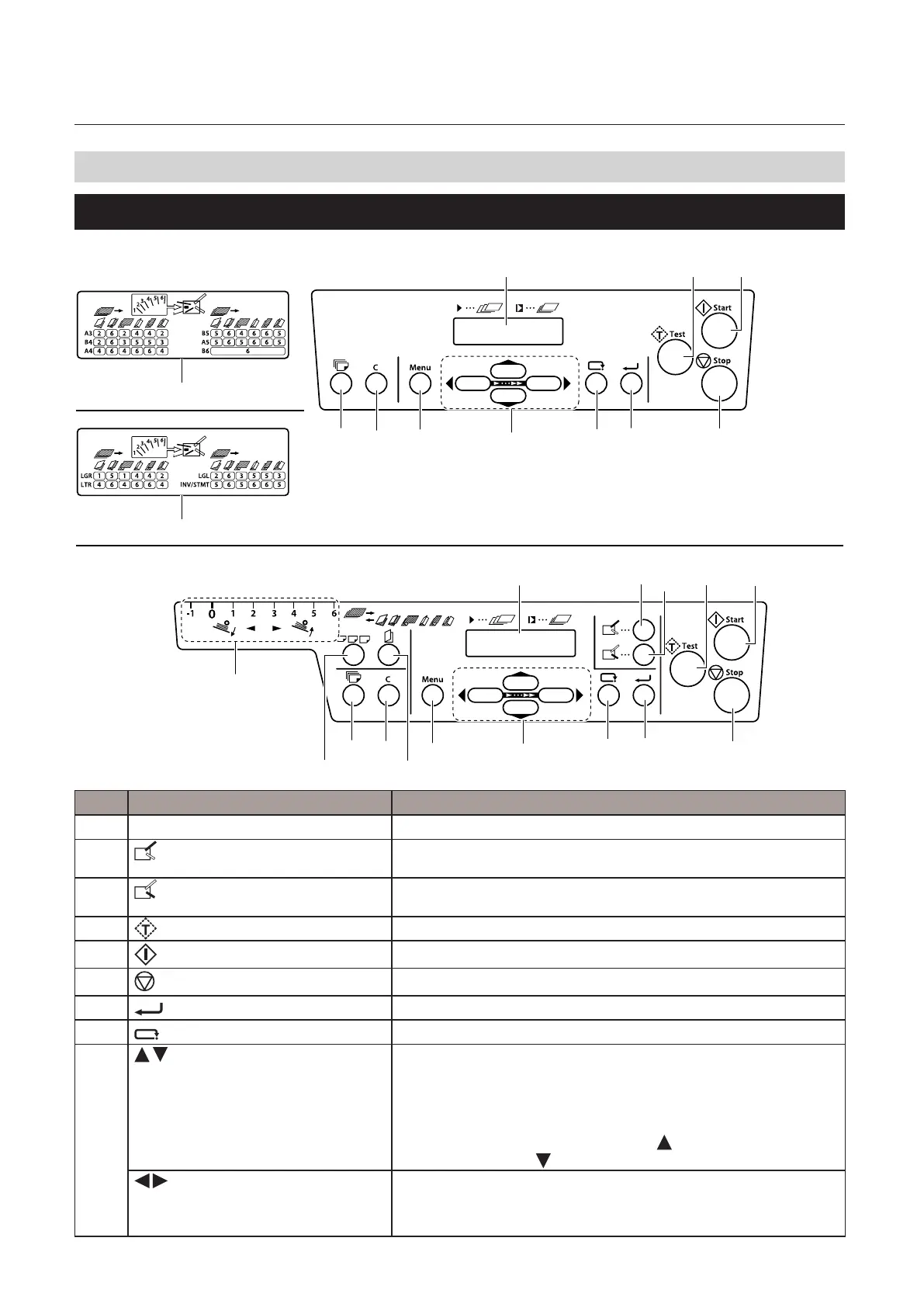

4. Control Panel
4-1. Names of control panel
[9]
[8]
[7]
[1]
[4]
[5]
[6]
[10]
[12]
[13]
DF-850
[16] For EU
[16] For NA
[1]
[9]
[8]
[7]
[2]
[3]
[4]
[5]
[6]
[12]
[10]
[14]
[15]
[11]
[13]
DF-870
No. Name Function
[1]
LCD display Displays the menus or error messages.
[2]
(foldingstopper1adjustment)key
(*1)
Opensthestopperadjustmentscreenforthefoldingplate1.
[3]
(foldingstopper2adjustment)key
(*1)
Opensthestopperadjustmentscreenforthefoldingplate2.
[4]
(test)key
Starts test folding.
[5]
(start)key
Whenpressed,themachinestartsfoldingoperations.
[6]
(stop)key
Whenpressed,themachinestops.
[7] (return)key Press to enter the settings.
[8] (cancel)key Use to cancel setting data.
[9]
key Used when changing the setting value or selecting the item.
Mainscreen:Changetheprocessingspeedonlywhen[Feed
INTVL]issetto[ON].
Menuselectionscreen:Selectthemenuitem.
Numbersettingscreen:Eachtimethe key is pressed, number is
[+1], each time the keyispressed,numberis[-1].
key Used when changing the selection content or number.
Mainscreen:Changetheprocessingspeed.
Numbersettingscreen:Changethenumberofdigitstobeinput.
