32
Chapter3AdvancedOperation
Copyright © 2018 Duplo Corporation All Rights Reserved

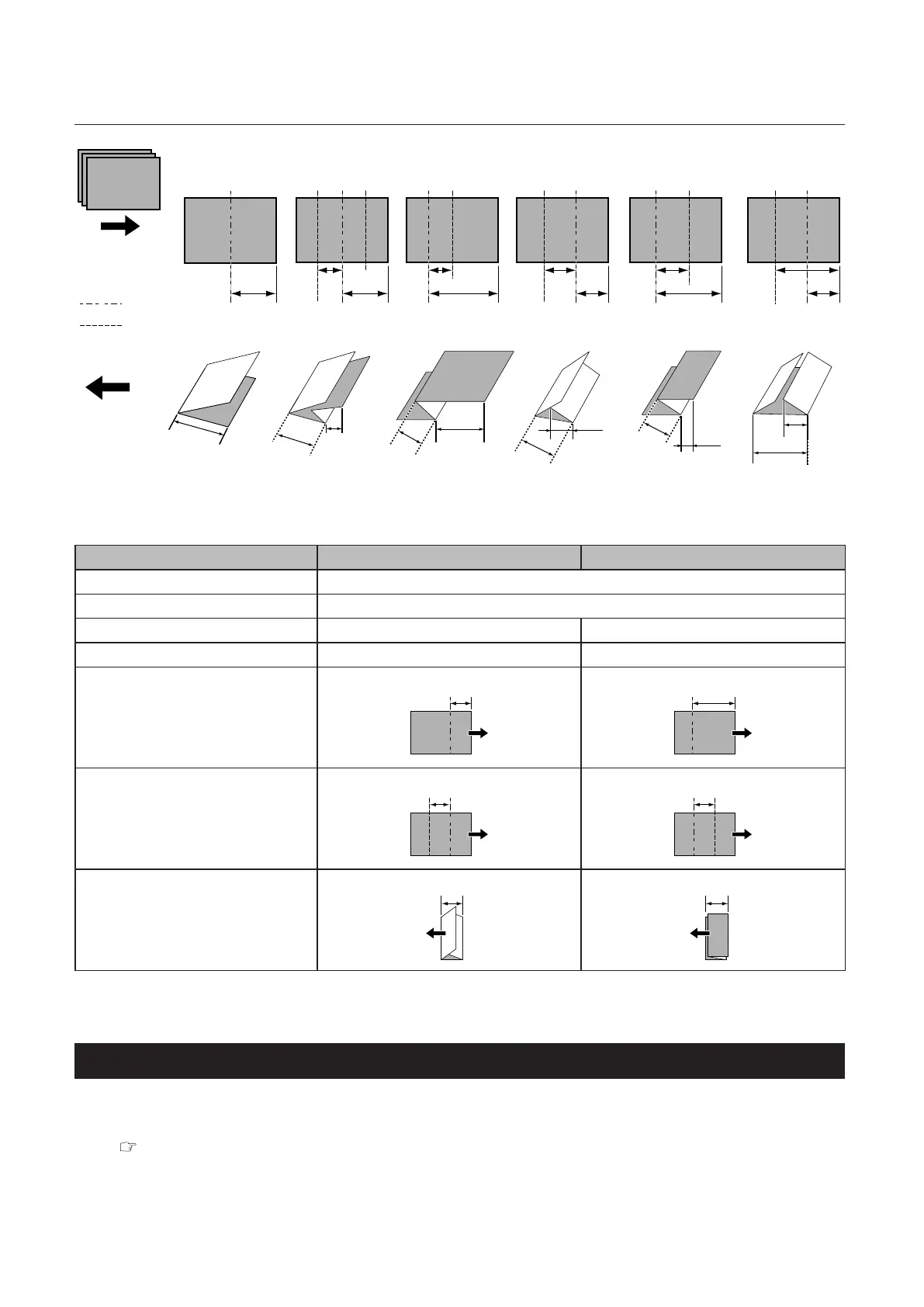

Paper feed
direction
Single fold Irregular
accordion fold
Letter fold Accordion fold
Folding 1
Folding 2
Gate foldDouble fold
A
A
A
A
A
B
B
A
B
B
B
Printed
side
A
(B=0 mm/
0.0 inches)
B
A
A
A
B
B
A
A
B
B
Paper
ejection
direction
The operations procedure is described with the setting value of the following table [1] as an example.
For [2], see the reference example.
No. [1] [2]
Utilizationexample Flyers for distribution
Papersize A4(210x297mm/8.27x11.69inches)
Folding form Letter fold Accordion fold
Paper feed tray stacking direction On print surface On print surface
Folding1(DimensionA) 92mm/3.62inches 200mm/7.87inches
Folding2(DimensionB) 103mm/4.06inches 100mm/3.94inches
Finishedsize(DimensionC) 103mm/4.06inches 100mm/3.94inches
2-1. Measuring folding position dimension
1
Stack paper in the paper feed tray.
Chapter 2 “2-3. Stacking paper” (p.19)
2
Manually prepare a folding sample with the paper being used.
