Chapter 1 Before Operation
Copyright © 2018 Duplo Corporation All Rights Reserved

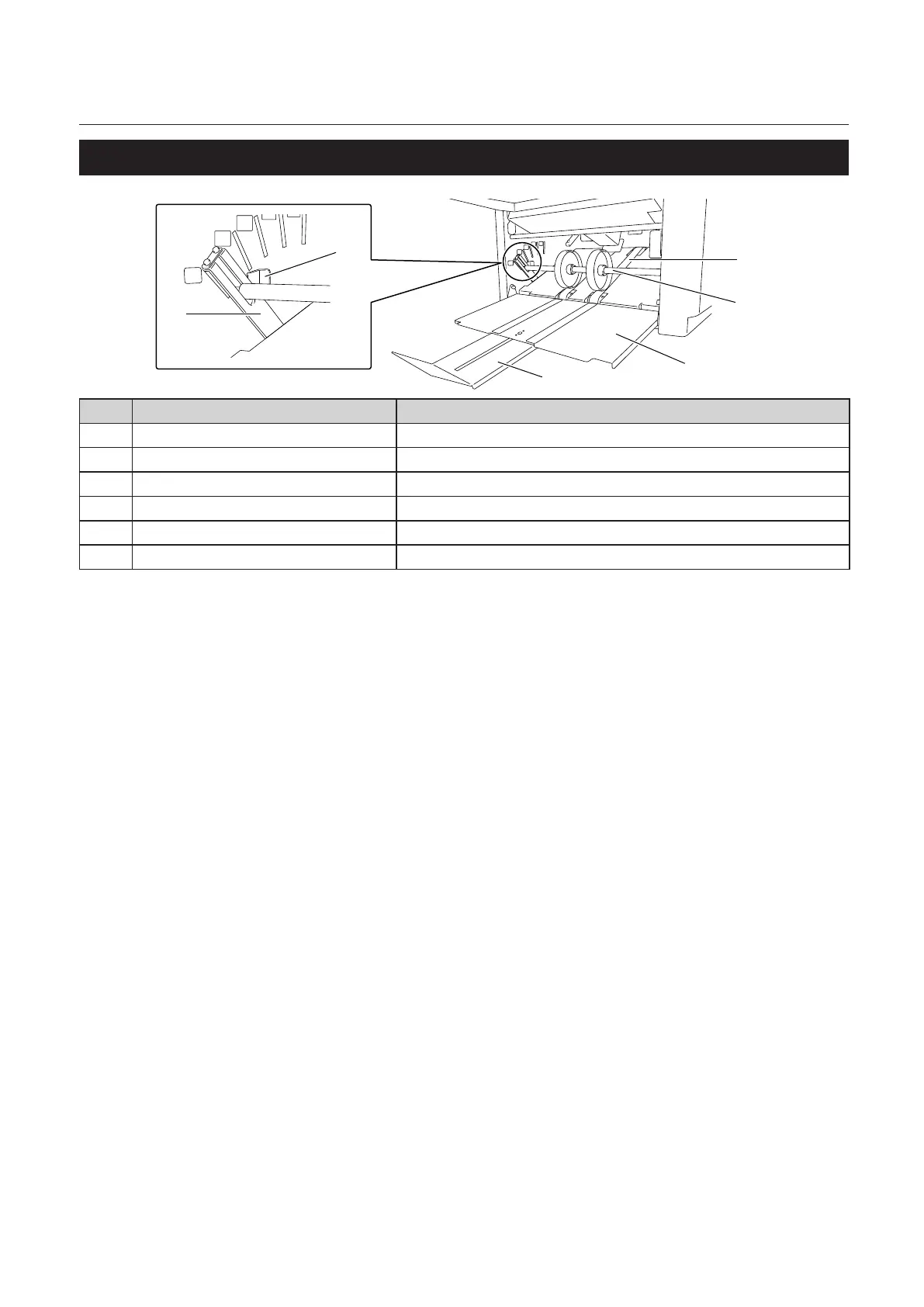

3-4. Ejecting section
[5]
[6]
[4]
[1]
[2]
[3]
No. Name Function
[1] Stacker belt Beltforejectingthefoldedpaper.
[2] Stacker roller Holdsdowntheejectedpaper,andassiststhepapertransport.
[3] Paper receiving tray Stacks the folded paper.
[4] Paper receiving stopper Stopspaperejectedoutfromthemachine.
[5] Stacker lever Lever for supporting the stacker roller.
[6] Lever Adjuststhestackerrollerheight.
