Duplo DF-850 User Manual

4
Chapter 1 Before Operation
Copyright © 2018 Duplo Corporation All Rights Reserved

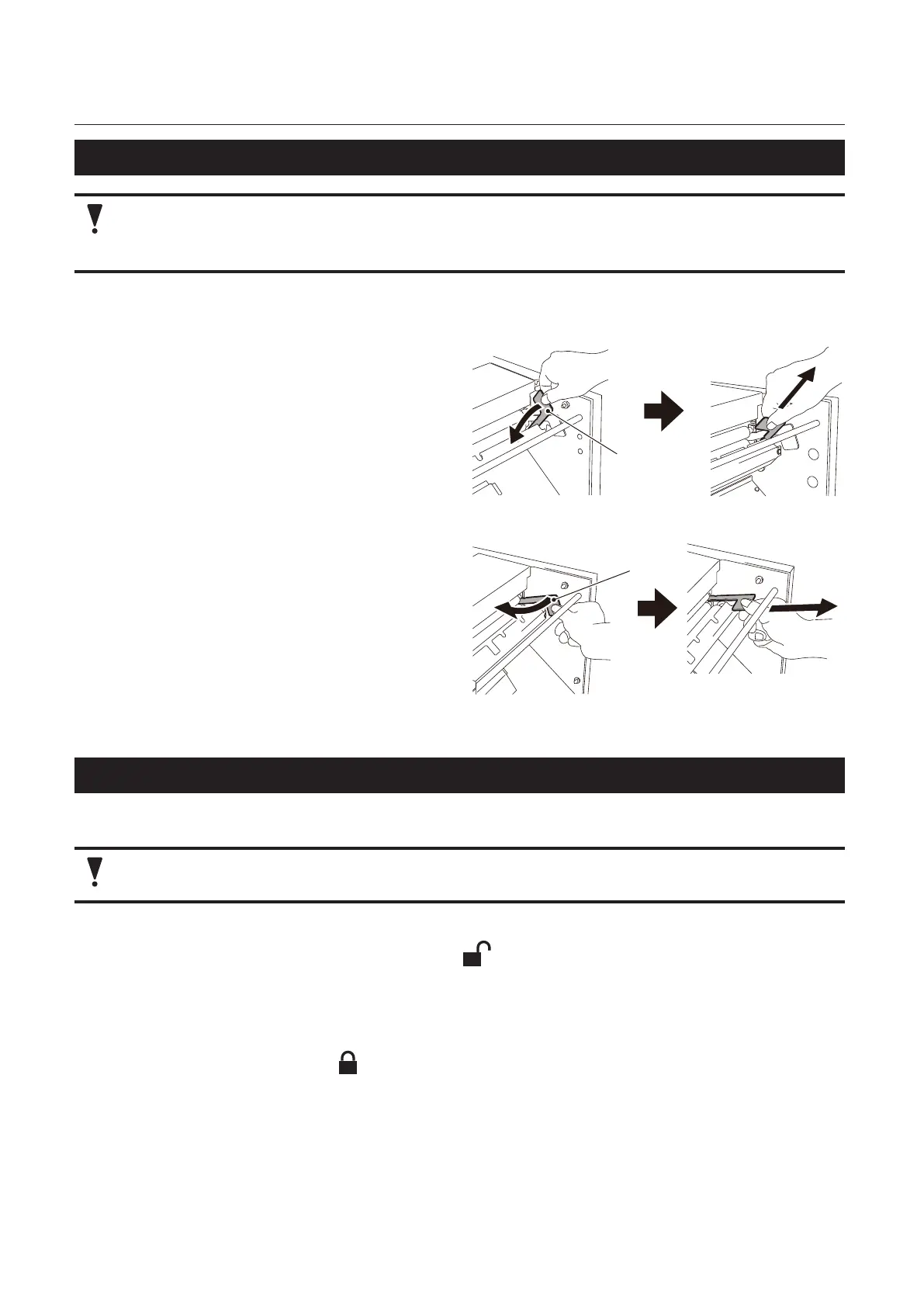

2-2. Removing press release lever
• Thepressreleaseleversareattachedtotheunitatshipmenttopreventtherubberrollfrom
becoming distorted. Be sure to remove them when setting up the machine.
• Themachinewillbedamagedifitisusedwithoutremovingthelever.
The two types of press levers are attached to either side of the rubber roll.
[A]
1
To remove the press release lever [A] on
the non-operator’s side, push it inwards
and pull it out.
2
To remove the press release lever [A] on
the operator’s side, push it inwards and
pull it out.
[B]
3
To remove the press release lever [B] on
the non-operator’s side, push it inwards
and pull it out.
4
To remove the press release lever [B] on
the operator’s side, push it inwards and
pull it out.
2-3. Attaching parts
Attaching the folding plate
When attaching/removing the folding plate, always be sure to hold the folding plate in both
hands.
1
Lower the folding plate 2 lock lever in the direction.
2
Attach the folding plate 2 to the machine.
Insert the folding plate 2 so that it aligns with the slider and frame left and right pillars.
3
Lower the lock lever in the direction to fix the folding plate 2.
