Duplo DF-850 User Manual

18
Chapter 2 Basic Operation
Copyright © 2018 Duplo Corporation All Rights Reserved

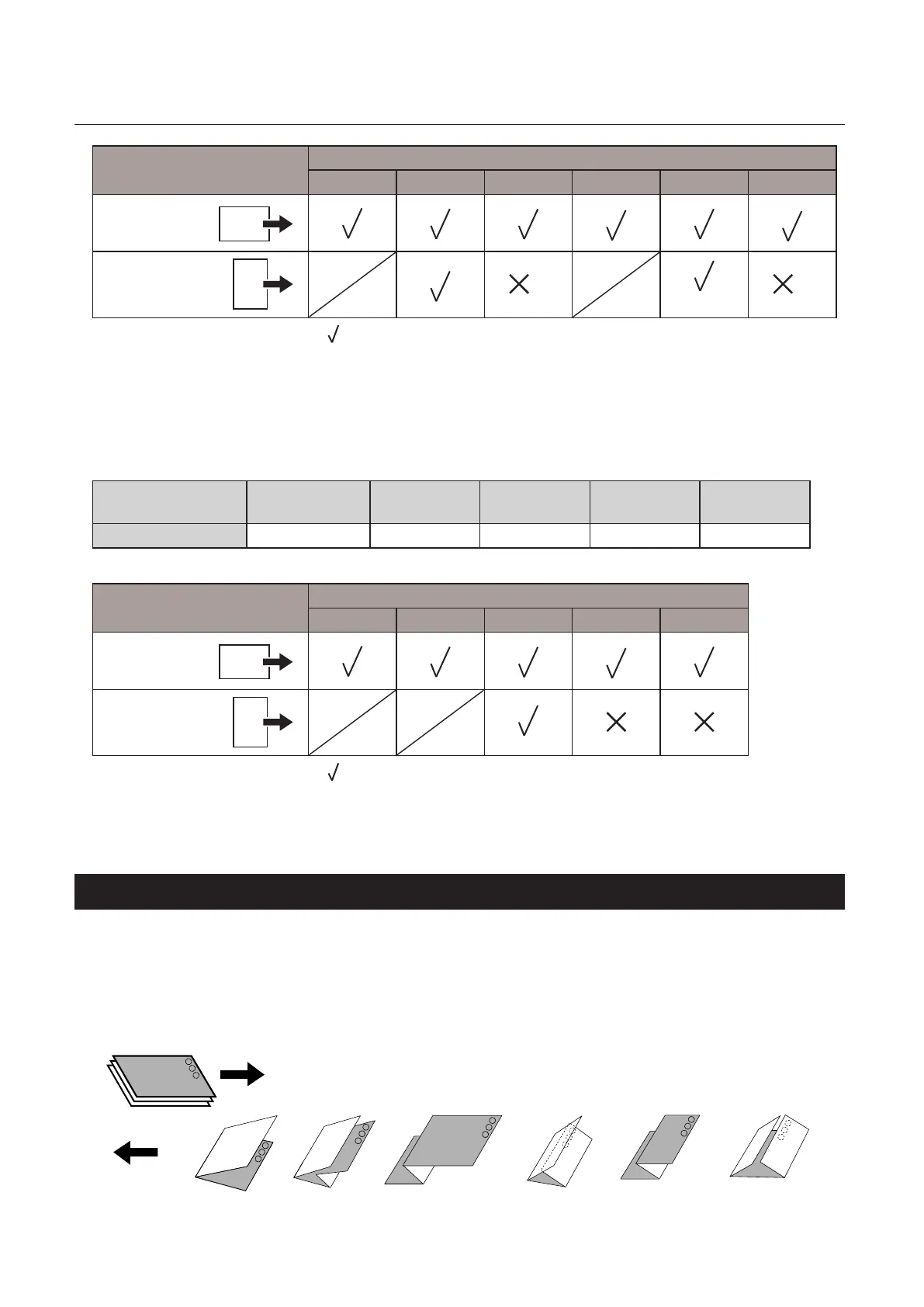

Stacking Direction
Paper Size
A3 A4 A5 B4 B5 B6
Short edge feed
Long edge feed (*) (*)
Canbeusedasstandardpaper:
Cannotbeusedasstandardpaper:X
(*)Fornon-xedpapersize,onlysinglefoldingispossible.
For NA
Thestandardpapersthatcanbeusedforthismachinearethefollowingvetypes
Paper Size LGR
(double letter)
LGL
(legal)
LTR
(letter)
STMT
(statement)
INV
(invoice)
Wide × Long (inch) 17 x11 14x8.5 11x8.5 8.5x7 8.5x5.5
LGR and LGL are detected as standard paper only when stacked with short edge feed.
Stacking Direction
Paper Size
LGR LGL LTR STMT INV
Short edge feed
Long edge feed
Canbeusedasstandardpaper:
Cannotbeusedasstandardpaper:X
2-2. Standard folding
Therearesixtypesofstandardfoldingmodes:singlefold,doublefold,irregularaccordionfold(foldout),
letterfold,accordionfold(zfold)andgatefold.Paperisfoldedasshownbelowwhenthepaperisplacedon
the paper feed tray with its print side facing upward.
Whenpaperisstackedwiththegraysurfaceontheobversesideandwhitesurfaceonthereversesideon
the paper feed tray, and processing is completed in the standard folding mode, the folded paper is as shown
inthegure.
Single fold Double fold Irregular accordion
fold-out
Letter fold Accordion fold Gate fold
Paper feed direction
Paper ejection
direction
