Duplo DF-850 User Manual

8
Chapter 1 Before Operation
Copyright © 2018 Duplo Corporation All Rights Reserved

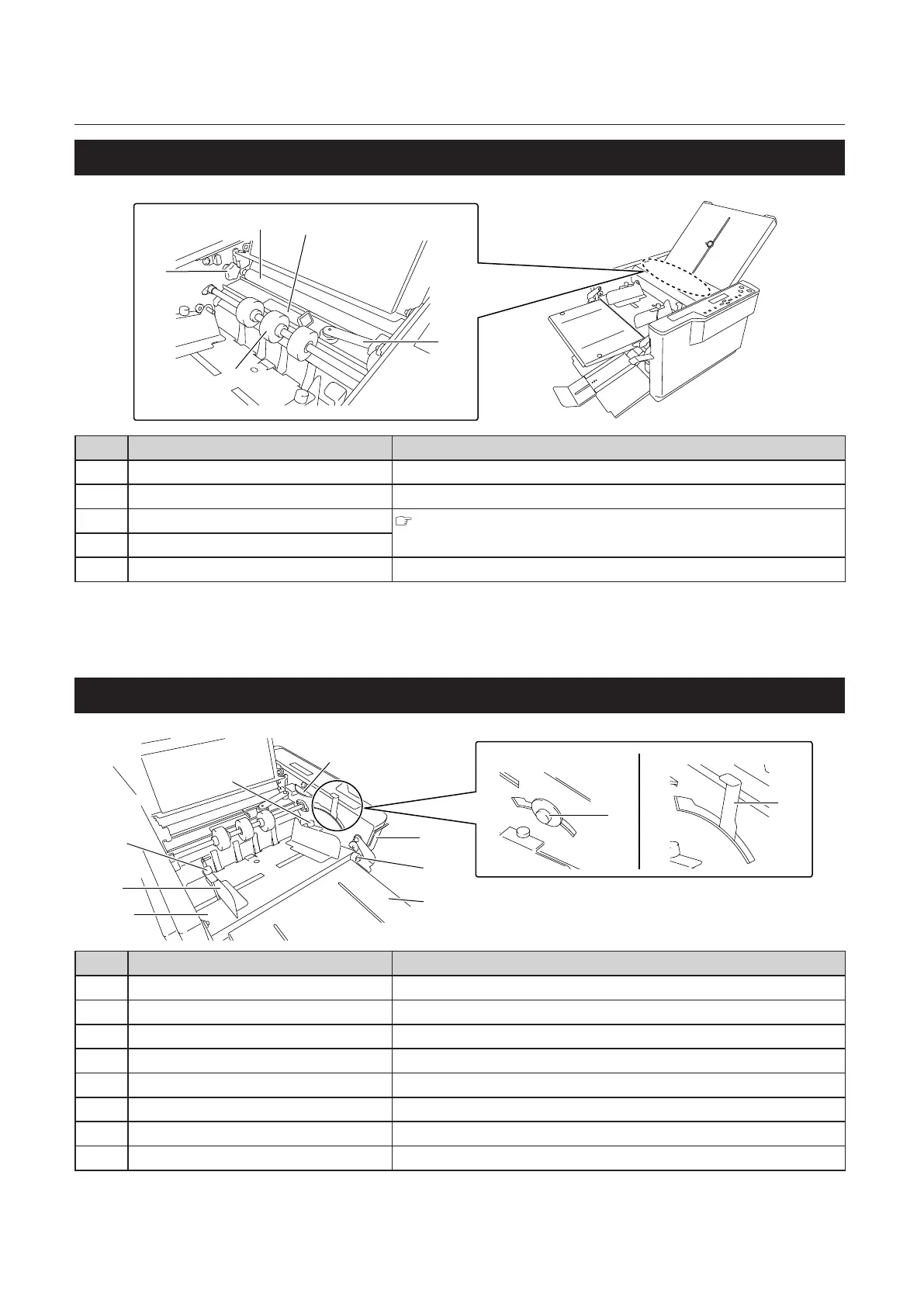

3-2. Inside top cover
[1]
[4]
[2]
[3]
[5]
No. Name Function
[1] Jamcorrectionknob(*) Removespaperjammedaroundtherubberrollbyturningtheknob.
[2] Rubber roll Inserts paper into the folding plate 1.
[3] Guide plate unit
“2-1. Accessories” (p.3)
[4] Cross folding lever
[5] Paper feed ring Feeds paper into the machine.
(*)DF-870only
3-3. Paper feed section
DF-850
DF-870
[2]
[2]
[6]
[4]
[3]
[7]
[8]
[1]
[5]
[8]
No. Name Function
[1] Separatingpressureadjustmentdial(*) Adjuststhepaperseparatingpressure.
[2] Paperfeedpressureadjustmentlever Adjustspaperfeedpressure.
[3] Paper set lever Whenlowered,thepaperfeedtrayisraised.
[4] Skew correction knob Corrects misalignment along sides of paper.
[5] Auxiliary paper feed tray Assists the paper stacked in the paper feed tray.
[6] Paper feed tray Used to stack paper to be folded.
[7] Paper feed guide Holdspaperstackedonthepaperfeedtray.
[8] Guidexingscrew Fixes the paper feed guide in place.
(*)DF-870only
