Duplo DF-850 User Manual

48
Chapter3AdvancedOperation
Copyright © 2018 Duplo Corporation All Rights Reserved

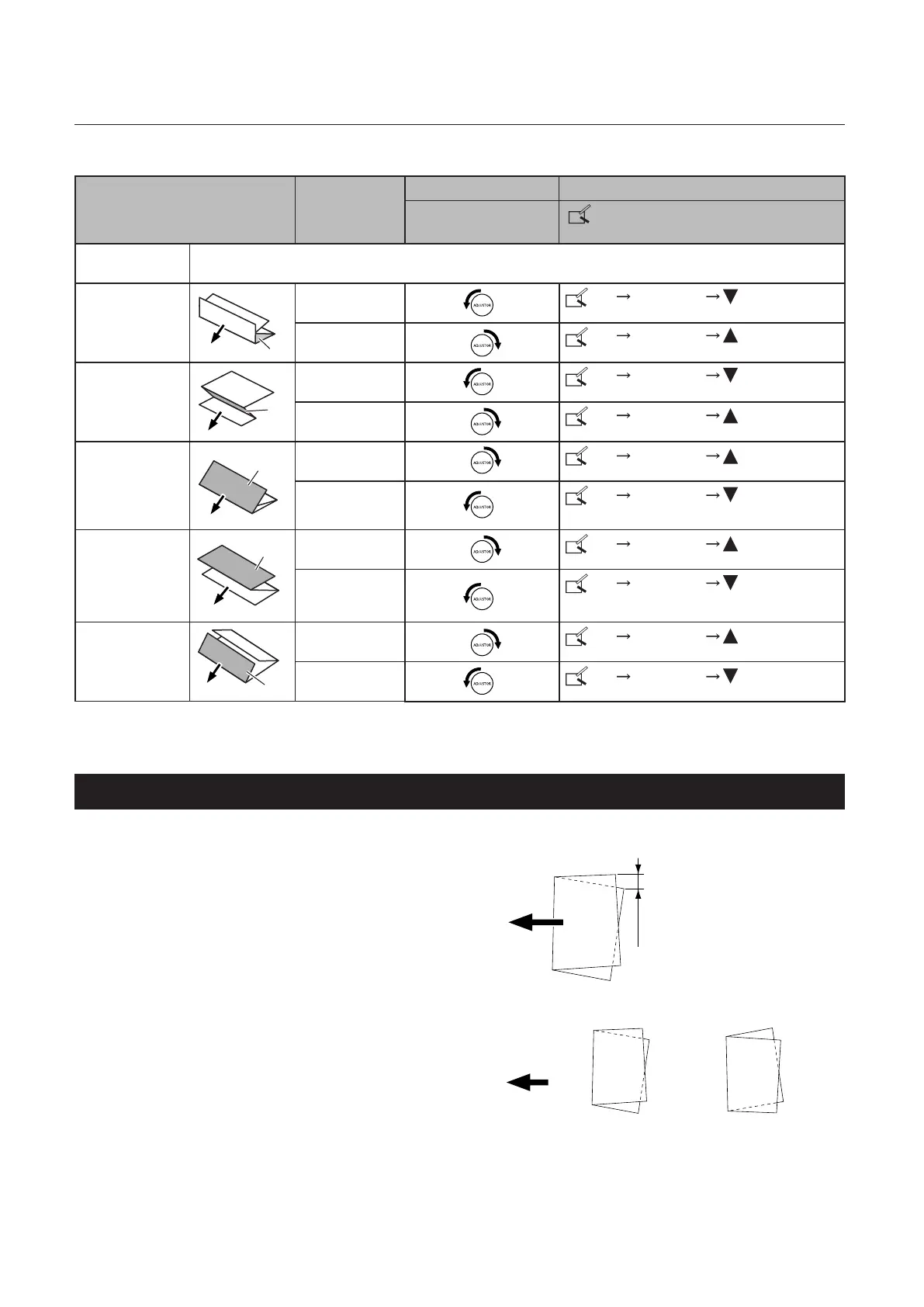

Folding plate 2
Folding mode Folding
surface B
DF-850 DF-870
Fine adjustment
knob
(Folding stopper 2 adjustment) key
Single fold Folding plate 2 is not used.
Double fold
B
B is long
key [F2Adjust] key
B is short
key [F2Adjust] key
Irregular
accordion fold
B
B is long
key [F2Adjust] key
B is short
key [F2Adjust] key
Letter fold
B
B is long
key [F2Adjust] key
B is short
key [F2Adjust] key
Accordion fold
B
B is long
key [F2Adjust] key
B is short
key [F2Adjust] key
Gate fold
B
B is long
key [F2Adjust] key
B is short
key [F2Adjust] key
6-2. Correcting folding misalignment along sides of paper
Paper
ejection
direction
Correct the folding
misalignment in this area.
Ifthefoldingpositionismisalignedintheleft/right
direction,usetheslantcorrectionknobtoadjustthe
misalignment.
[b]
[a]
Paper
ejection
direction
1
Check the folding misalignment
conditions.
