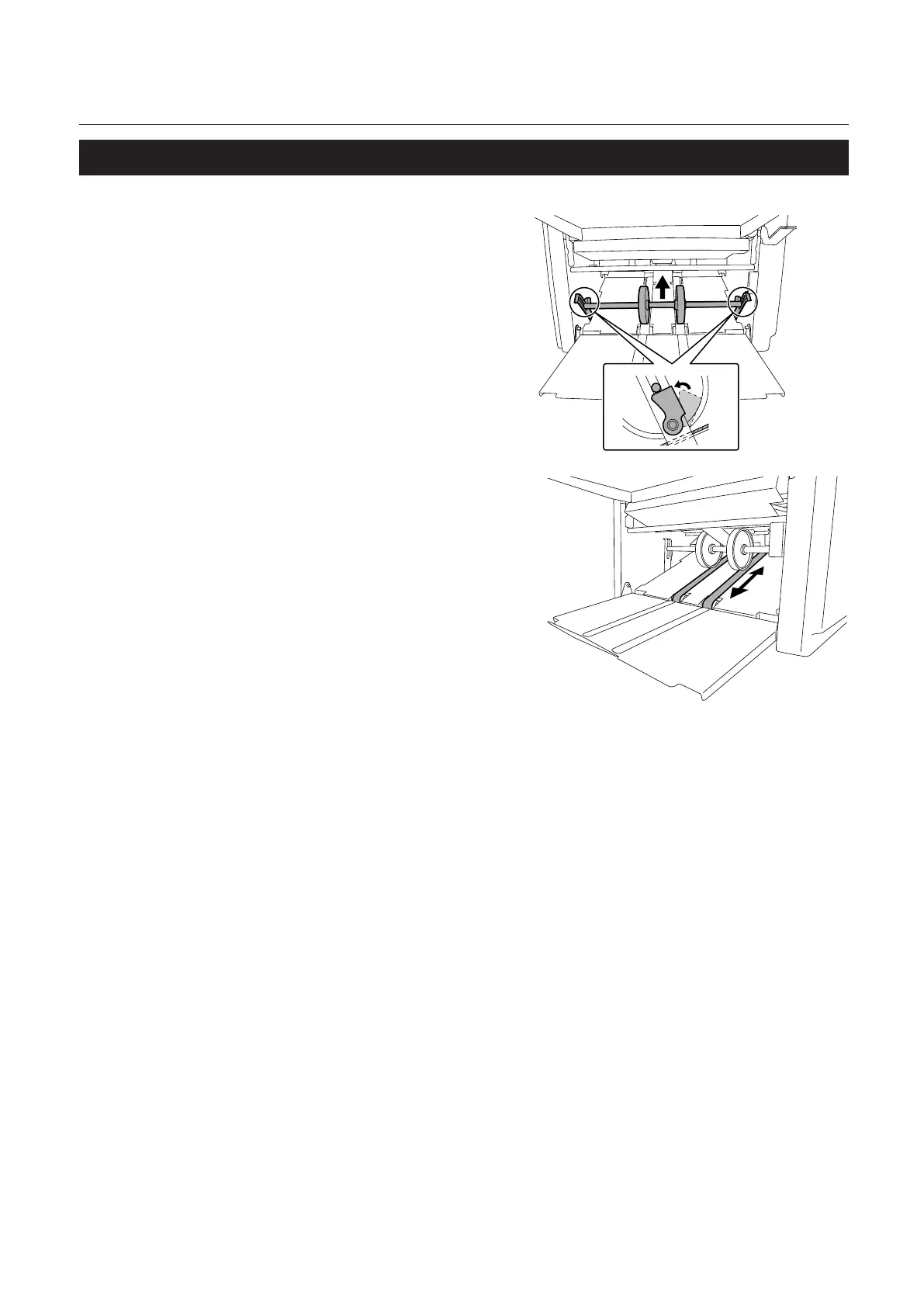

1-5. Cleaning paper ejection belts
1
Lift up the stacker roller by hand, and
lift the levers (two locations right and
left) attached to the stacker lever, in the
direction of the arrow.
Thestackerrollerisleftoatingabovethebelt
surface.
2
Slowly push up the stacker roller to the
[6] position.
3
While rotating the paper ejection belts
by hand, wipe down with an alcohol-
saturated cloth.
4
Return the stacker roller to its original
position.
