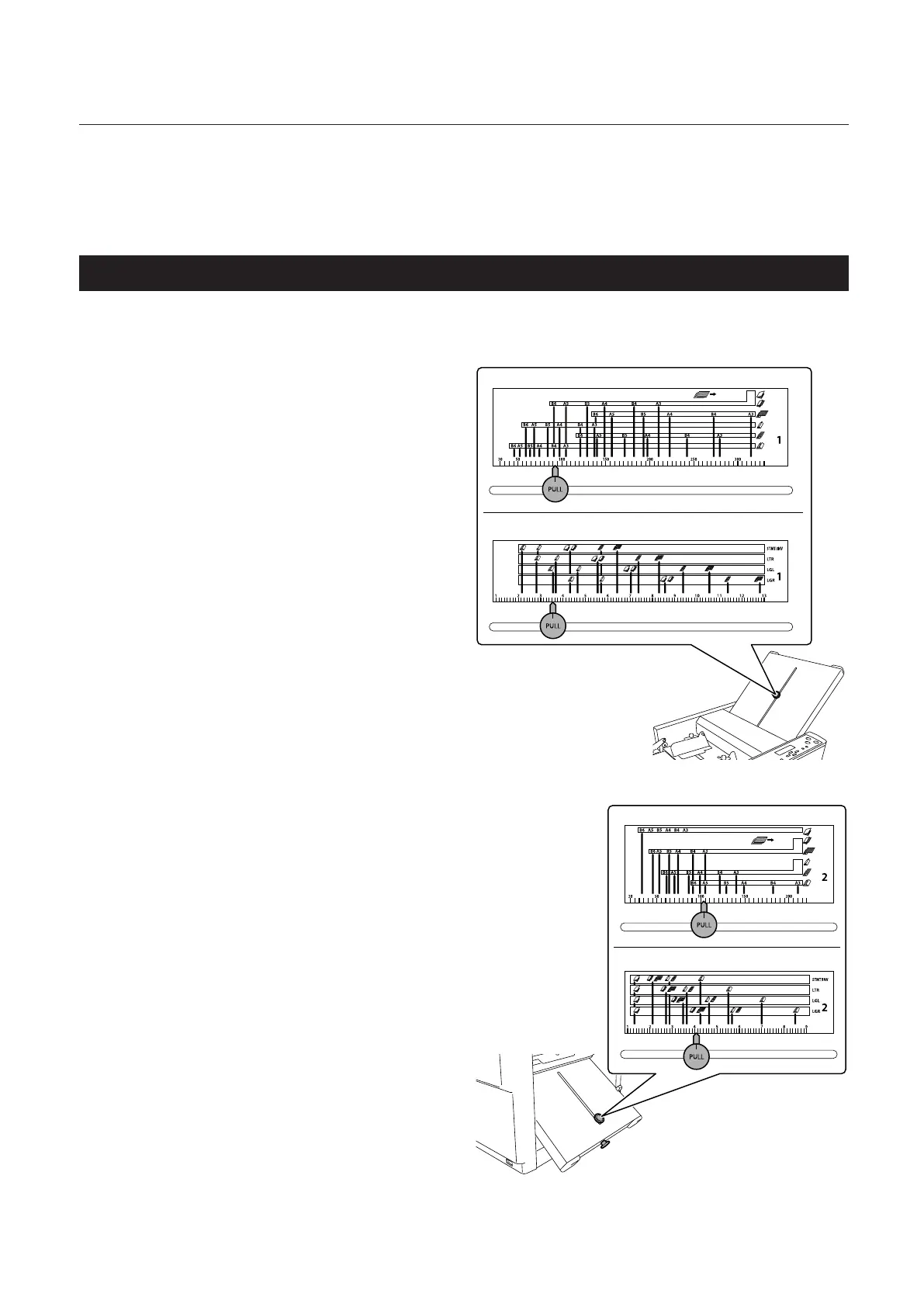

Measure the folding position dimensions of the folding sample.
2-2. Setting paper size and folding mode
DF-850
For NA
For EU
1
While pulling up the rough adjustment
knob of the folding plate 1, align it to
the scale "92"/”3.62” (Dimension A).
For NA
For EU
2
Align the rough adjustment knob of the
folding plate 2 to the scale "103"/”4.06”
(Dimension B).
Iftheroughadjustmentknobbecomes
misalignedwiththescale,performstep3.
3
While rotating fine adjustment knob
either right or left, align the rough
adjustment knob to the scale.
