Chapter5TroubleGuide
Copyright © 2018 Duplo Corporation All Rights Reserved
2-2. Folding plate
DF-850
Folding plate 1
1
Turn off the power.
Chapter 2 “1-2. Turning off power” (p.17)
2
Remove the folding plate 1.
Use the reverse procedure to Chapter 1
“Attachingthefoldingplate”(p.4)toperform
removal.
3

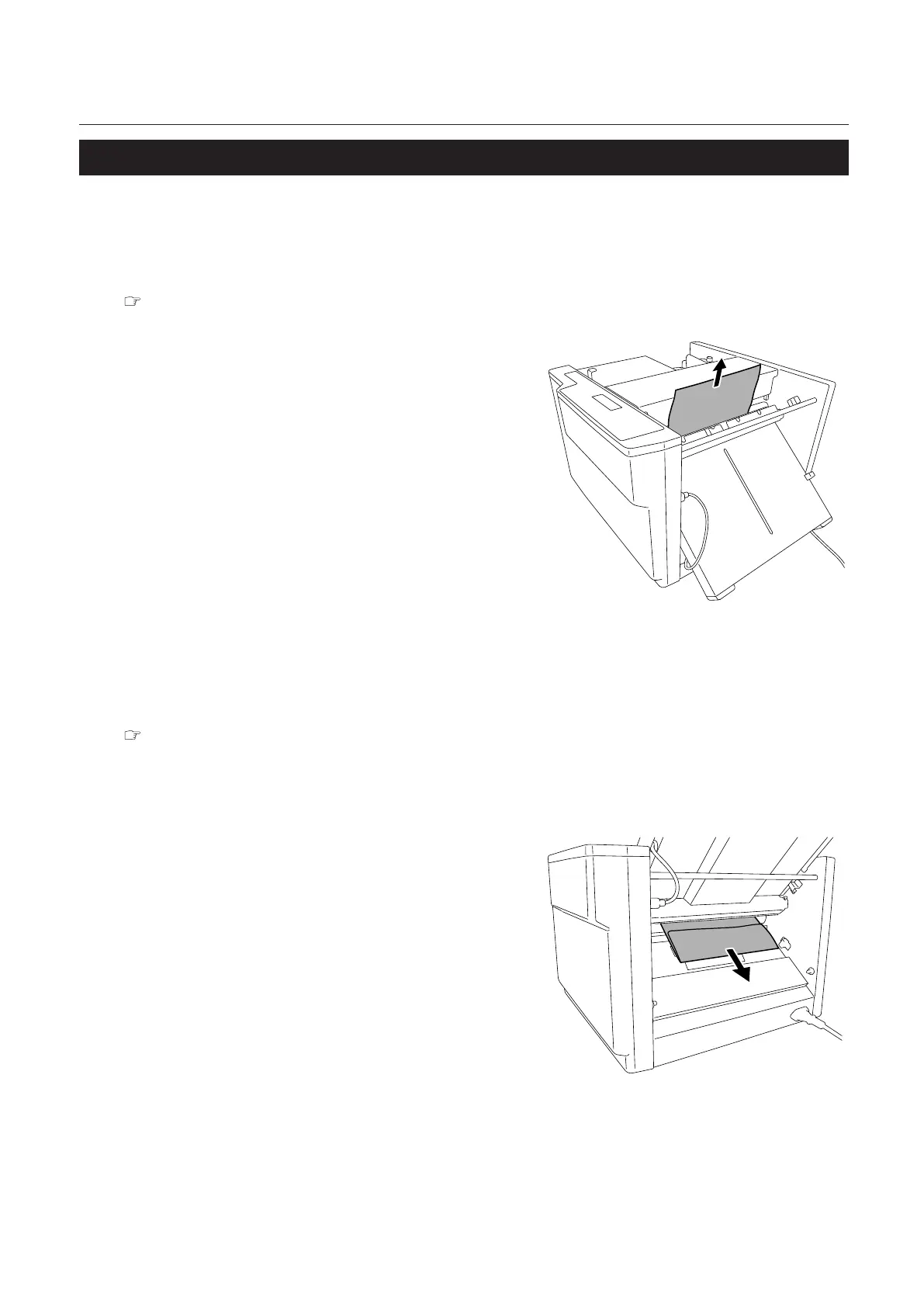

Remove the jammed paper.
4
Attach the folding plate 1.
For the attaching procedure, see Chapter 1
“2-3.Attachingparts”(p.4).
5
Check whether the folding plate 1 is
correctly attached.
Folding plate 2
1
Turn off the power.
Chapter 2 “1-2. Turning off power” (p.17)
2
Remove the folding plate 2.
UsethereverseproceduretoChapter1“Attachingthefoldingplate”(p.4)toperformremoval.
3
Remove the jammed paper.
4
Attach the folding plate 2.
Fortheattachtingprocedure,seeChapter1“2-3. Attachingparts”(p.4).
5
Check whether the folding plate 2 is correctly attached.
