37
Chapter3AdvancedOperation
Copyright © 2018 Duplo Corporation All Rights Reserved

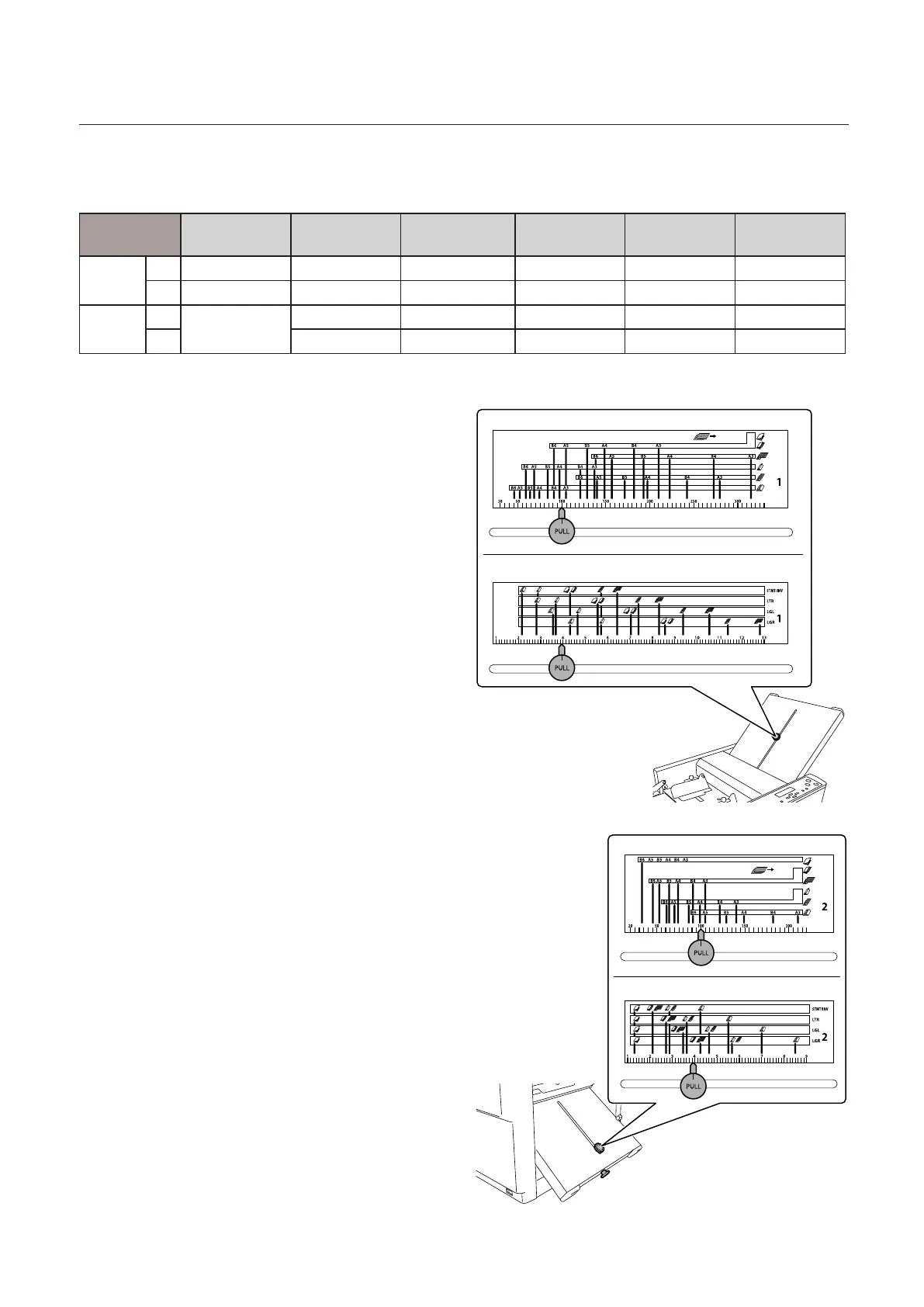

Thefollowingtableshowsacalculationexamplewhenlength300mm/11.81inchespaperisprocessedat
each folding.
See the reference example when performing the calculation.
Single fold Double fold Irregular
accordion fold
Letter fold Accordion
fold
Gate fold
Folding
plate 1
EU 300/2=150 300/2=150 900/4=225 300/3=100 600/3=200 300/4=75
NA 11.81/2=5.905 11.81/2=5.905 35.43/4=8.857 11.81/3=3.937 23.62/3=7.873 11.81/4=2.952
Folding
plate 2
EU — 300/4=75 300/4=75 300/3=100 300/3=100 300/2=150
NA 11.81/4=2.952 11.81/4=2.952 11.81/3=3.937 11.81/3=3.937 11.81/2=5.905
For NA
For EU
1) Whilepullinguptheroughadjustment
knob of the folding plate 1, move it to the
"100"/”3.937”position.
2) Iftheroughadjustmentknobismisaligned
fromthescale,rotatetheneadjustment
knob either right or left, and align the rough
adjustmentknobtothescale.
For NA
For EU
3) Usingthesameprocedureas1)and2),align
theroughadjustmentknobofthefolding
plate2tothe“100”/”3.937”position.
Gotostep5.
