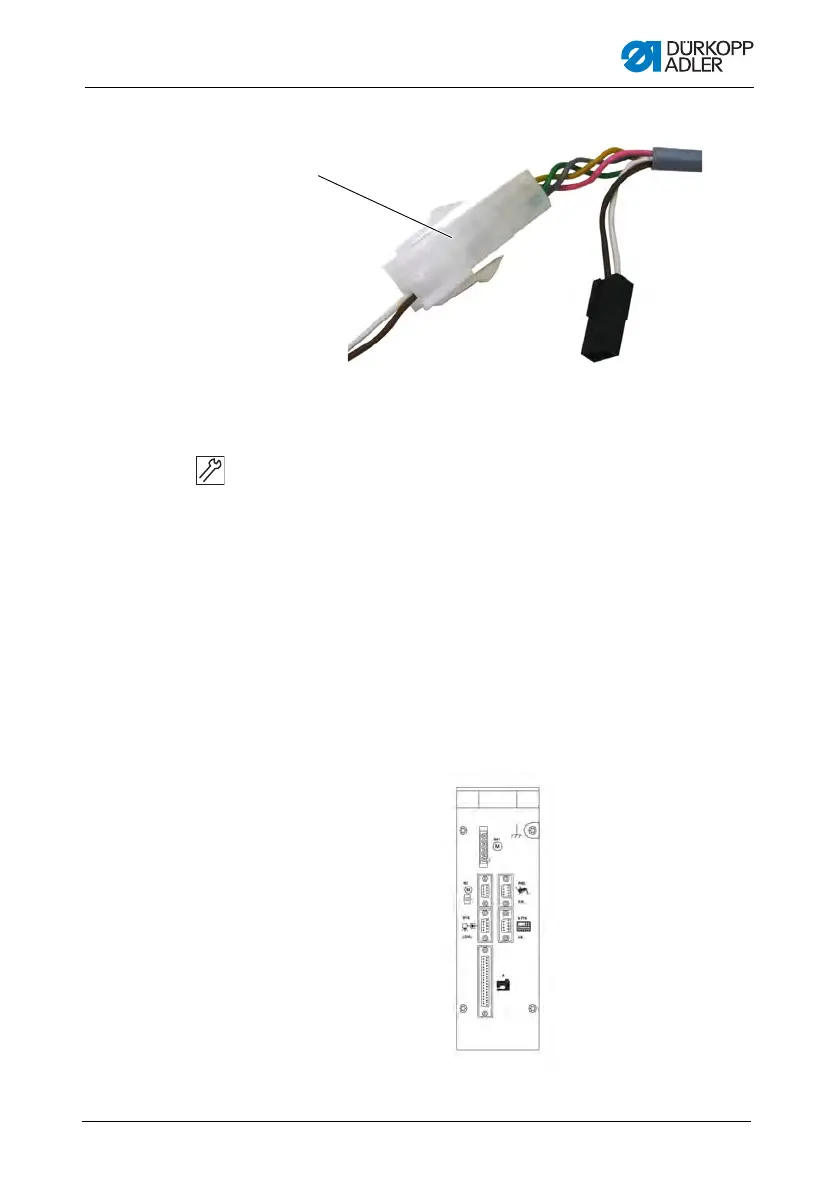

Fig. 55: Connecting the sewing lamp (2)
5. Connect the plug connection (5) of the cable (3) with the cable
of the sewing lamp inside the machine head.
7.9.2 Connecting the control
Connect the control as follows:
• Insert the plug of all cables into the sockets on the back of
the control.
• Connect the equipotential bonding
• Use the power cable to connect the control to the mains
grid.
Fig. 56: Connecting the control
(5) - Plug connection
