Operation
Operating Instructions 967 - 02.0 - 11/2016 29
4.5 Winding the hook thread

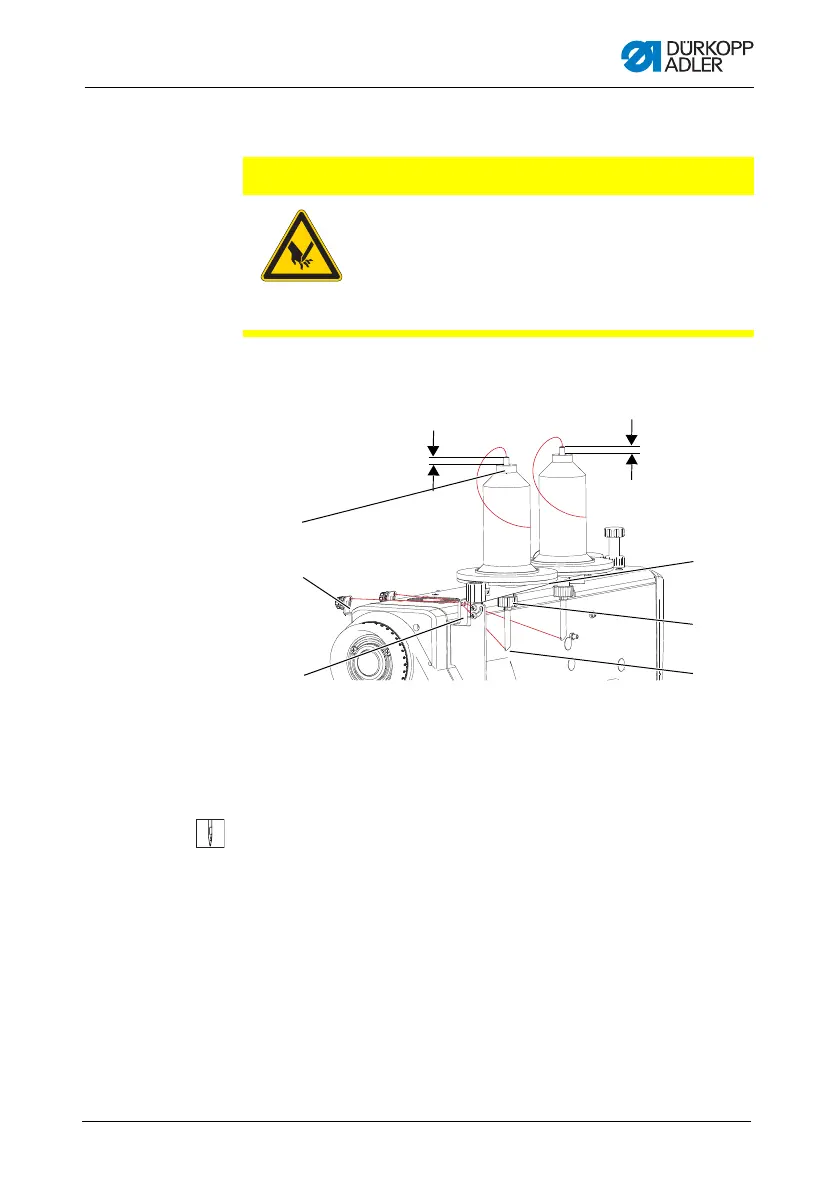

Fig. 9: Winding the hook thread (1)
To wind the hook thread:
1. Fit the thread reel on the reel stand (6).
2. Loosen the nut (5).
3. Set the tube (1) to the height specified above.
4. Turn the tube so that the opening (4) faces the thread guide (3).
5. Tighten the nut (5).
CAUTION
Risk of injury from sharp and moving parts!
Puncture or crushing possible.
Switch off the machine before winding the hook
thread.
Do not reach into the needle tip.
(1) - Tube
(2) - Tensioning plate
(3) - Thread guide
(4) - Hole in the tube
(5) - Nut
(6) - Reel stand
10 - 15 mm
10 - 15 mm
③
④
⑤
⑥
①
②
