Setup
98 Operating Instructions 967 - 02.0 - 11/2016
5. Use a crane to insert the machine head into the tabletop cutout.
6. Connect the pull rod (6) of the tilt mechanism to the pin (7) of
the machine and secure it using the locking washer (8).
Important
Machines with a long arm require that you insert the pull rod (7)
with the torsion spring (9) as shown above.
7. Screw the torsion spring (9) with the clips (10) in place under
the tabletop.
7.8 Assembling the reel stand

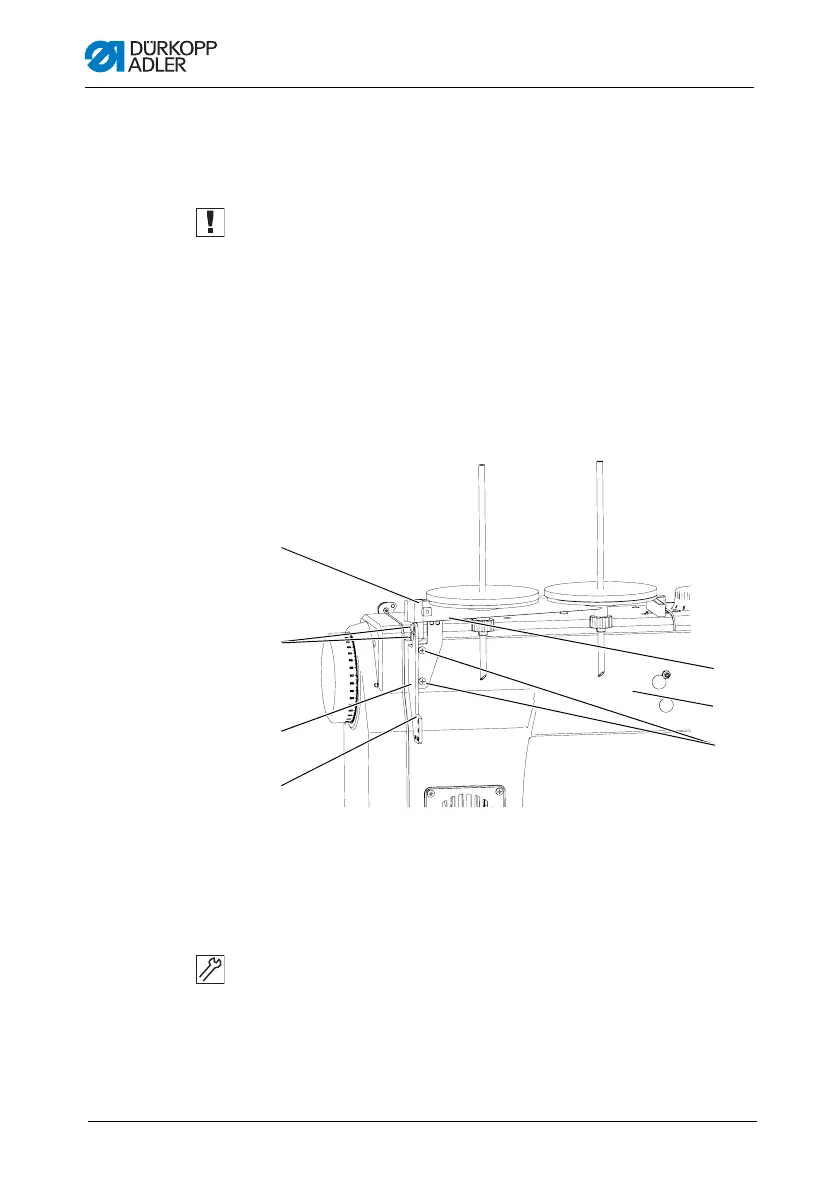

Fig. 53: Assembling the reel stand
To assemble the reel stand:
1. Tighten the reel stand holder (3) to the machine head (6) using
screws (5).
(1) - Upper position
(2) - Screws
(3) - Reel stand holder
(4) - Lower position
(5) - Screws
(6) - Machine head
(7) - Reel stand arm
