Machine description
Operating Instructions 967 - 02.0 - 11/2016 15
3 Machine description
3.1 Components of the machine

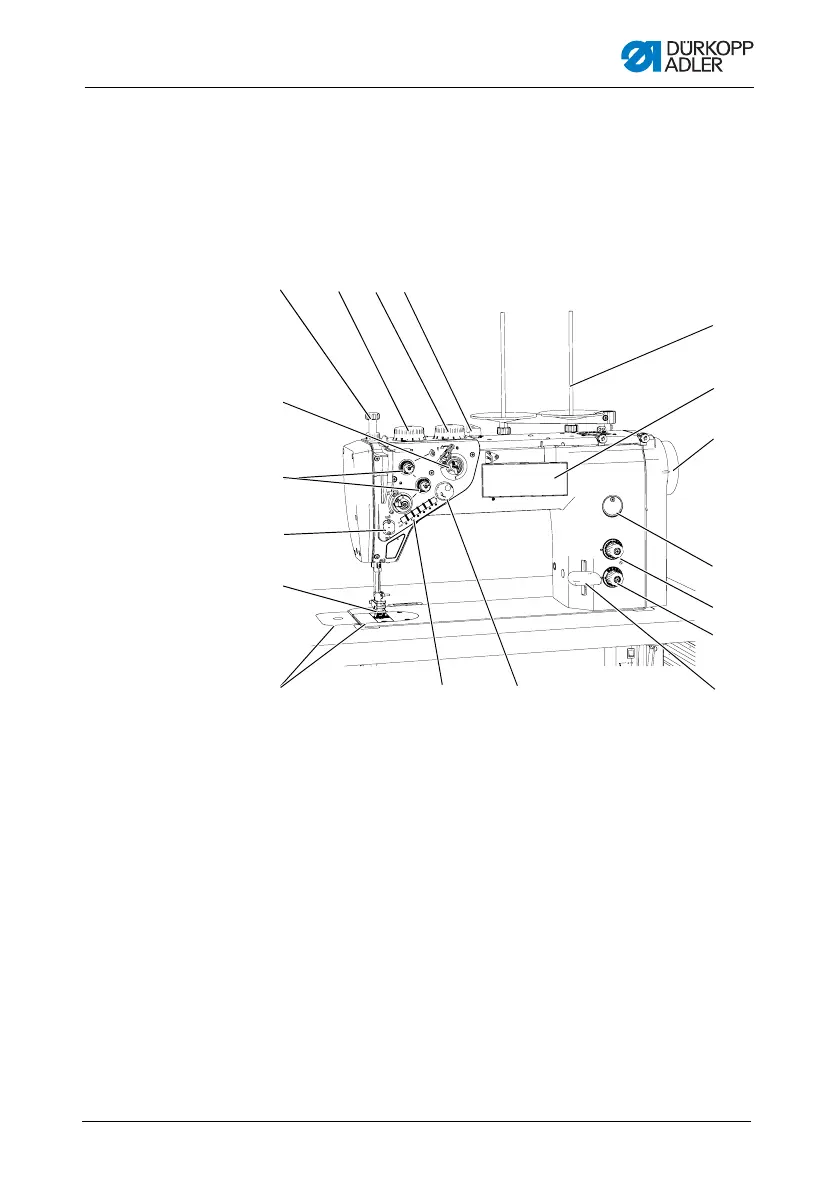

Fig. 1: Components of the machine (1), machines with standard arm
(1) - Hand lever
(2) - Adjusting wheel for elevated
sewing foot stroke*
(3) - Adjusting wheel for normal
sewing foot stroke
(4) - Adjusting wheel for sewing
foot pressure
(5) - Winder
(6) - Thread tensioner
(7) - Thread clamp**
(8) - Sewing feet with needle
(9) - Cover
(10)- Buttons on the machine arm
(11)- Electronic handwheel
(12)- Stitch adjustment lever
(13)- Adjusting wheel for the shorter
stitch length*
(14)- Adjusting wheel for the longer
stitch length*
(15)- Oil level indicator
(16)- Handwheel
(17)- Control panel OP1000
(18)- Reel stand
⑩⑪ ⑫
⑬
⑮
⑯
⑰
⑱
①②③
⑤
⑥
⑦
⑧
⑨
④
⑭
