Setup
Operating Instructions 967 - 02.0 - 11/2016 103
7.10.1 Assembling the compressed air maintenance
unit

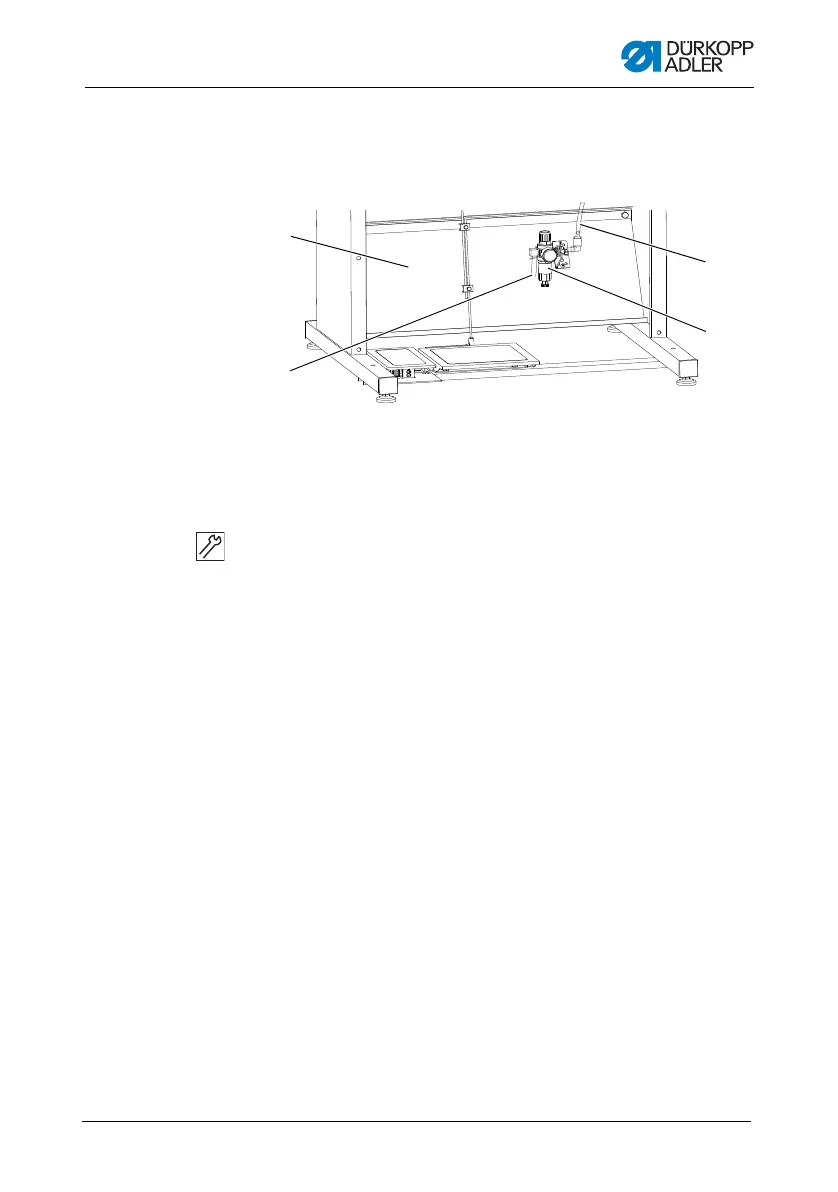

Fig. 57: Assembling the compressed air maintenance unit
To assemble the compressed air maintenance unit:
1. Use a mounting bracket to screw the compressed air main-
tenance unit (3) to the cross member.
2. Connect the connection hose of the machine (4) to the com-
pressed air maintenance unit (3).
3. Connect the connection hose of the compressed air mainte-
nance unit (2) to the compressed air supply using a hose
coupling R 1/4”.
(1) - Cross member
(2) - Connection hose of the
compressed air maintenance unit
(3) - Compressed air maintenance
unit
(4) - Connection hose of the machine
