7.4 Tabletop
Ensure that the tabletop has sufficient load-bearing capacity and
strength. If you want to make your own tabletop, use the dimen-
sions given in the diagram Appendix ( p. 125) as a template.
7.4.1 Completing the tabletop

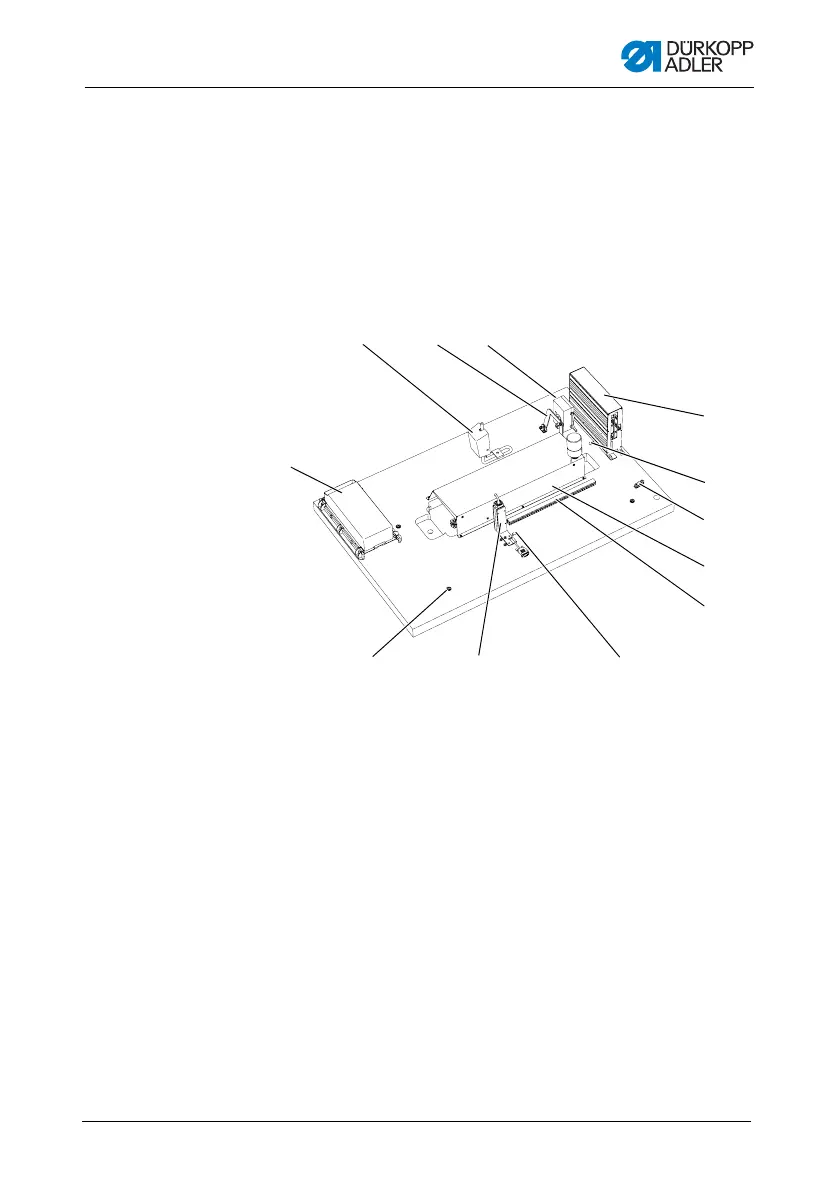

Fig. 46: Completing the tabletop (1), machines with standard arm
(1) - Sewing lamp transformer
(2) - Tilt support
(3) - Knee button
(4) - Drawer
(5) - Hole for the stand
(6) - Setpoint device
(7) - Cable clamp
(8) - Cable duct
(9) - Oil pan
(10)- Strain relief mechanism
(11)- DAC control
