Setup
90 Operating Instructions 967 - 02.0 - 11/2016

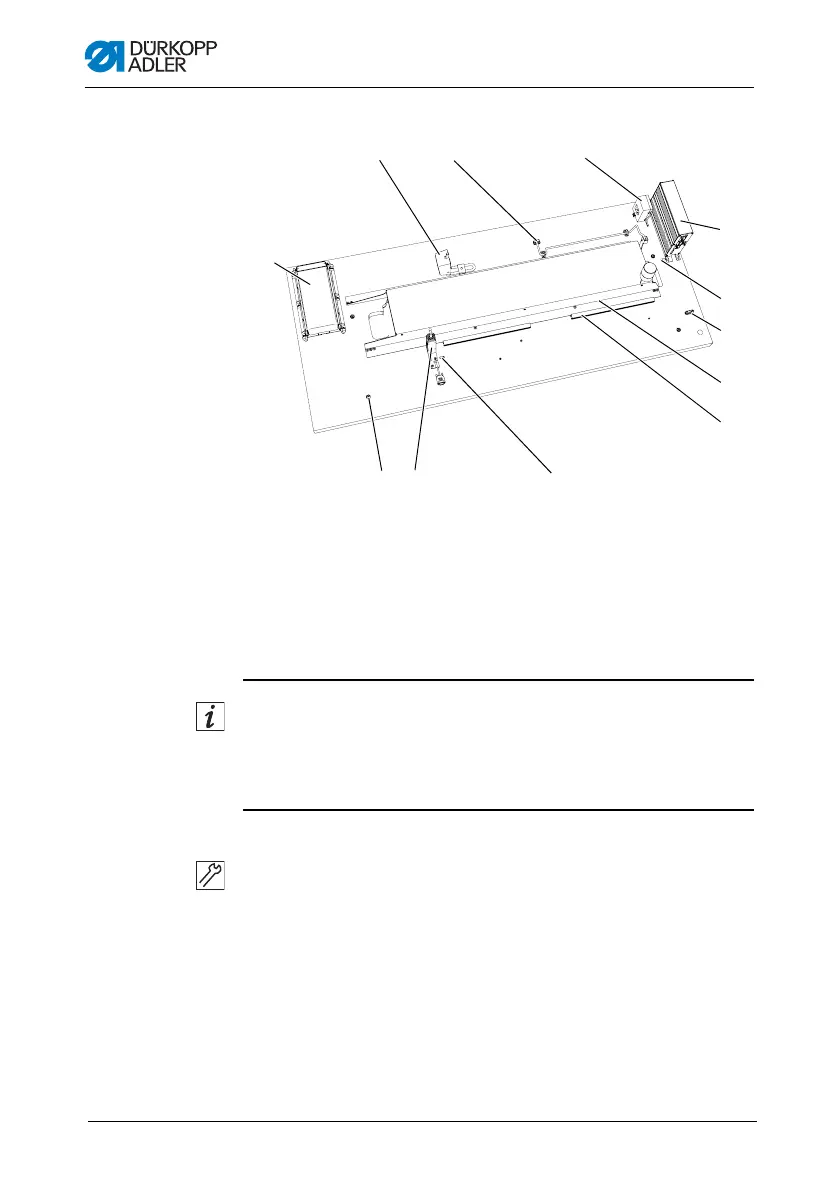

Fig. 47: Completing the tabletop (1), machines with long arm
Information
If the machine is equipped with a sewing lamp, start by connecting
the sewing lamp transformer (1) to the control (11).
The connection terminal strip is only accessible when removed.
To complete the tabletop:
1. Turn the tabletop over so the underside is facing up.
2. Assemble all components to the underside of the tabletop as
shown above.
3. Assemble the connecting cable with strain relief mechanism (10)
to the tabletop.
4. Assemble loose cables (7) to the tabletop using cable clamps.
5. Drill the holes for the stand (5) as provided in the drawing.
(1) - Sewing lamp transformer
(2) - Tilt support
(3) - Knee button
(4) - Drawer
(5) - Hole for the stand
(6) - Setpoint device
(7) - Cable clamp
(8) - Cable duct
(9) - Oil pan
(10)- Strain relief mechanism
(11)- DAC control
