Setup
Operating Instructions 967 - 02.0 - 11/2016 91
7.4.2 Assembling the tabletop

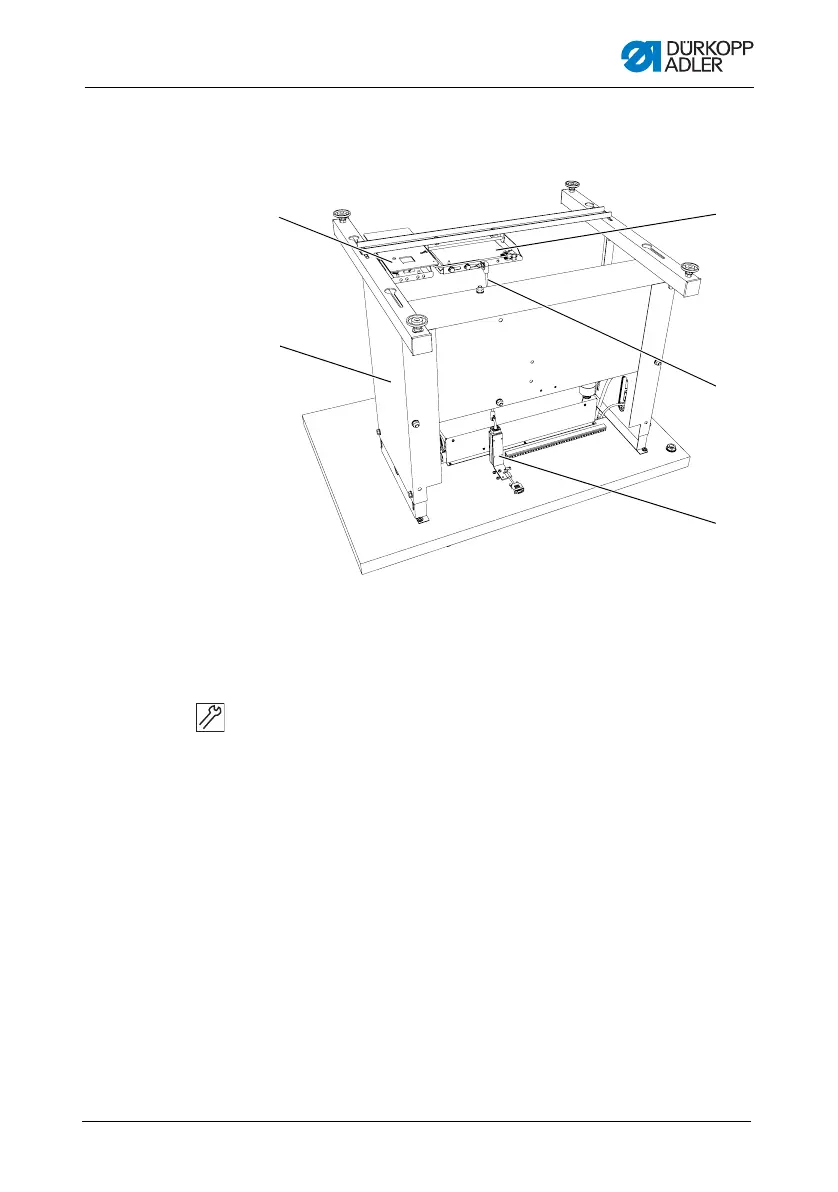

Fig. 48: Assembling the tabletop
To assemble the tabletop:
1. Place the stand (2) on the tabletop as shown above.
2. Screw the stand (2) into the previously drilled holes.
3. Screw the foot button (1) in as close to the left bar of the
stand’s cross member as possible.
4. Press the lugs at the end of the pull rod (4) onto the round pin
of the setpoint device (3) and the pedal (5).
5. Screw on the pedal (5).
(1) - Foot button
(2) - Stand
(3) - Setpoint device
(4) - Pull rod
(5) - Pedal
