Setup
88 Operating Instructions 967 - 02.0 - 11/2016
7.3 Assembling the stand

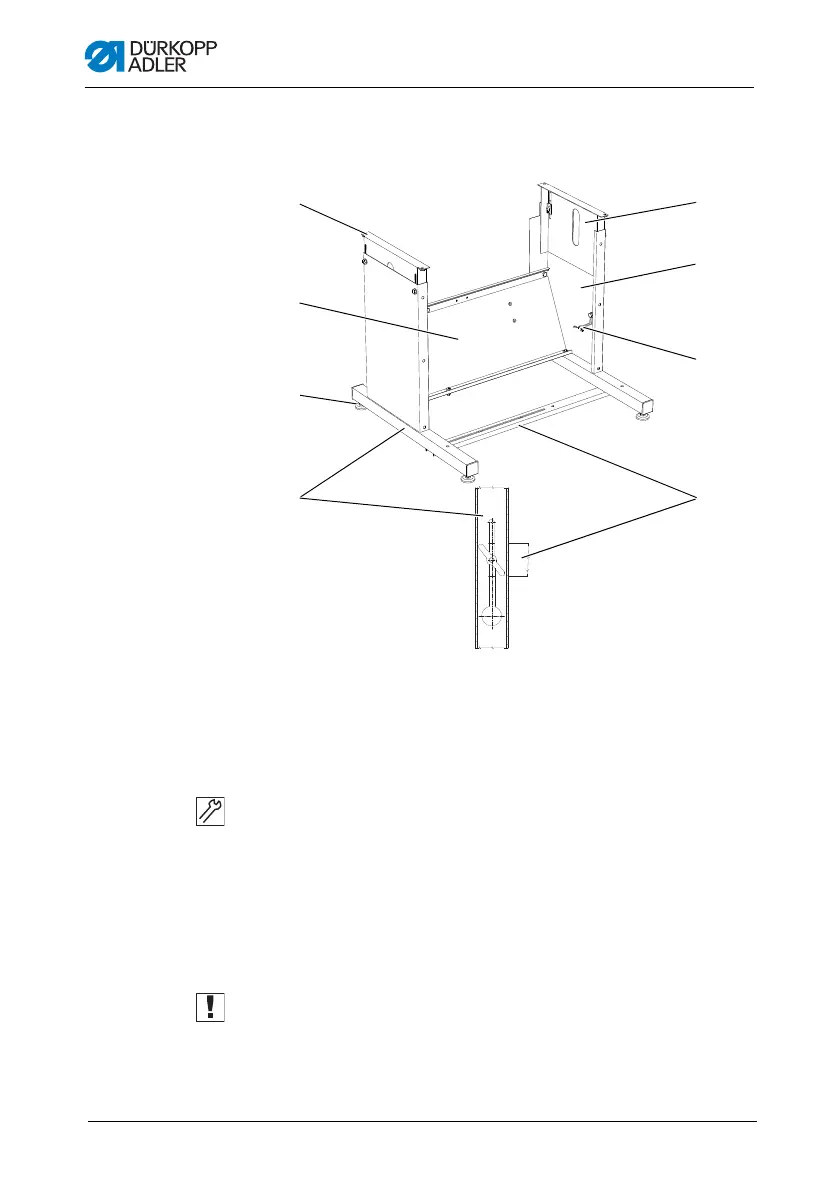

Fig. 45: Assembling the stand
To assemble the stand:
1. Screw the cross member (2) to the stand bars (7).
2. Screw the oil can holder (6) to the stand bar (7).
3. Screw the cross strut (5) to the foot strut (4).
4. Tighten the inner bar (8) to the stand bar (7) so that the head
sections (1) are at the same height.
Important
Turn the feet (3) so that the stand has even contact with the ground.
(1) - Head section
(2) - Cross member
(3) - Foot
(4) - Foot strut
(5) - Cross strut
(6) - Oil can holder
(7) - Stand bar
(8) - Inner bar
