Operation
Operating Instructions 967 - 02.0 - 11/2016 25
4.4 Threading the needle thread
Feeding the needle thread from the thread reel to the machine

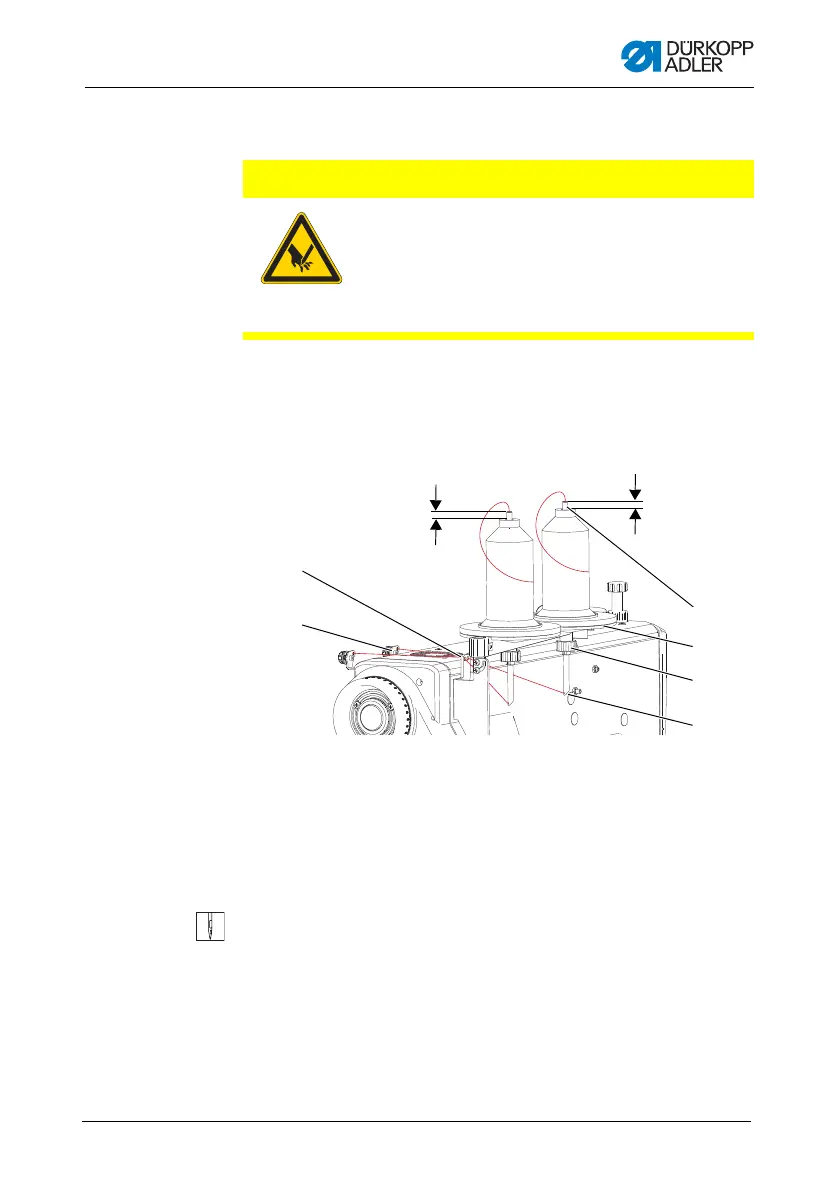

Fig. 6: Feeding the needle thread from the thread reel to the machine
In all machines the thread from the thread reel is fed to the machine
via the real stand.
To thread the needle thread:
1. Switch off the machine.
2. Fit the thread reel on the reel stand (5).
3. Loosen the nut (4).
4. Set the tube (6) to the height specified above.
CAUTION
Risk of injury from sharp and moving parts!
Puncture or crushing possible.
Switch off the machine before threading the
needle thread.
Do not reach into the needle tip.
(1) - Thread guide
(2) - Pre-tensioner
(3) - Hole in the tube
(4) - Nut
(5) - Reel stand
(6) - Tube
10 - 15 mm
10 - 15 mm
③
④
⑤
⑥
①
②
