Operation
30 Operating Instructions 967 - 02.0 - 11/2016
6. Feed the hook thread to the tensioning plate (2) by inserting
it through the tube (1), the opening (4) and the thread guide (3).

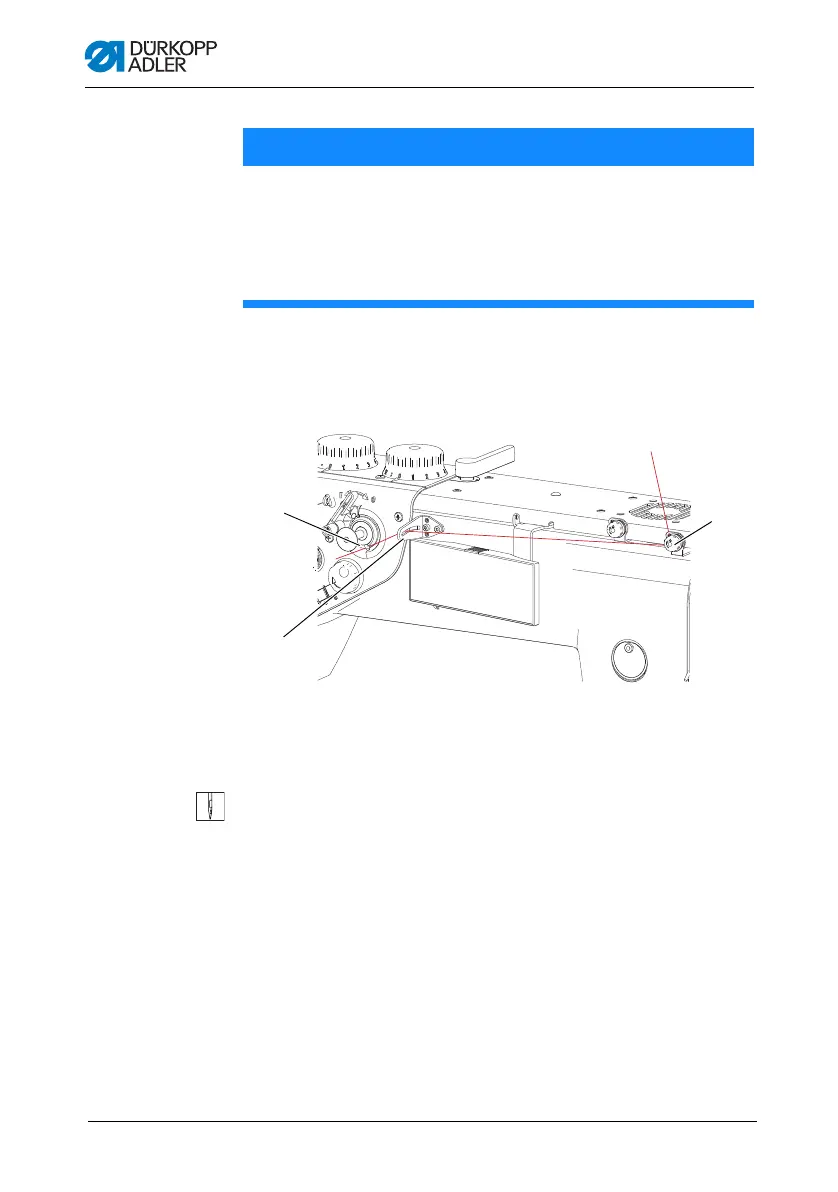

Fig. 10: Winding the hook thread (2)
7. Feed the hook thread clockwise through the thread tension
plate (9).
8. Feed the hook thread through thread guide (8).
9. Clamp the hook thread under the thread-pulling knife (7) and
tear off the protruding remaining thread.
NOTICE
Property damage may occur!
An incorrect tube height setting may lead to tension deviations
as a result of the thread becoming caught or jammed.
The hook thread is wound on unevenly.
Set the height of the tube as specified above.
(7) - Thread-pulling knife
(8) - Thread guide
(9) - Thread tension plate
