Setup
Operating Instructions 967 - 02.0 - 11/2016
93

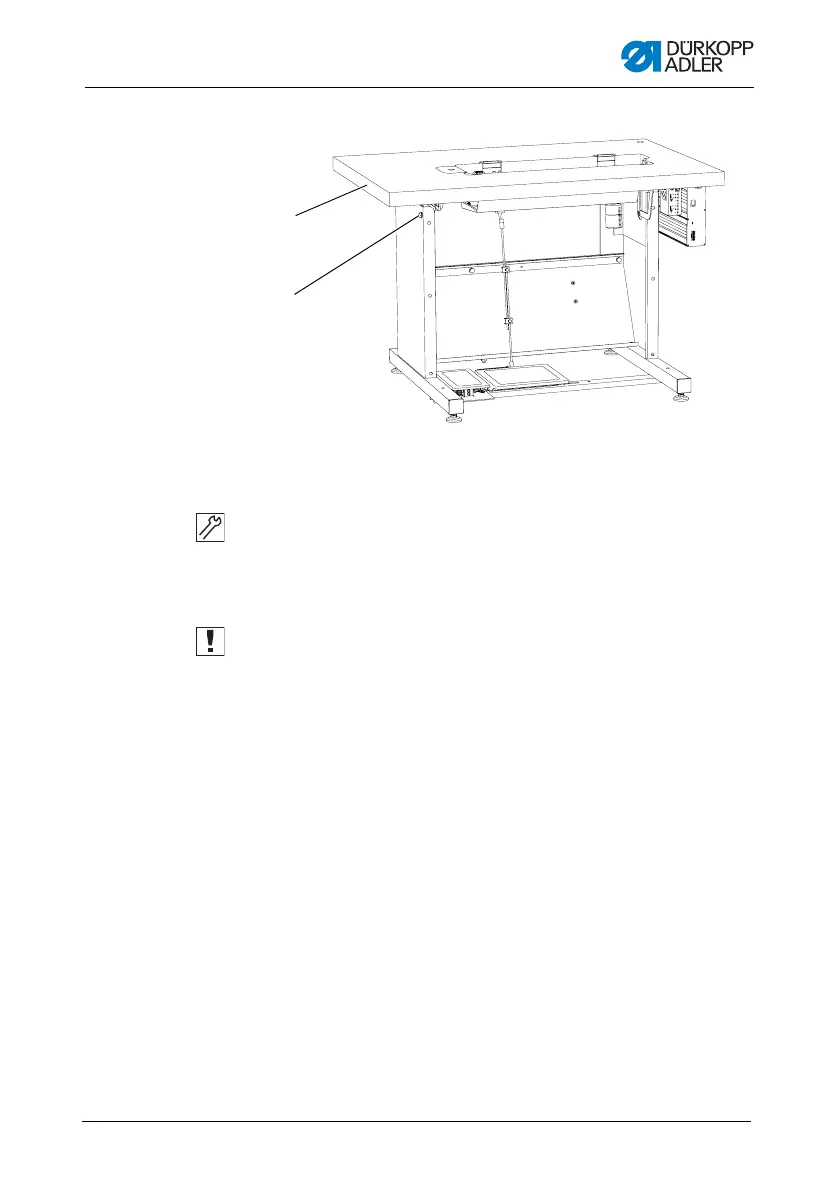

Fig. 49: Setting the working height
To set the working height:
1.
Loosen the screws (2) on both
sides of the stand.
2.
Set the tabletop (1) to the desired height.
Import
ant
Ensure that the tabletop is level.
3.
T
ighten the screws
(
2).
(1)
- Tablet
op
(2)
- Screw
①
②
94
96
Table of Contents
Default Chapter
3
Table of Contents
3
1 About These Instructions
7
For Whom Are These Instructions Intended
7
Representation Conventions - Symbols and Characters
8
Other Documents
9
Liability
10
2 Safety
11
Basic Safety Instructions
11
Signal Words and Symbols Used in Warnings
12
3 Machine Description
17
Components of the Machine
17
Proper Use
20
Declaration of Conformity
21
4 Operation
23
Preparing the Machine for Operation
23
Switching on and off the Machine
24
Inserting/Changing the Needle
25
Threading the Needle Thread
27
Winding the Hook Thread
31
Changing the Bobbin
34
Thread Tension
36
Setting the Needle Thread Tension
37
Setting the Hook Thread Tension
40
Setting the Needle Thread Regulator
42
Positioning the Needle
43
Positioning the Needle Manually
43
Positioning the Needle Semi-Automatically
45
Positioning the Needle Automatically
46
Sewing Feet
47
Lifting the Sewing Feet Electropneumatically
48
Lifting the Sewing Feet Manually
49
Setting the Sewing Foot Pressure
50
Setting the Sewing Foot Stroke
52
Activating Quick Stroke Adjustment Via the Knee Button
54
Stitch Length
55
Setting the Stitch Length
56
Sewing with 2 Stitch Lengths
57
Reverse Sewing and Bar Tacking
58
Quick Functions on the Push Buttons
61
Quick Functions on the Push Buttons (Classic)
61
Quick Functions on the Push Buttons (Eco)
63
Transferring a Button Function to the Favorite Button (Classic Only)
64
Thread Cutting and Seam Securement
65
Cutting off the Thread
65
Seam Securement
67
Sewing Speed
67
Thread Clamp (Optional)
68
Needle Cooling (Optional)
69
Sewing
70
5 Programming
73
6 Maintenance
79
Cleaning
80
Lubricating
82
Servicing the Pneumatic System
84
Setting the Operating Pressure
84
Draining the Water Condensation
86
Cleaning the Filter Element
87
Parts List
88
7 Setup
89
Checking the Scope of Delivery
89
Removing the Transport Locks
89
Assembling the Stand
90
Tabletop
91
Completing the Tabletop
91
Assembling the Tabletop
93
Setting the Working Height
94
Setting the Pedal
96
Inserting the Machine Head
97
Assembling the Reel Stand
100
Electrical Connection
101
Connecting the Sewing Lamp
102
Connecting the Control
103
Pneumatic Connection
104
Assembling the Compressed Air Maintenance Unit
105
Setting the Operating Pressure
106
Checking the Lubrication
107
Performing a Test Run
107
8 Decommissioning
109
9 Disposal
111
10 Troubleshooting
113
Customer Service
113
Messages of the Software
114
Information Messages
114
Error Messages
119
Errors in Sewing Process
123
11 Technical Data
