5 Function blocks
5.17 HY - Year Time Switch
208 Control Relay easy800 11/11 MN04902001Z-EN www.eaton.com
Example 5: Specific days of specific months (1-channel)
The year time switch HY05 is required to switch on at 0:00 on day 9 of
months 6, 7, 8, 9 and 10 of each year and switch off at 00:00 on day 17 of the
month.

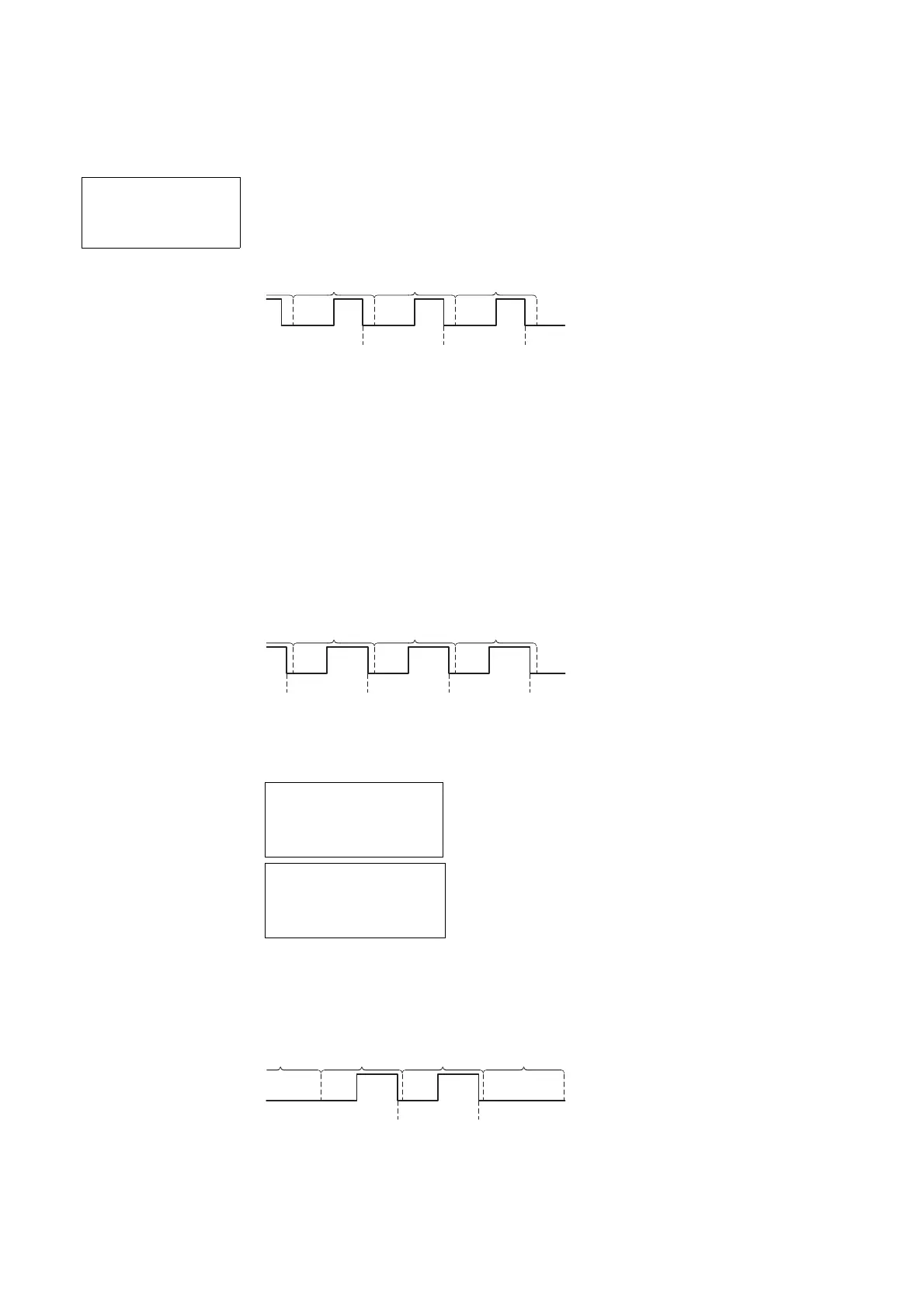

Figure 145:Chose specific days of specific months
Configuring the parameters for continuous periods of time
The following examples show how to configure the parameters for
continuous periods of time in which the time switch remains continuously
switched on. The parameter definition is carried out in pairs on two adjacent
channels.
Example 6: Time range for each year (2-channel)
The year time switch HY01 is required to switch on at 00:00 on day 02.05 of
each year and stay on continuously until 00:00 on 1.11 of each year,
“Open air season”.
Figure 146:Select time range for each year
Parameter settings of the year time switch HY01:
ON/OFF: First/last switch-on years are not restricted
in this case.
ON/OFF: First/last switch-off years are not restricted
in this case.
Example 7: Selecting a time range for a limited number of years
(2-channel)
The HY01 year time switch should switch on at 00:00, on 05/02, in the years
2011 and 2012, and remain switched on until 00:00 on 11/1 in each case.
Figure 147:Select a time range for a limited number of years
