3 Commissioning
3.4 Status display
74 Control Relay easy800 11/11 MN04902001Z-EN www.eaton.com
Status display additional information
Depending on the additional parameters set (e.g. retentive operands) or the
connected peripheral devices (e.g. when running as an Net station) the
system information listed below is also shown in the status display.
How to show the status display of other NET stations is described in
￫ Section “Showing the status display of other NET stations“, Page 97)
3.4.1 Choosing the main and system menu
You can move to several submenus starting from the Status display. The
complete menu structure is shown in
Only the menus of the first menu level are shown as an overview: the main
menu and the system menu. The device menu is not important for operation

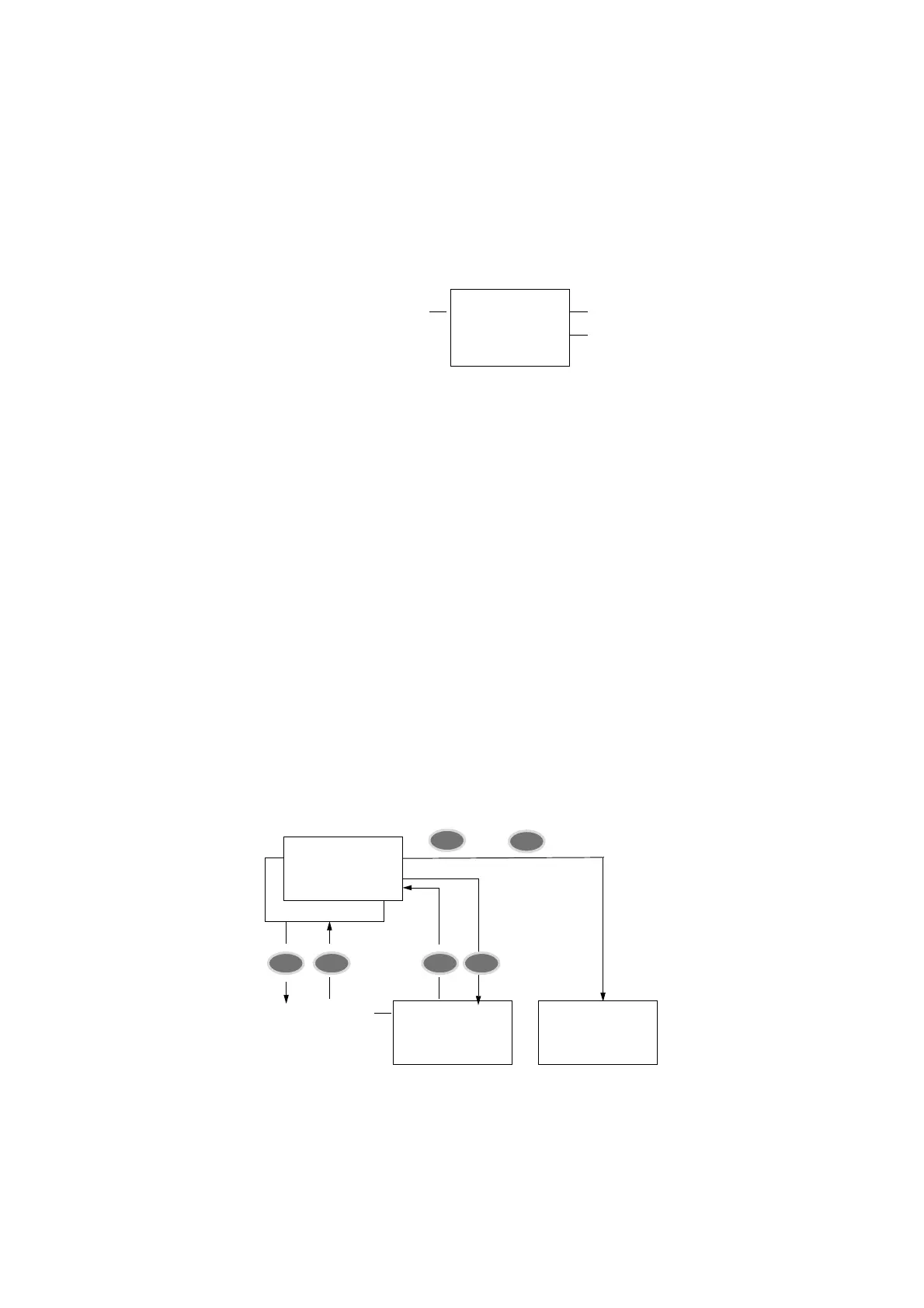

Figure 67:Entering the main or system menu
Retention/debounce/
NET station
AC expansion OK/P buttons off
Start behavior
System Information
RE
: Retention active or RS: Local expansion station operating correctly
I
: Debounce switched on
NT1
: NET stations with Net-ID (1 this case)
AC
: AC expansion functioning correctly or
DC
: DC expansion functioning correctly
GW
: Expansion of part no. Gateway detected, that is used for communication between other bus systems
or for processing analog values and temperatures.
GW flashes: Only EASY200-EASY, but no connected I/O expansion.
ST
: When the power supply is switched on, the easy800 switches to STOP operating mode
