2 Installation
2.1 Mounting 800
Control Relay easy800 11/11 MN04902001Z-EN www.eaton.com 21

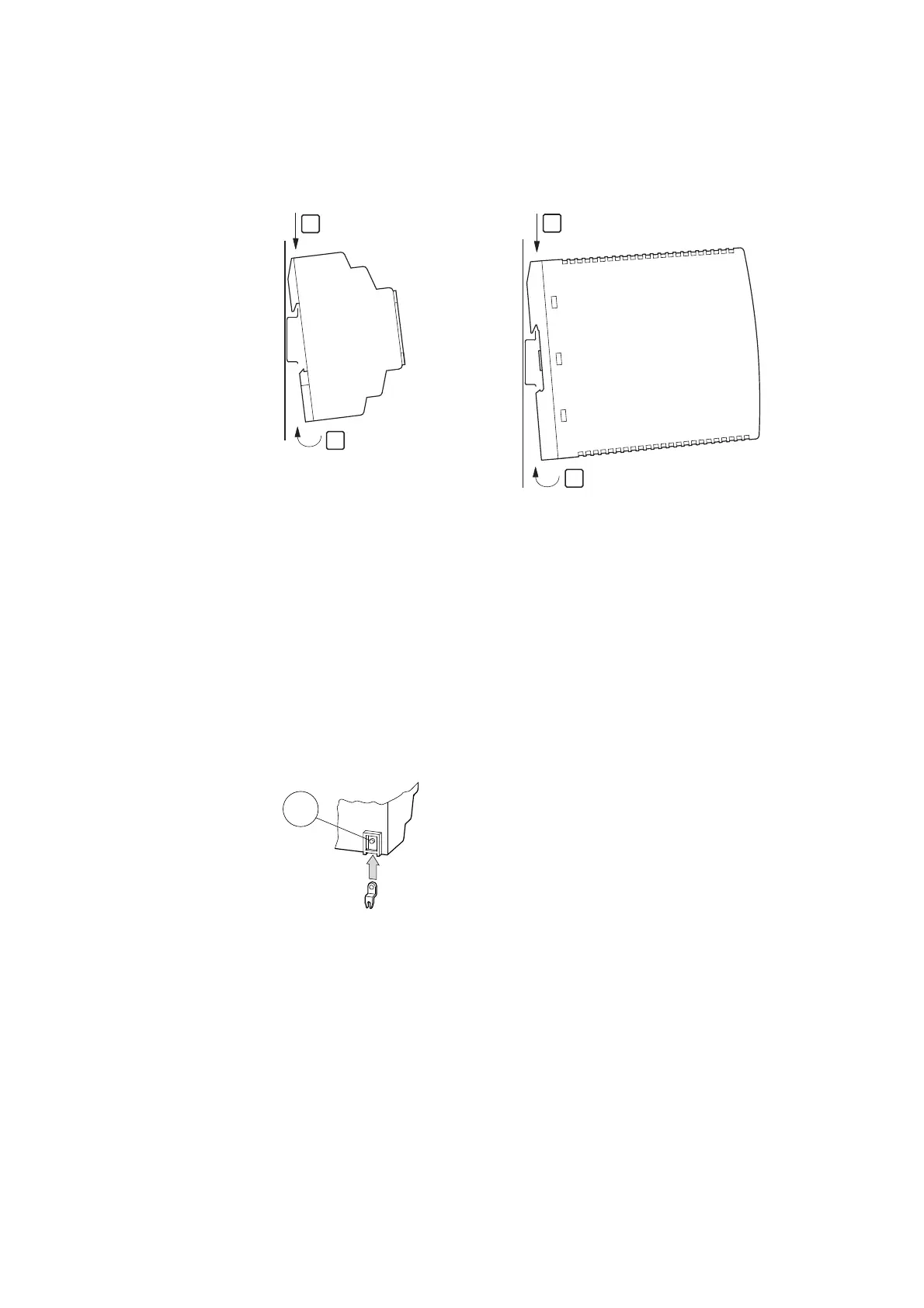

800 mounting on a top-hat rail
▶ Place the easy800 device diagonally on the upper lip of the top-hat rail.
Press down lightly on both the device and the top-hat rail until the unit
snaps over the lower edge of the top-hat rail.
The easy800 device will clip into place automatically.
▶ Check that the device is seated firmly.
The device is mounted vertically on a top-hat rail in the same way.
800 screw fixing
Fixing brackets that can be inserted on the rear of the easy800 device are
required for screw fixing. The fixing brackets are available as an accessory.
Figure 7: Inserting a fixing bracket
Figure 5: easy800 standard Figure 6: easy800-SWD
￫
Three fixing brackets are sufficient for a device with four fixing
points.
