4.2.1.4 Viewing the power usage
Click on Power usage scroll list to view the information about the consumptions.
• Average power usage: indicates the average consumption on the last hour of each output. The sum of
these 3 consumptions is also given.
• Cumulative power usage: indicates the consumption cumulated of each output since the last reset. The
sum of these 3 consumptions is also given.
Note: The consumptions are only available with UPS Eaton 5PX, 5P, 9PX and 9SX. The consumption of each
output is only available with UPS Eaton 5PX.

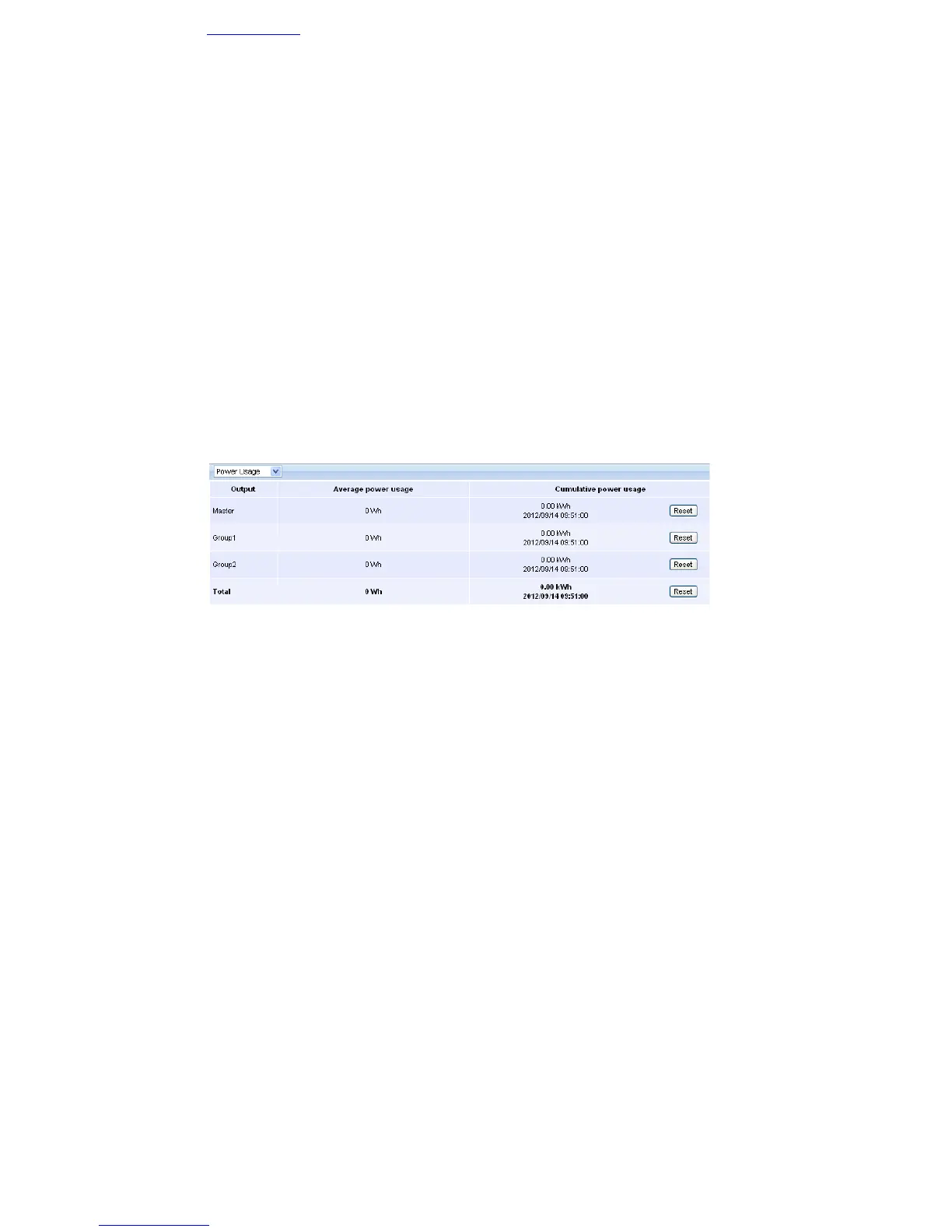

The displaying is the following :
