4.2.7 Measurements
Click on "Measurements" in the menu

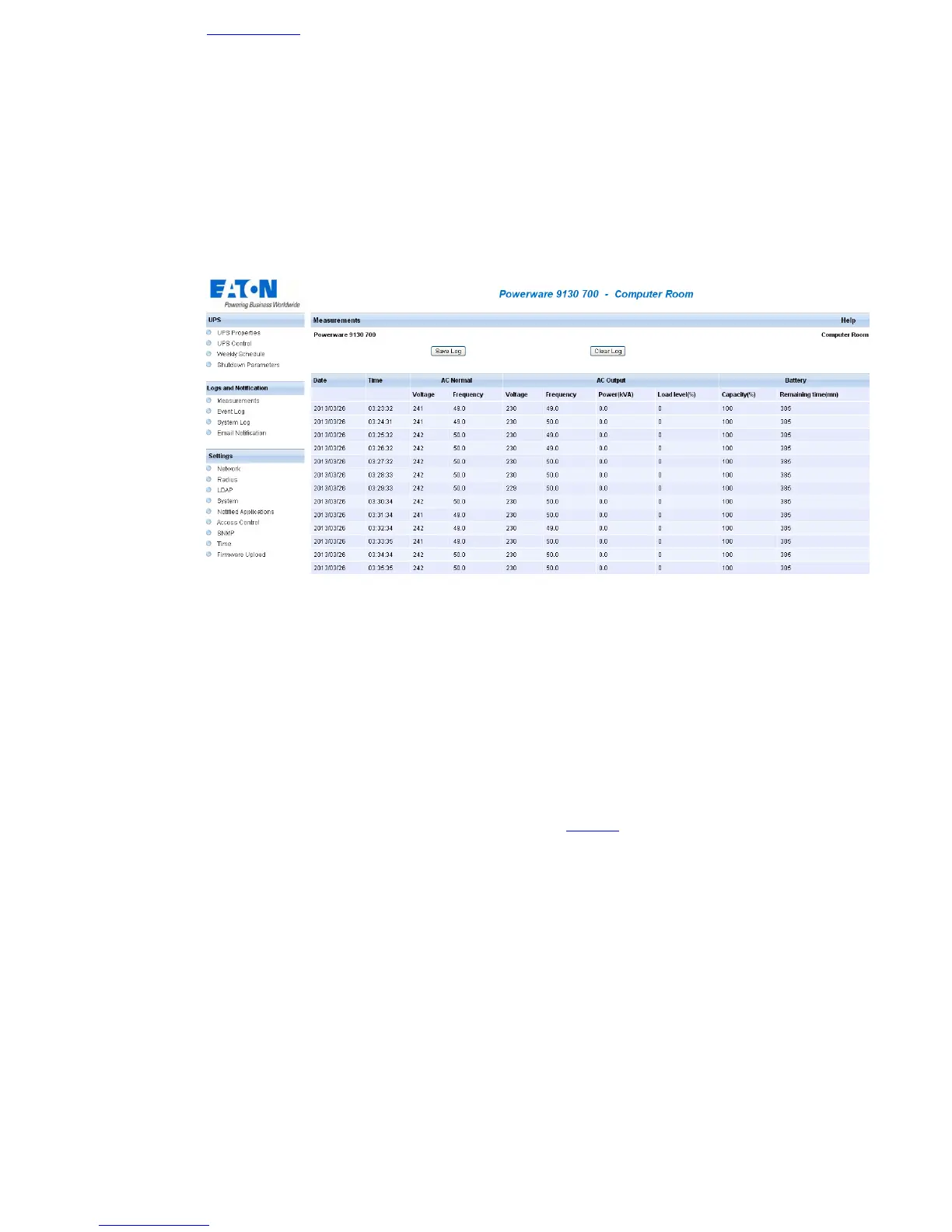

• The next window shows the measurements for a single phase UPS.
The following measurements are saved and time-stamped (About. 430):
• AC Normal : Voltage: Value of the utility voltage supplying the UPS
• AC Normal : Frequency: Value of the utility frequency supplying the UPS
• AC Output : Voltage: Value of the output voltage of your UPS
• AC Output : Frequency: Value of the output frequency of your UPS
• AC Output : Power (kVA): Value of the output power of your UPS
• AC Output : Load level (%): Value of the percentage of load at UPS output
• Battery : Capacity (%): Percentage of charge available in the battery
• Battery : Remaining time (mn): Estimation of the remaining backup time
• The save frequency of these values is defined in the "System" page (60 seconds by default).
Approximately 435 time-stamps are stored permanently on the card. The oldest time-stamps are
automatically deleted.
• Save Log enables all saved values to be opened or saved in CSV format. (compatible with Excel type
spread sheets)
• Clear Log enables deletion of all records. Enter the login/password to validate this action.
