ECKELMANN CI 3000 - 2 System Design of CI 3000

System Design of CI 3000
7
Version 2.09 09. April 2014

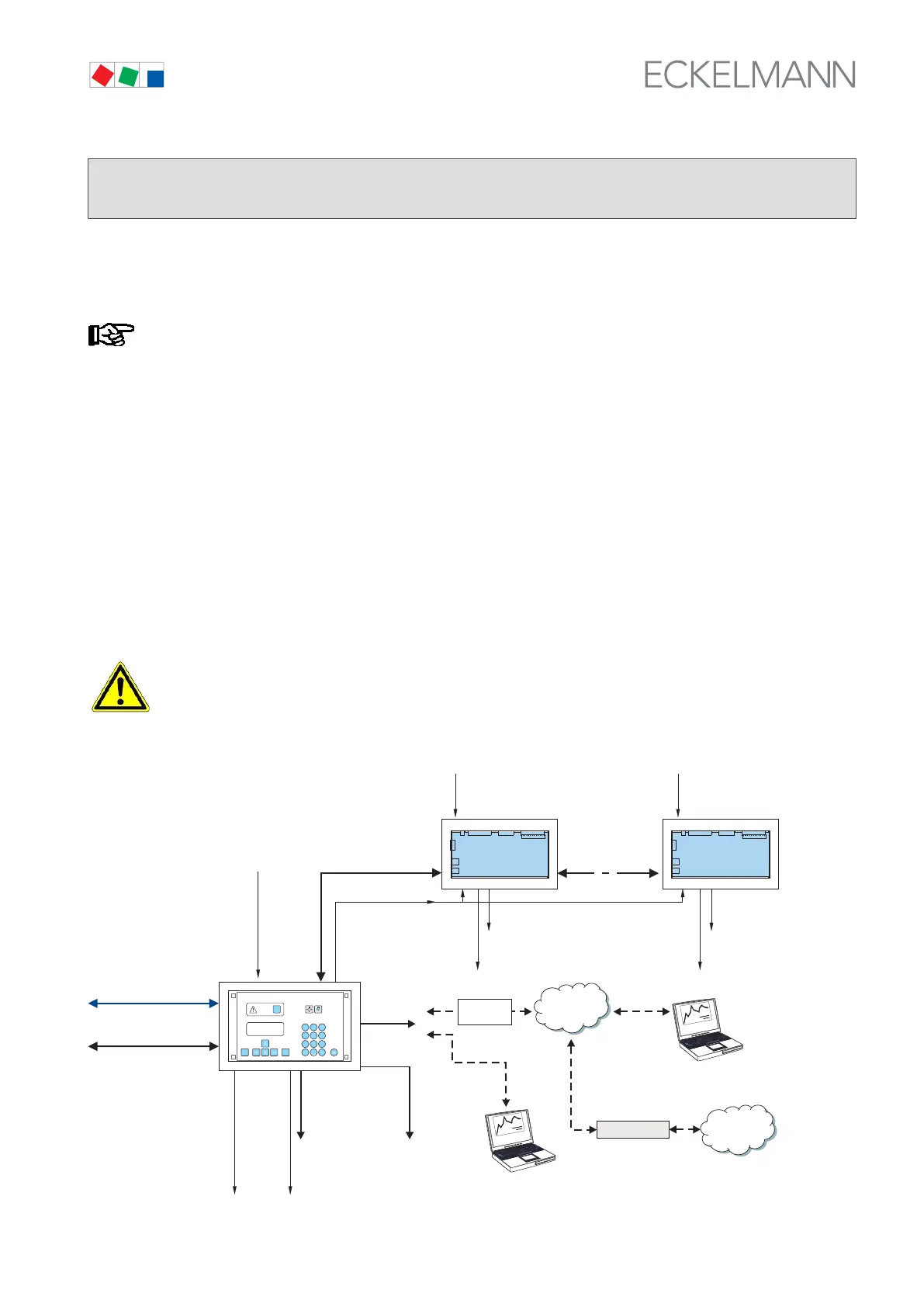

2 System Design of CI 3000
All the details of the ”CI 3000 Store Computer” described in this document always refer to the
”CI 3100 Store Computer” as well. Any differences in function or features between these two control
components are only explained where they have an effect.
The main features distinguishing the two variants:
The CI 3100 has a third interface (COM3), see Section 2.1.
The CI 3000 Store Computer is the central unit of the LDS System.It can be operated via the integrated key
board, the operator terminal of the AL 300 and/or remotely via a host system, i.e. on-site service PC with
LDSWin software.
A maximum of 4 SIOX Extension Modules (serial input-output extension) can be connected to provide an addi
tional 32 digital outputs and 48 digital inputs.
Depending on the expansion level, the CI 3000 Store Computer has 2 MB, 6 MB or 16 MB of memory.
(The CI 3100 is only available with 6 and 16 MB memory expansions)
It is designed to install in a control panel.
The CI 3000 store computer is not equipped with a direct interface to the LDS1 system (VS 1000 /
VS 2000 and CI 320 / CI 322)! For the integration of LDS1 case controllers LDS1 gateways are re
quired. For more details see the ”LDS1 Gateway” operating instruction.
Data interface to
external central
building control
system (BCS)
Wählnetz
oder
Telephone
network
Web-Server
Remote PC /
Host system
Wählnetz
oder
Internet
Internet
2 x digital inputs for
external alarms or meters
230 V AC
3 x digital outputs
two-way contacts,
floating,
e.g. alarm device
1 x switch for
possible external circuit
MODEESC
PRIO 1
PRIO 2
,
9
WXYZ
7
PQRS
8
TUV
6
MNO
4
GHI
5
JKL
3
DEF
2
ABC
1
0
ALARM
RESET
CI 3000
LDSWin
COM1
Modem/
Serial
MODEM
or
LDS Components
via CAN bus
ZNR. 51203 67 130 E3
2 x digital inputs
230 V AC or 24 V AC or
24 V DC S0 (meters)
SIOX
IN
SIOX
IN
SIOX Supply
1st Extension
Module SIOX
4th .Extension
Module SIOX
SIOX
OUT
Up to 4
Extension
Modules
SIOX
2 x digital inputs
230 V AC or 24 V AC or
24 V DC S0 (meters)
24 V DC
power supply for S0
24 V DC
power supply for S0
Digital outputs
4 x two-way contacts
4 x normal open contacts
Digital outputs
4 x two-way contacts
4 x normal open contacts
Service-PC
LDSWin
COM3
()CI 3100 only
RS485
UA 30
LDS1-Gateways
COM2
RS232
Modbus
UA 30
M-Bus
LDS1-Gateways
RS485/
