Pin and Terminal Assignments of CI 3000 / SIOX
63
Version 2.09 09. April 2014

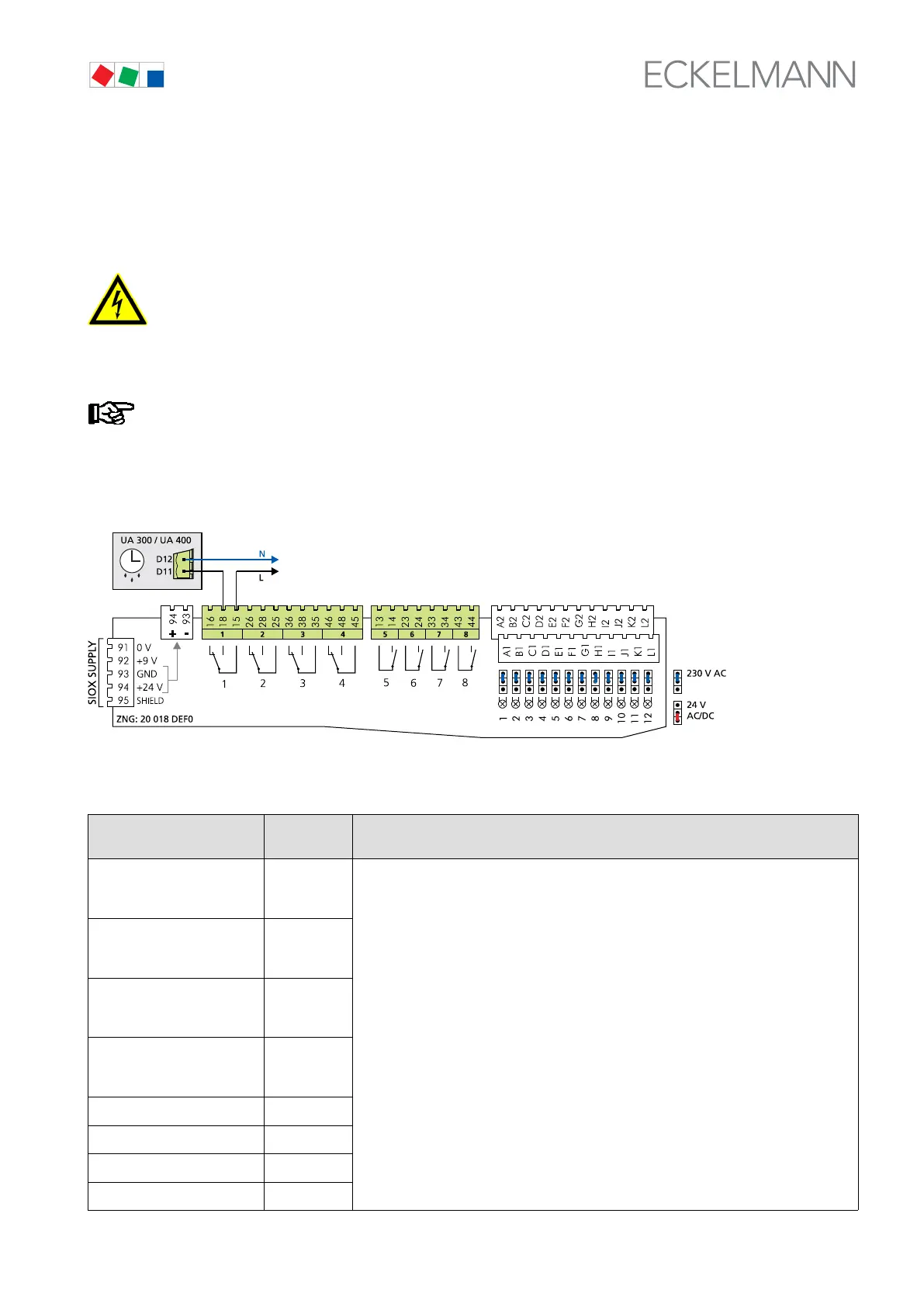

6.2.2 SIOX - Terminal assignment for 230 V AC relay outputs
For week timers (e.g. for defrosting, lighting, car park lighting) or for energy management (e.g. load shedding or
the enabling of consumers).
Warning - hazardous electrical voltage!
Danger of electric shock! BEFORE and AFTER connection it must checked
that the 230 V AC relay outputs are off load!
Low voltage and safety extra-low voltage must not be applied together at the relay outputs.
In order to fuse the cable and relay outputs a circuit breaker with the following parameters is recom
mended for each relay output:
- Nominal current at 230 V AC: 6 A
- Tripping characteristic (type): B
Note: In the example input 1 of the SIOX extension module is used as a defrost timer for a case controller.
Terminal No. Relay
output
Function
15 (common)
16 (N.C.)
18 (N.O.)
1
Timers (e.g. for defrosting, lighting, park lighting)
or
for load shedding
25 (common)
26 (N.C.)
28 (N.O.)
2
35 (common)
36 (N.C.)
38 (N.O.)
3
45 (common)
46 (N.C.)
48 (N.O.)
4
53, 54 (N.O.) 5
63, 64 (N.O.) 6
73, 74 (N.O.) 7
83, 84 (N.O.) 8
